Lock lb/kg
• This feature allows the user to lock and/or unlock the unit of weight measurement as well as select the default
scale units (lb or kg).
• When the Lock menu item is selected, the unit of measure will be locked and the current unit of measure will
be displayed.
• When cancel/exit is pressed the menu will return to the Maintenance Menu Screen.
• The default setting is Unlocked.
To lock/unlock the Scale Units:
1. In the Maintenance Menu select the Scale Units item then press and hold the Enter/Check button.

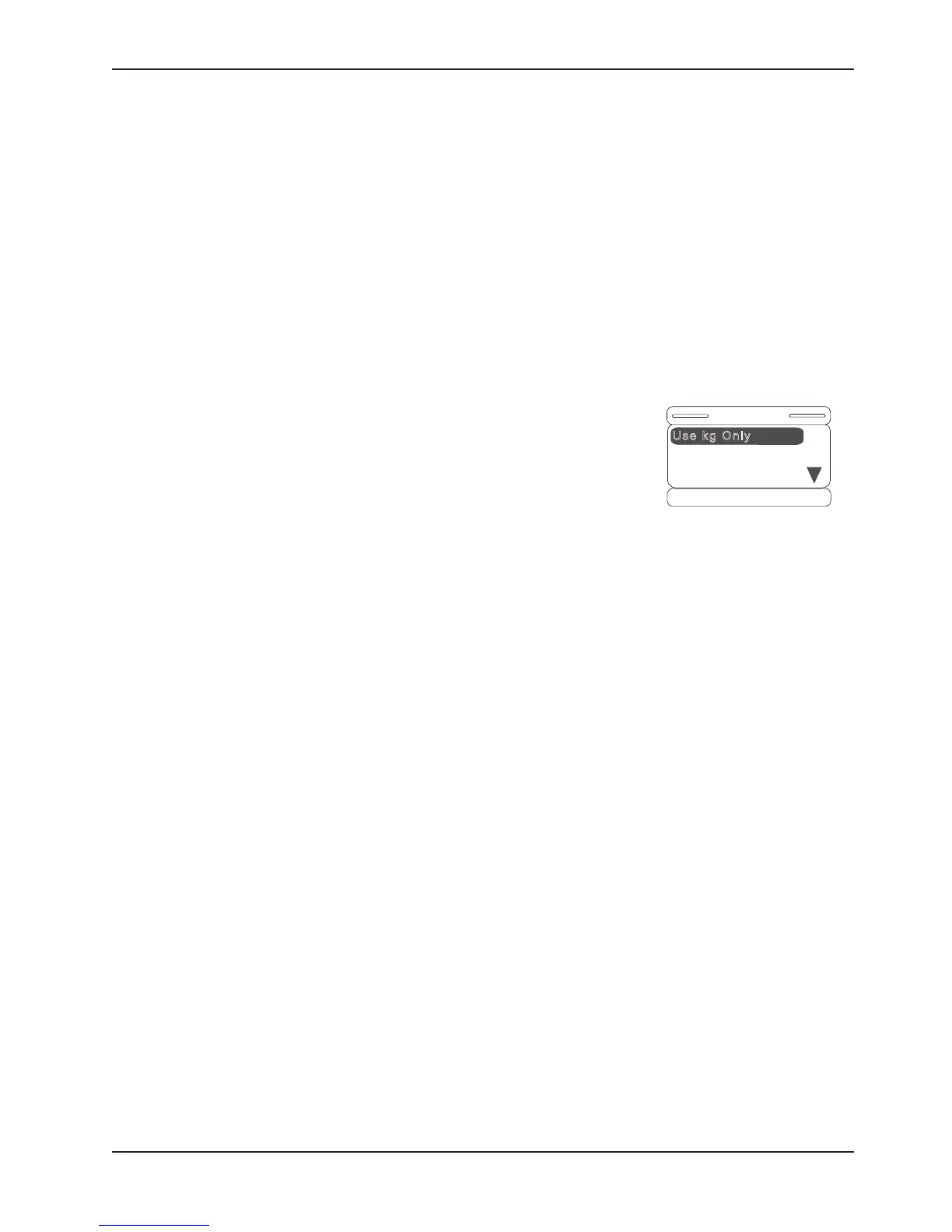

2. The Scale Units Screen with display Figure 41 with the current state as the highlighted item.
3. Use the Up and Down Arrow buttons to highlight the desired units and identify
whether you want them locked or unlocked.
4. Press and hold the Enter/Check button to select and save the new state.
5. The following screen message will be displayed:
“Save Successful”.
6. The Scale Units screen will reappear after 2 seconds and the new setting
will be highlighted.
7. Pressing the Exit/X button will return you to the Maintenance Menu screen
without saving the new state.
About Product
The display will indicate the current bed configuration settings and indicate the software versions for all software
targets connected on the internal CAN network.
To view this information:
1. In the Maintenance Menu select the About item then press and hold the Enter/Check button.
2. The About Screen will be displayed.
3. Use the Up and Down Arrow buttons to scroll through the information if it does not fit on one screen.
4. Press the Exit/X button to return to the Maintenance Menu screen.
5. The Type information should indicate, depending on the options: “Zoom”, “Scale”, “Bed Exit”, and “Bed
Status”.
Exit Maintenance
• This feature allows the operator to exit the menu back to the previous screen.
• When this menu item is selected the screen will exit to the “Status” screen.
