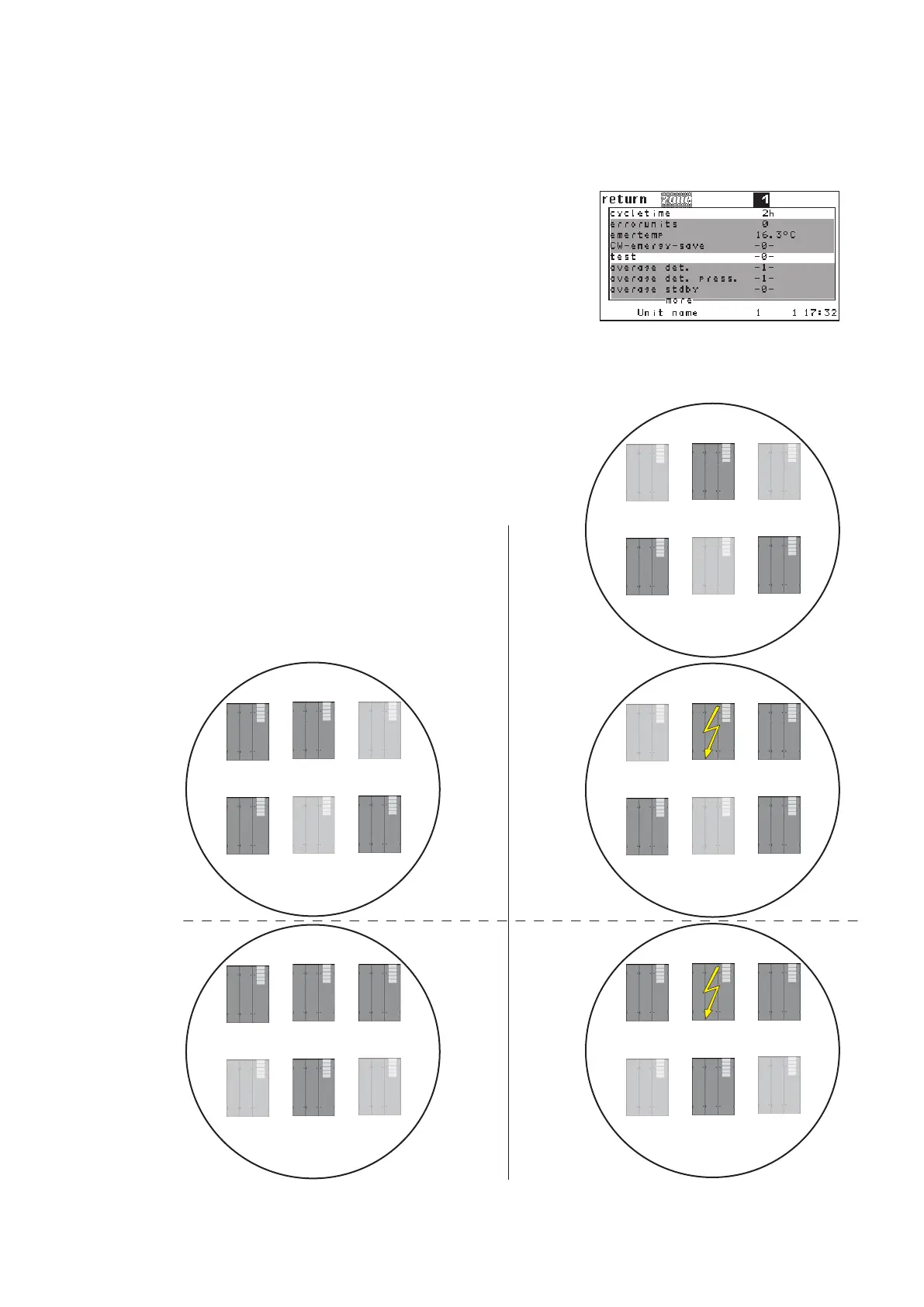

Cycle 1
Unit 06 Unit 09 Unit 10
Unit 02 Unit 04 Unit 05
Cycle 1
Unit 06 Unit 09 Unit 10
Unit 02 Unit 04 Unit 05
Cycle 2
Unit 06 Unit 09 Unit 10
Failure dependent change-over
Due to
a failure of
unit 04 unit 05 is
switched on.
Time dependent change-over
(normal sequencing)
e. g. with 2 standby units:
1. cycle unit 07, 11 standby
2. cycle unit 08, 14 standby
3. cycle unit 11, 01 standby
etc.
Unit 01 Unit 03 Unit 07
Cycle 1
Unit 08 Unit 11 Unit 14
Unit 01 Unit 03 Unit 07
Unit 08 Unit 11 Unit 14
Cycle 2
The zone control comprises three specific functions:
1. Sequencing,
2. CW Standby Management,
3. Zone for DFC control
6.2.1 Sequencing
The sequencing provides a time dependent unit changeover.
By the use of standby units, a high operating reliability the
same as an even unit exploitation is achieved.
By setting the cycle time (parameter in the first line of menu
Z1) you adjust the lapse of time, after which a changeover
is done periodically. This means that the standby status is
changed over the units one by one. With the setting 0 (hrs) no
sequencing is made.
Setting the cycletime causes the sequencing start.
