Stulz C7000 - EDIO - extension board for digital in- and outputs

172
1 10 21 30
11 20 31 40
LDI
19
18
17
16
15
14
13
12
LDO
13
12
11
8
10
9
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS

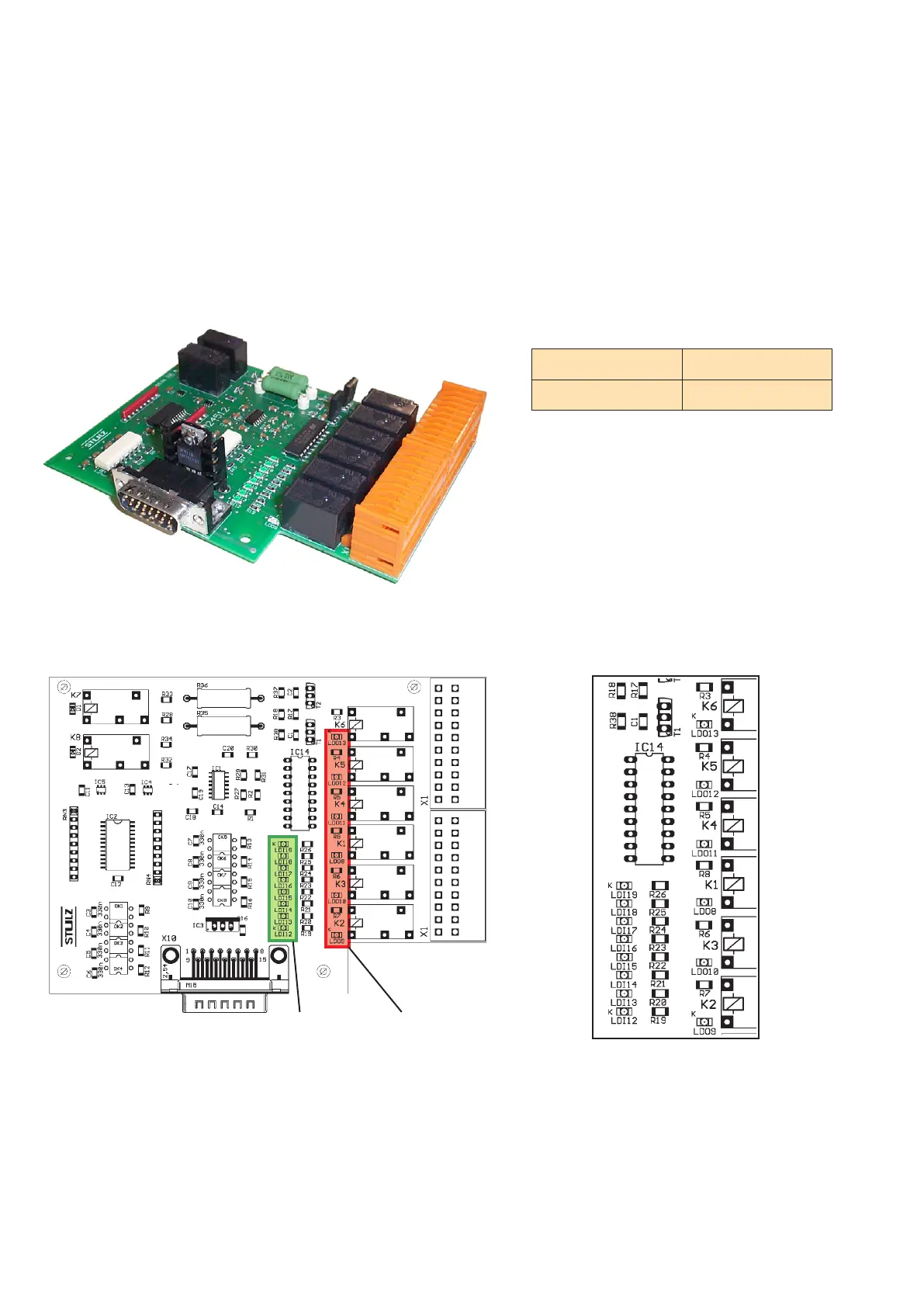

10.2 EDIO - extension board for digital in- and outputs
Pin position of X1
green LEDs for red LEDs for
digital inputs 1219 digital outputs 813
of the first EDIO-board
Onboard LEDs
The function of the digital inputs is displayed by green
LEDs:
ON: voltage present
OFF: no voltage (alarm, failure)
The function of the digital outputs is displayed by red
LEDs:
ON: relay active
OFF: relay passive
enlarged section for onboard LEDs
The EDIO is an expansion board for digital inputs
and outputs. It can be plugged on the I/O controller
board at each of the 4 sockets and will be recog-
nized by the C7000IOC due to a self test.
Technical Data:
Power consumption: 10,1 VA
Operating temperature: 5°C...40°C
Storage temperature: -30°C...60°C
not assigned
