The corresponding commands:
Statistics
Data logger

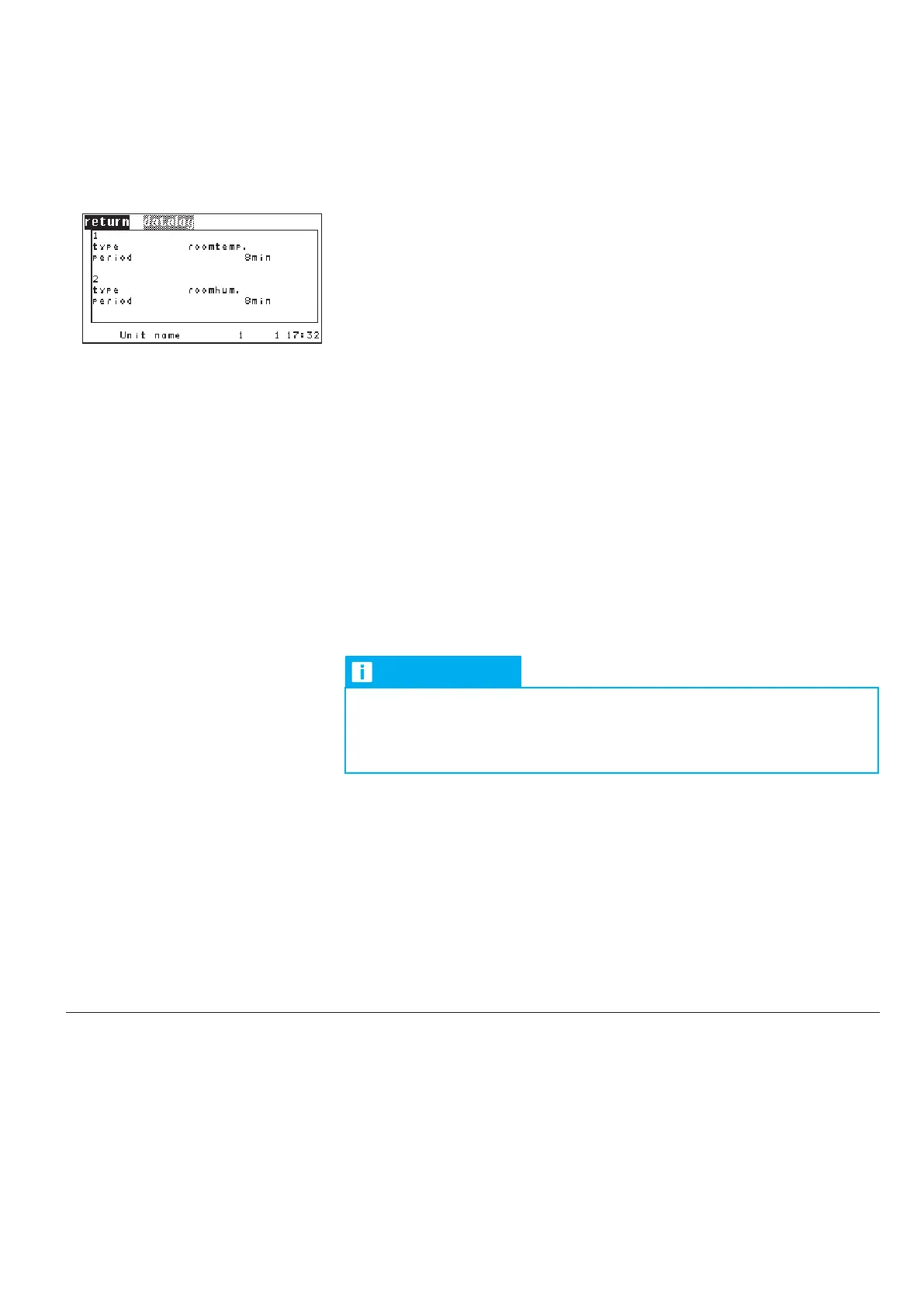

Here you can adjust the basic conditions for the data logger.
To this belongs sensor type
➊ and cycle ➋, the interval in which measure values
of the corresponding sensor are stored.
Each data logger can store 1440 datapoints maximum. The 1441st datapoint
deletes the first datapoint etc.. If you adjust a cycle of 1 minute you obtain a
graphic for a lapse of time of 1440 minutes which corresponds exactly to 24
hours. With a cycle of 2 minutes, datapoints for a lapse of 2 days are stored
etc..
Regarding the fact that the graphic represents a width of 180 pixels, we
recommend to choose the cycle depending on the lapse of time (Info menu) to
be represented.
Lapse (Info menu) Cycle
- Hour 1 Min.
- Day 8 Min.
- Week 60 Min.
- Month 240 Min.
- Year 2880 Min.
NOTICE
At the modification of a parameter (type or cycle) or when the con-
troller is de-energized all data of the corresponding data logger is
deleted.
TYPE (for C7000 command) :
1 - unit room temperature
2 - unit room humidity
3 - unit supply temperature
4 - unit supply humidity
5 - water temperature, inlet 1
6 - outside temperature
7 - outside humidity
8 - condensation pressure 1
9 - hotgas temp. 1
10 - evaporation pressure 1
11 - suction gas temp. 1
12 - zone room temperature
13 - zone room humidity
14 - zone supply temperature
15 - zone supply humidity
16 - zone outside temperature
17 - water temperature, inlet 2
18 - water temperature, outlet 1
19 - water temperature, outlet 2
The first numeral designates the number of
the data logger (1 or 2).
The second numeral stands for:
- the cycle in minutes
- the measure values listed left top.
5.5 Statistics
log 1 cycle 15
log 1 type 2
Config
