Stulz C7000 - Cooling Water Circuit, External Components

84
➊
➋
➌
➍a
➍b
➍c
➎
➏
➐
➑
➊
a
➊b
➋
➌
➊b
➋
T/°C
➊a
➋
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR A/C UNITS
The corresponding commands:

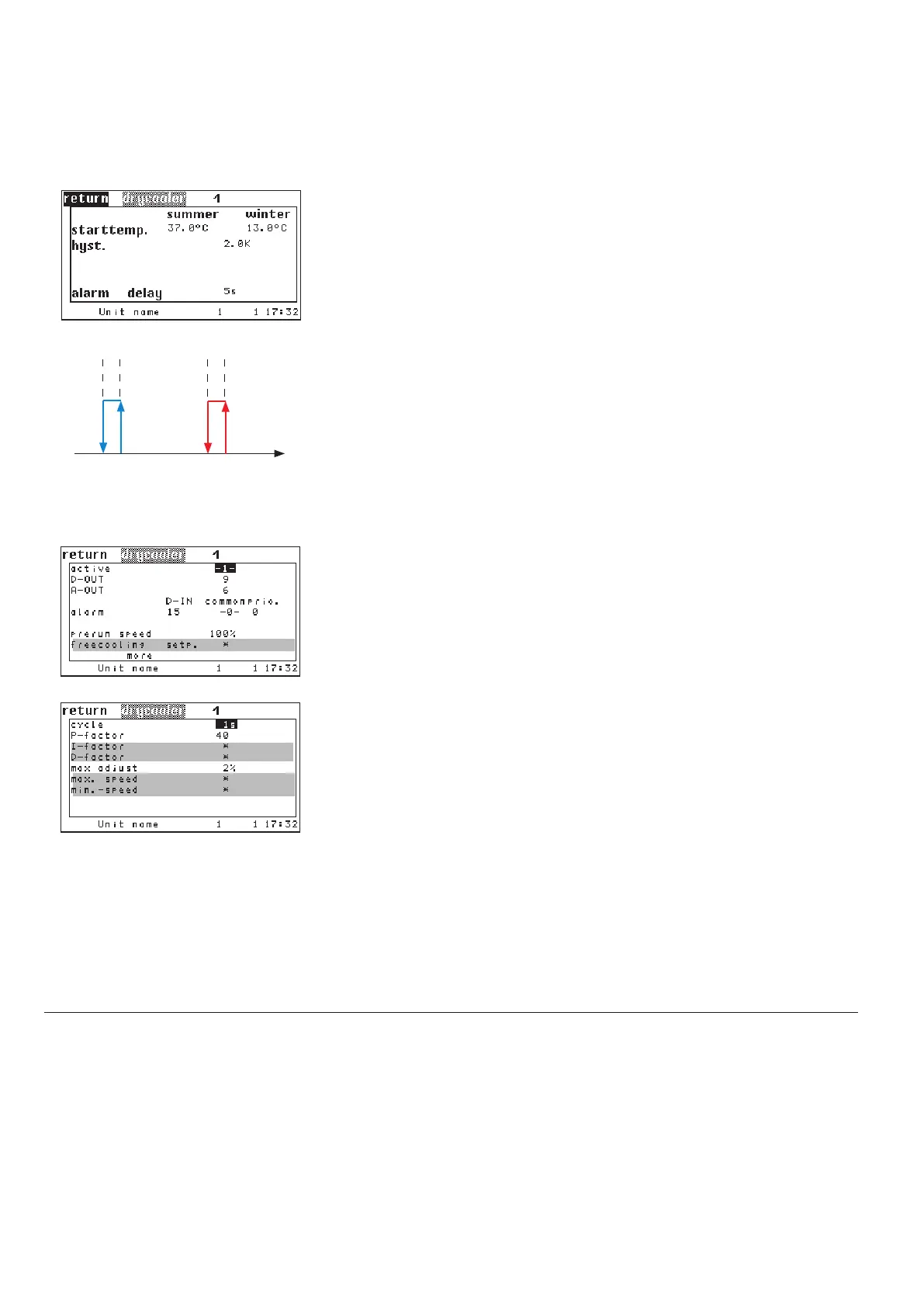

In the first line you add the drycooler to the configuration by entering "1". With
"0" you disable the drycooler.
➊
With the parameter "DOUT" you determine a digital output for the drycooler
on/off signal.
➋
With the parameter "AOUT" you determine an analog output for the propor-
tional drycooler control.
➌
Alarm parameters:
digital input
➍a
common alarm release ➍b
alarm priority ➍c
Components/Cooling
Drycooler
The start temperature for the drycooler is entered as an absolute value for the
water temperature.
Two different start temperatures for summer
➊a and winter ➊b operation +
hysteresis
➋ can be entered.
The summer/winter operation depends on the setting in the menu Config/
Values GE-mode.
Alarm parameters:
Drycooler alarm delay.
➌
Drycooler
ON
OFF
winter
operation
summer
operation
water
temp.
5.4.5 Cooling water circuit, external components
The parameters:
- AOUT
➌
- pre-speed ➎
- control cycle ➏
- P-factor ➐
- max. adjust ➑
are only necessary for the DFC con-
trol, which is explained in the manual GE
systems.
Note:
For the dry cooler control, the configuration of an outside temperature sensor
and a water temperature sensor is required.
drycool 1 conf 1
drycool 1 dout 10
drycool 1 aout 4
drycool 1 alarm 5
drycool 1 commonalarm 1
drycool 1 alarmprio 3
drycool 1 prespeed 100
drycool 1 concyc 10
drycool 1 fact 3
drycool 1 maxc 4
drycool 1 startsum 32.0
drycool 1 startwin 15.0
drycool 1 hys 3.0
drycool 1 alarmdelay 3
