Stulz C7000 - Summer-;Winter Operation

145
➊
T/°C
➋
➊a
➋a
➋b
T/°C
➊b
➊b
➋
T/°C
➊a
➋
© STULZ GmbH – all rights reserved EN/06.2019/G57
C7000 INSTRUCTIONS fOR A/C UNITS
Summer
Winter
Values/GE-mode
The outside temperature
➊ for the commutation from summer to winter
operation is decisive for the drycooler and compressor control. With this
hysteresis
➋ the winter operation changes to summer operation.
The winter operation is also switched over to summer operation, if an out-
side temp. sensor breakdown is detected. An alarm "Outside temperature
sensor defective" is not displayed.
If no outside temperature sensor is configured, summer operation is
active.
Components/Cooling
Drycooler
ON
OFF
winter
operation
summer
operation
water
temp.
6.8 Summer-/winter operation
Components/Cooling
Compressor
Setpoint
ON
OFF

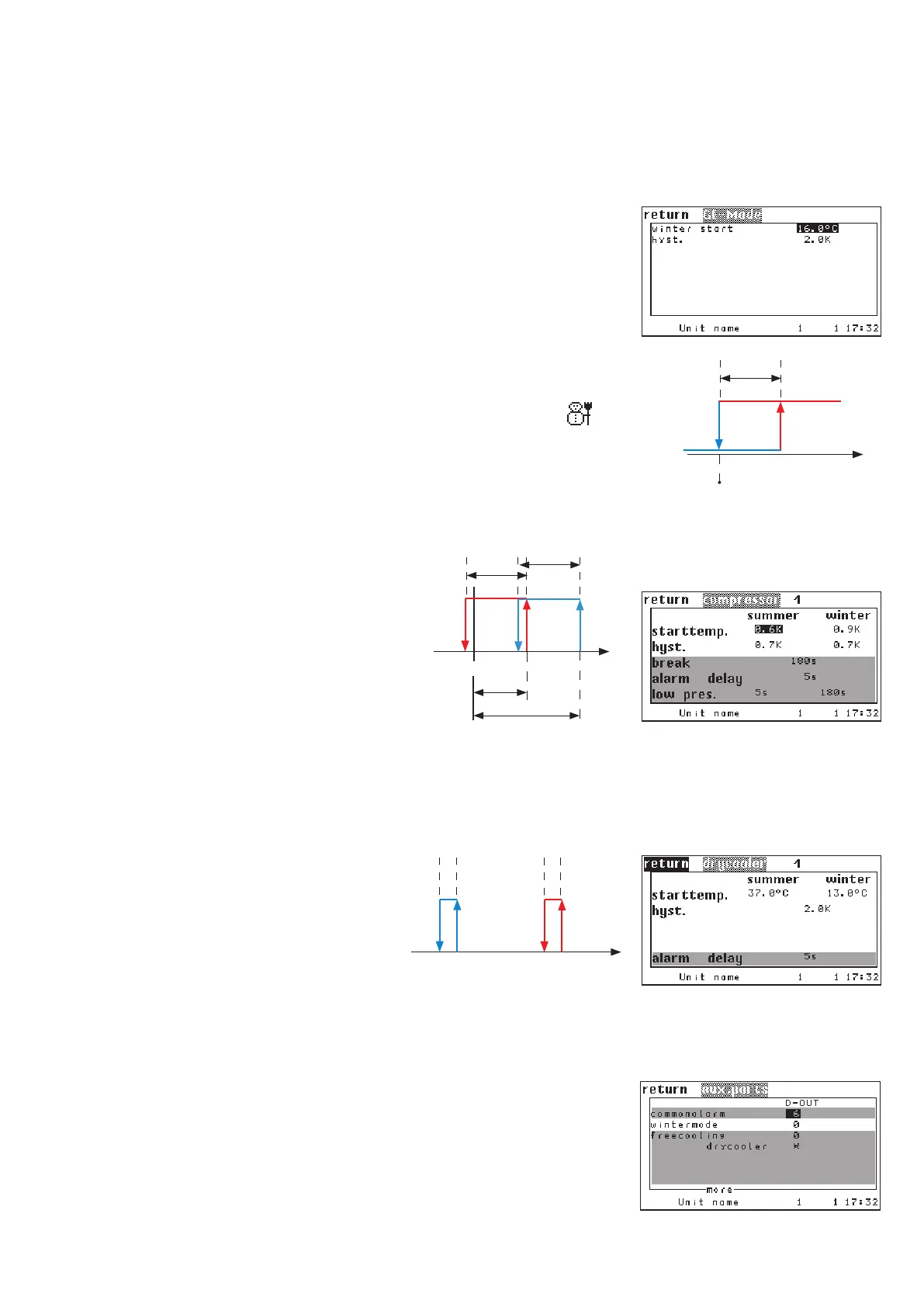

Two different start temperatures ➊a,➊b
+ hysteresis
➋a,➋b for summer and
winter operation can be entered.
The start temperature for the drycoo-
ler is entered as an absolute value for
the water temperature.
Two different start temperatures for
summer
➊a and winter ➊b operation
+ hysteresis
➋ can be entered.
Components
Aux. Ports/Aux. Ports
In this menu in the second line you can adjust the digital output for the win-
termode. The wintermode signal can be forwarded to a BMS system.
In the main menu winter operation is indicated by the following
symbol.
Config
Operate
Config
Operate
