ID glob.adr. dev.type reliab. cong.
0 - unknown 0% 0
1 - unknown 0% 0
2 - unknown 0% 0
3 - unknown 0% 0
4 1 IO-Controller 100% 1
5 1 IO-Controller 100% 1
6 1 IO-Controller 100% 1
7 1 IO-Controller 95% 1
8 - unknown 0% 0
9 - unknown 0% 0
10 - unknown 0% 0
11 - unknown 0% 0
12 - unknown 0% 0
13 - unknown 0% 0
14 - unknown 0% 0
15 - unknown 0% 0
16 255 AdvancedTerminal 95% 1
17 255 AdvancedTerminal me% 1
18 - unknown 0% 1 error
19 - unknown 0% 1 error
ERROR IN THE BUS CONFIGURATION DETECTED.
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS
There is another way to delete a bus error on the C7000AT
and to transfer so the actual bus configuration.
For this purpose all systems have to be selected simulta-
neously and afterwards the OK-button has to be pressed.
After entering the password the faulty unit (address 6) is
deleted from the bus. The bus error disappears.
7.3.6 Special cases
Disconnecting a bus
An important aspect concerning the display of the IO bus is that the display is always exclusively dependent on
the C7000AT which is in use at the moment.

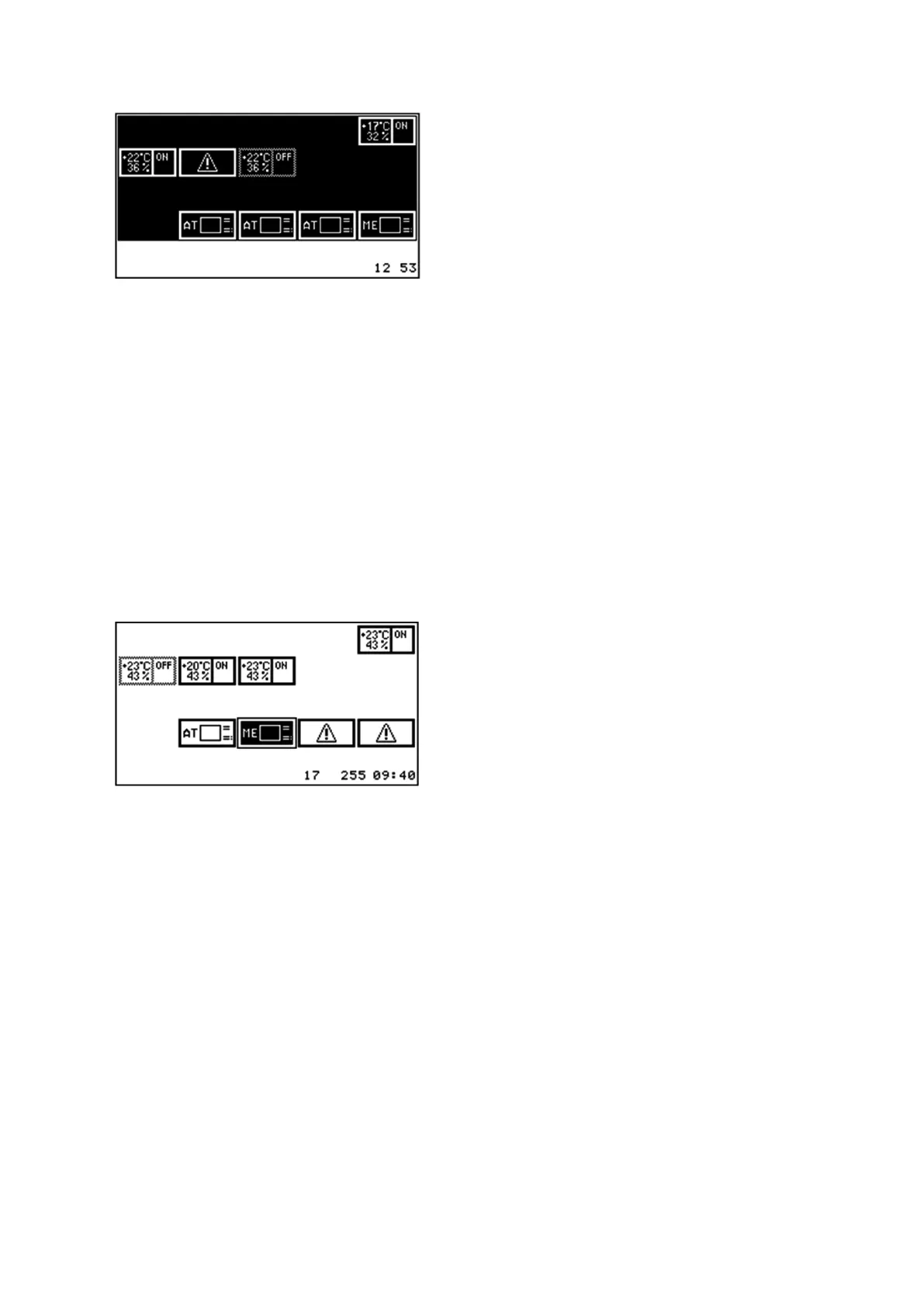

For example a bus disconnection between the bus participants 4, 5, 6, 7, 16, 17 and the bus participants 18,
19 results in two completely independently running busses.
However the bus participants 4, 5, 6, 7, 16, 17 report the bus participants 18, 19 as faulty and vice versa.
IO bus belonging to the bus participant 17
