Stulz C7000 - C7000 Display

180 EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS

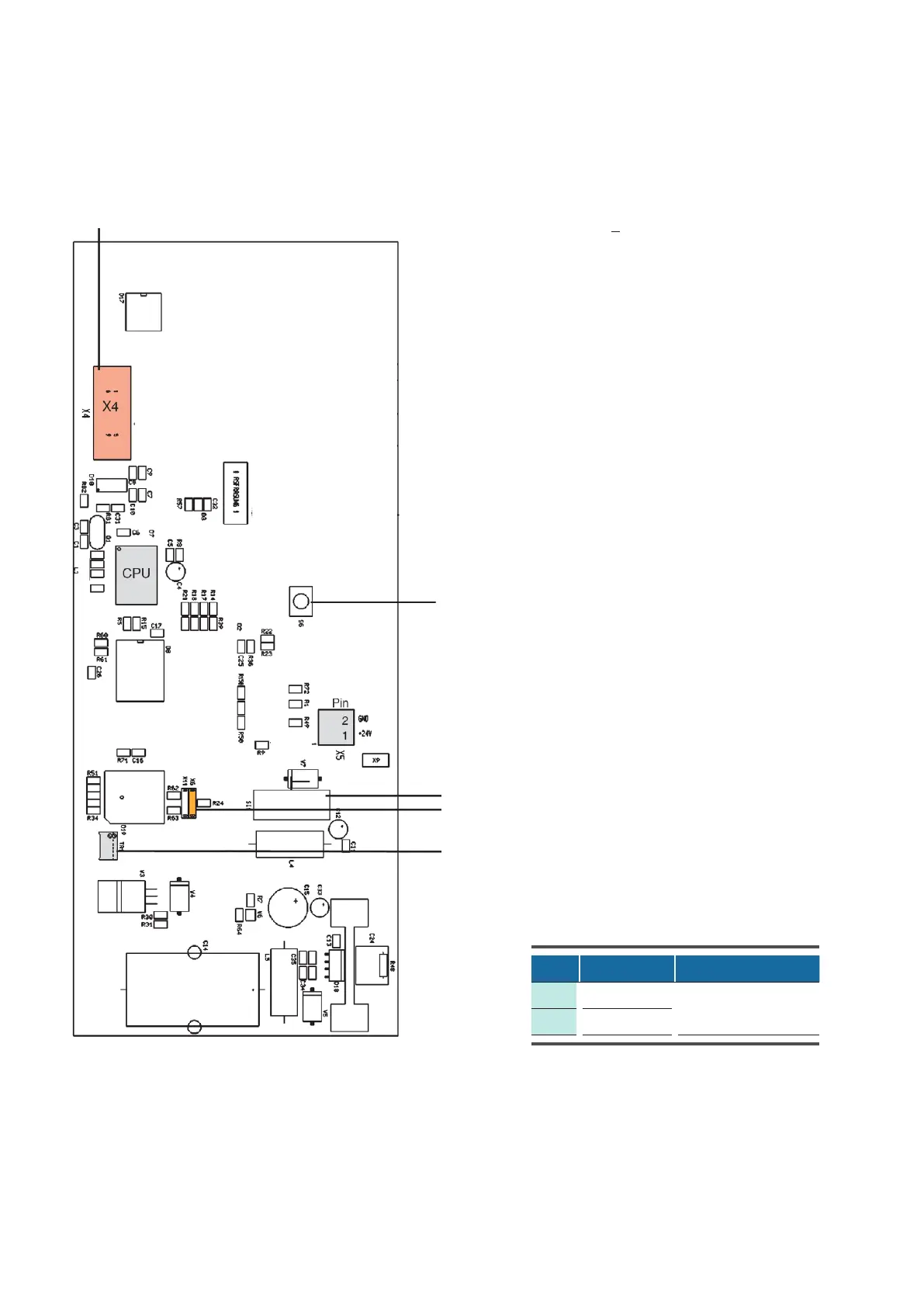

RS232 - service port (SUBD 9)
Fuse T2A
Jumper X6: Pos. A: Board in download mode
Contrast adjustment for display
Reset button
10.7 C7000 Display
Technical Data:
Dimensions: 270  110  40 mm
Voltage supply: 24(+15%) VAC
Power consumption: 14 VA
Fuse: 2 A time-lag
Operating temperature: 5°C...40°C
Storage temperature: -30°C...60°C
Pin Designation Function
2 GND
Power supply
1 +24VAC
