Stulz C7000 - System Architecture with the C7000 AT

155
RS485 I/OBus
C7000IOC
C7000AT
C7000AT
RS485 I/OBus
C7000ATC7000ATC7000AT
C7000IOC+C7000Display
© STULZ GmbH – all rights reserved EN/06.2019/G57
C7000 INSTRUCTIONS fOR a/C UNITS

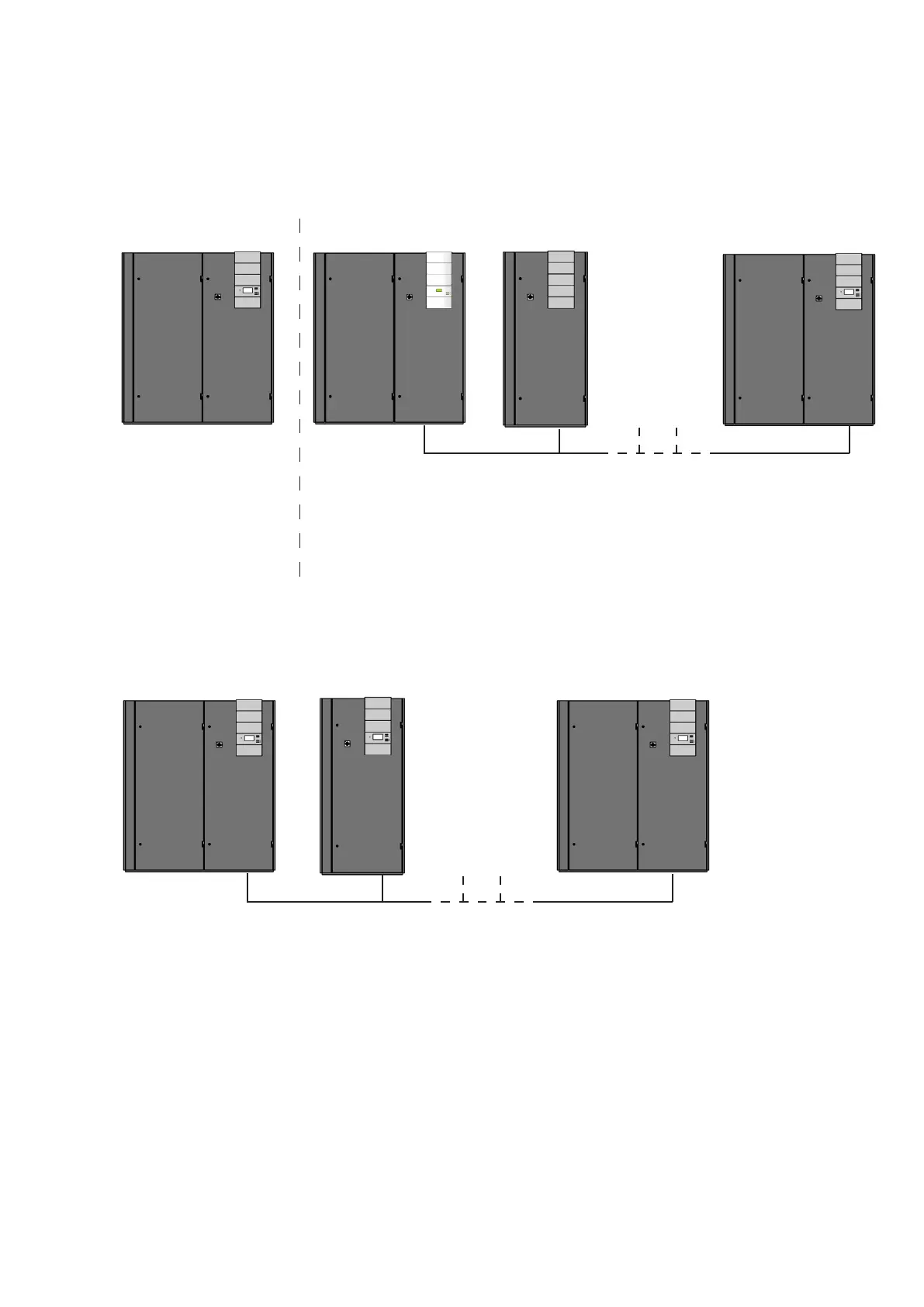

Minimum configuration Maximum configuration (concerning n° of A/C units)
Maximum configuration (concerning the operational facilities & the n° of A/C units)
in all:
19 units
in all:
10 units with
C7000IOC and
C7000AT
The minimum configura-
tion consists of an A/C
unit with a C7000AT and
a C7000IOC.
The maximum configuration in relation to the number of A/C units consists of 18
A/C units with a C7000IOC and 1 A/C unit with a C7000AT and a C7000IOC which
results in 20 bus sharing elements. The C7000Display neither participates in the
bus nor occupies a bus position.
The maximum configuration in relation to the operational facilities and the number of A/C units consists of 10
A/C units with a C7000IOC and a C7000AT which also results in 20 bus sharing elements.
7.2 System architecture with the C7000AT
