Stulz C7000 - C7000 Advanced - Terminal (C7000 AT)

178
Pin
14
13
12
11
10
9
8
7
6
5
4
3
2
1
CPU
X12
X4
HW1
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS
RS232 - BMS port (SUBD 9)
RS232 - service port (SUBD 9)
Fuse T2A
Jumper X6: Pos. A: Board in download mode
Contrast adjustment for display
Real-
time
clock
Technical Data:
Dimensions: 270  110  40 mm
Voltage supply: 24(+15%) VAC
Power consumption: 14 VA
Fuse: 2 A time-lag
Operating temperature: 5°C...40°C
Storage temperature: -30°C...60°C

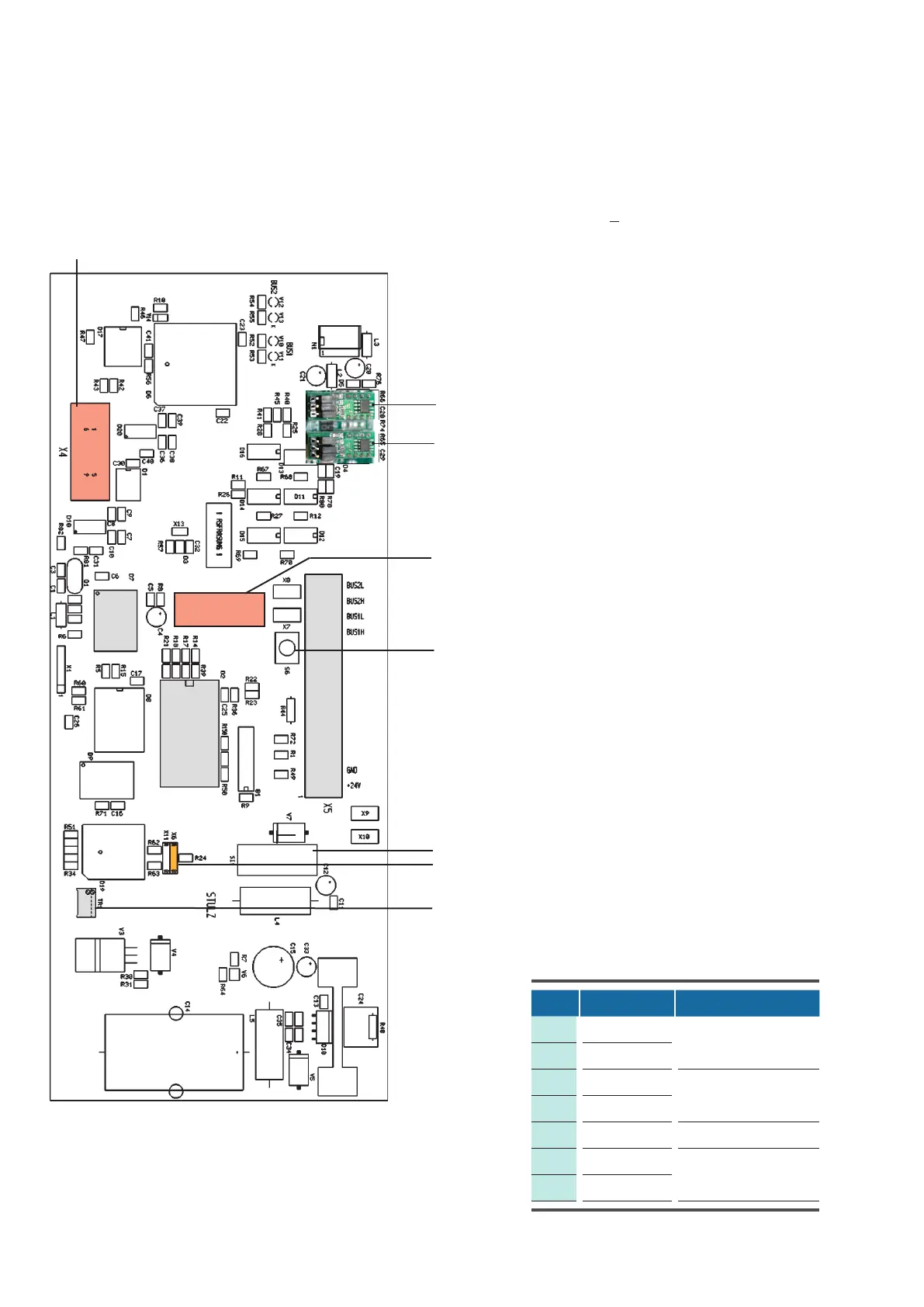

10.6 C7000 Advanced - Terminal (C7000AT)
This figure shows the jumper position for the
board at the end of the bus.
Driver module for
RS4852 (BMS-bus)
Driver module for
RS4851 (IO-bus)
Reset button
Pin Designation Function
14 Port 2L
RS485 BMS bus
13 Port 2H
12 Port 1L
RS485 I/O bus
11 Port 1H
103 free terminal none
2 GND
Power supply
1 +24VAC
