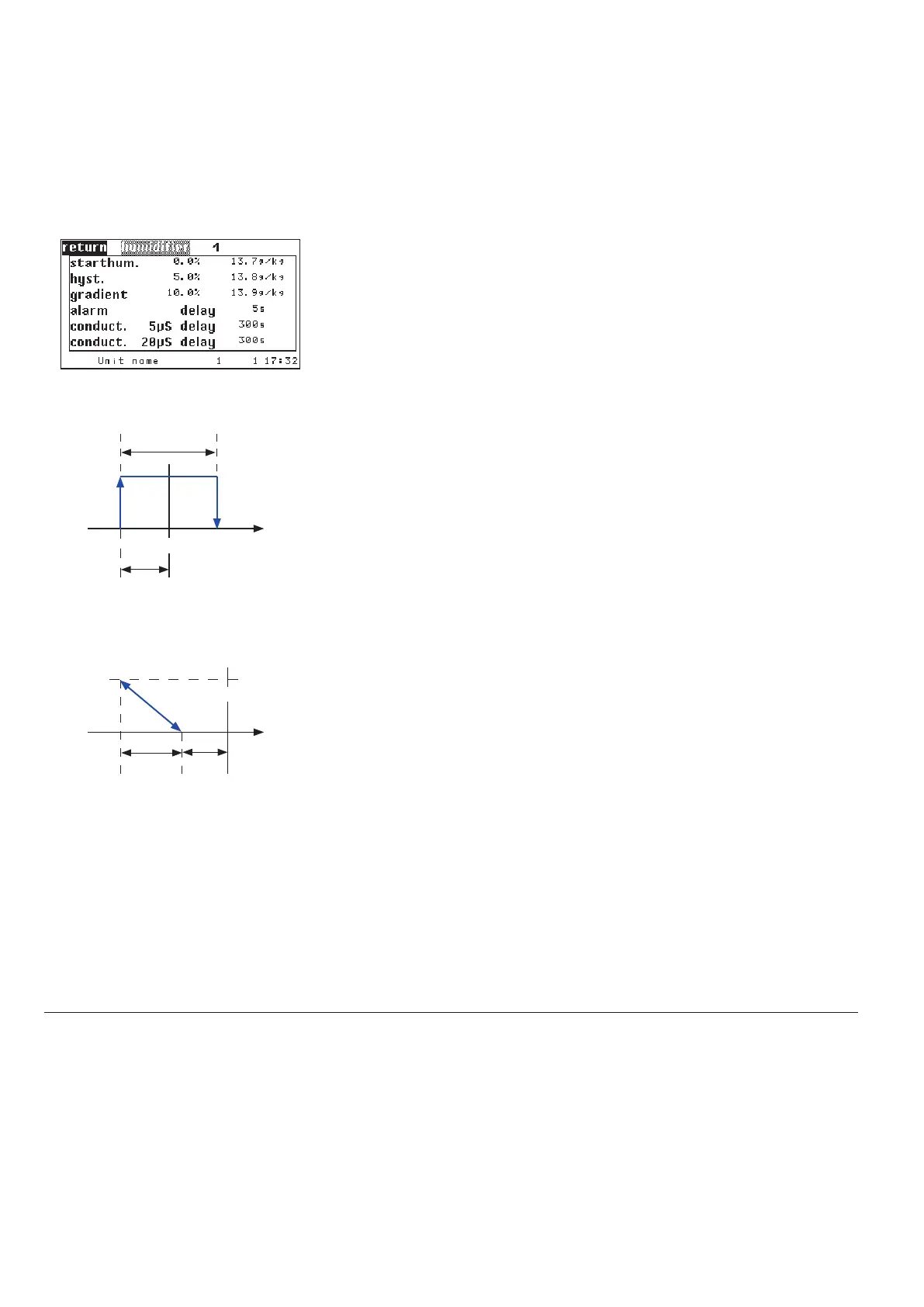

The corresponding commands:
Components/Humidity
Humidifier
Depending on which humidifier type you have, different parameters are
decisive.
Enter the start humidity for every humidifier as a negative difference to the
relative room humidity setpoint
➊ or to the setpoint for specific humidity ➊a.
The hysteresis for the humidifier stop is only valid for humidifiers with on/
off-control
➋ (for specific humidity ➋a).
For proportional humidifiers you can adjust a gradient, which determines the
humidity range in which the humidifying capacity increases from 0 to 100%
➌
(for specific humidity ➌a).
Alarm parameters:
Humidifier alarm delay
➍
Delay for the conductivity alarm at 5µS ➎ and at 20µS ➏
These alarms are available with the application of a conductivity measuring
instrument, which is required to control the water conductivity for Ultrasonic
humidifiers.
On/Off-control (type 1)
Humidifier
ON
OFF
Proportional (type 2)
Humidifier
100%
0%
setpoint
setpoint
%r.h.
%r.h.
5.4.7 Air circuit, internal optional components
humi 1 start 7.3
humi 2 startsp 1.5
humi 1 hys 9.0
humi 2 hyssp 0.5
humi 1 grad 10.0
humi 2 bandsp 2.0
humi 1 alarmdelay 6
humi 1 alarmdelay5 6
humi 1 alarmdelay20 6
