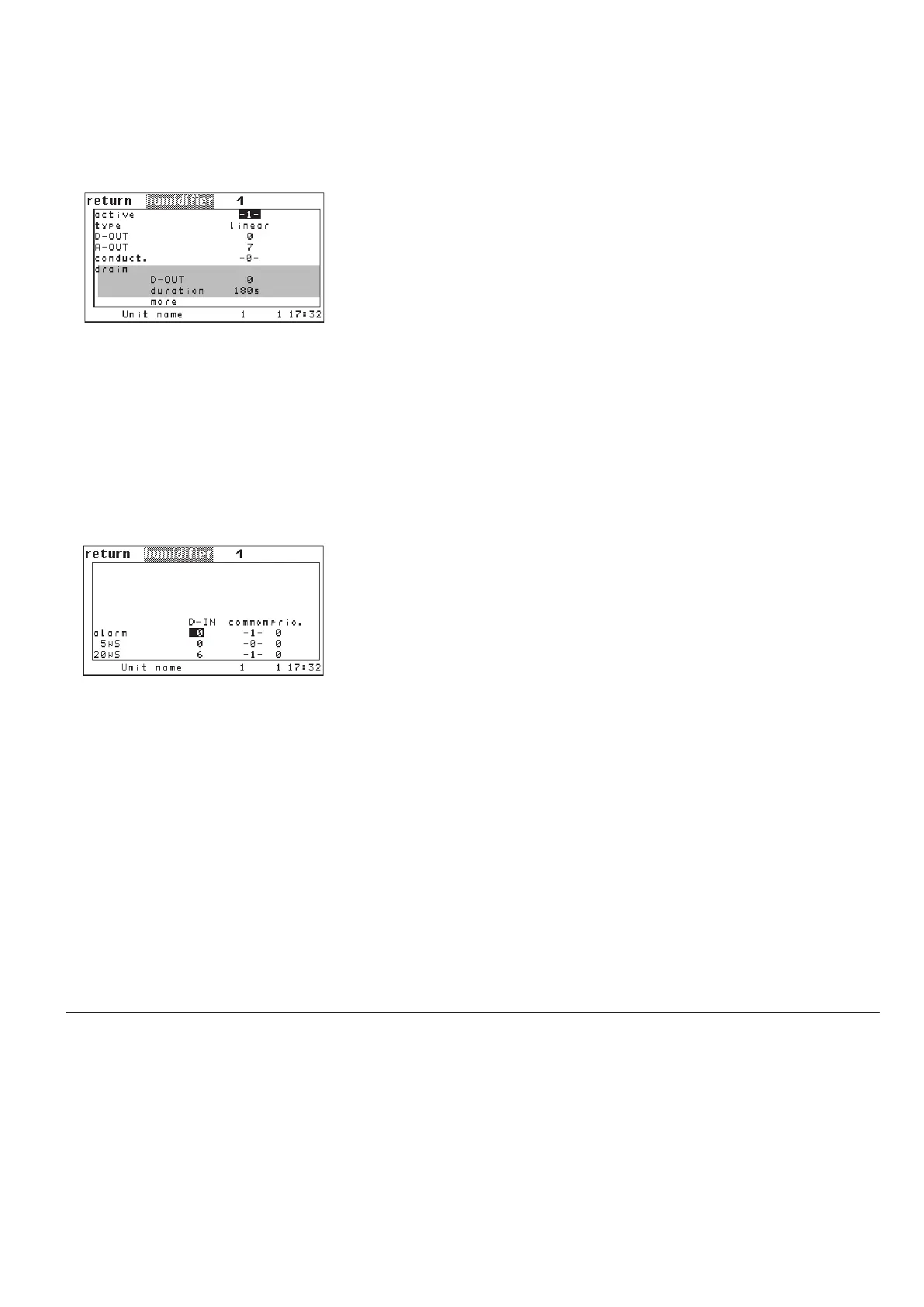

The corresponding commands:
Components/Humidity
Humidifier
By setting the parameter "ACTIVE" on 1 you add a humidifier to the configurati-
on. With "0" you disable the humidifier.
➊
In the next line you determine the humidifier type (2-point: humidifier with on/
off control, Linear: humidifier with proportional control).
➋
With the parameter "DOUT" you determine a digital output for an on/off humi-
difier.
➌
With the parameter "AOUT" you adjust the analog output of the proportional
signal for a humidifier.
➍
In the fifth line you can configure a conductivity meter which is required to
monitor the water conductivity when using Ultrasonic humidifiers.
➎
The following 2 parameters are only relevant for the drain valve of Ultrasonic
humidifiers (CyberSonic).
Alarm parameters humidifier alarm in the sixth line:
digital input
➏a
common alarm release
➏b
alarm priority
➏c.
In the seventh line these parameters can be adjusted for the conductivity alarm
at 5µS
➐a-c and in the last line for the conductivity alarm at 20µS ➑a-c.
These alarms are available with the application of a conductivity meter.
humi 1 conf 0
humi 1 type 2
humi 1 dout 11
humi 1 aout 4
humi 1 confcon 1
humi 1 alarm 7
humi 1 commonalarm 1
humi 1 alarmprio 5
humi 1 alarm5 7
humi 1 commonalarm5 1
humi 1 alarmprio5 5
humi 1 alarm20 7
humi 1 commonalarm20 1
humi 1 alarmprio20 5
