Stulz C7000 - EAIO - extension board for analog in- and outputs

174
AIN 9
AIN 8
AIN 7
AIN 6
1 10 21 30
11 20 31 40
EN/06.2019/G57 © STULZ GmbH – all rights reserved
C7000 INSTRUCTIONS fOR a/C UNITS

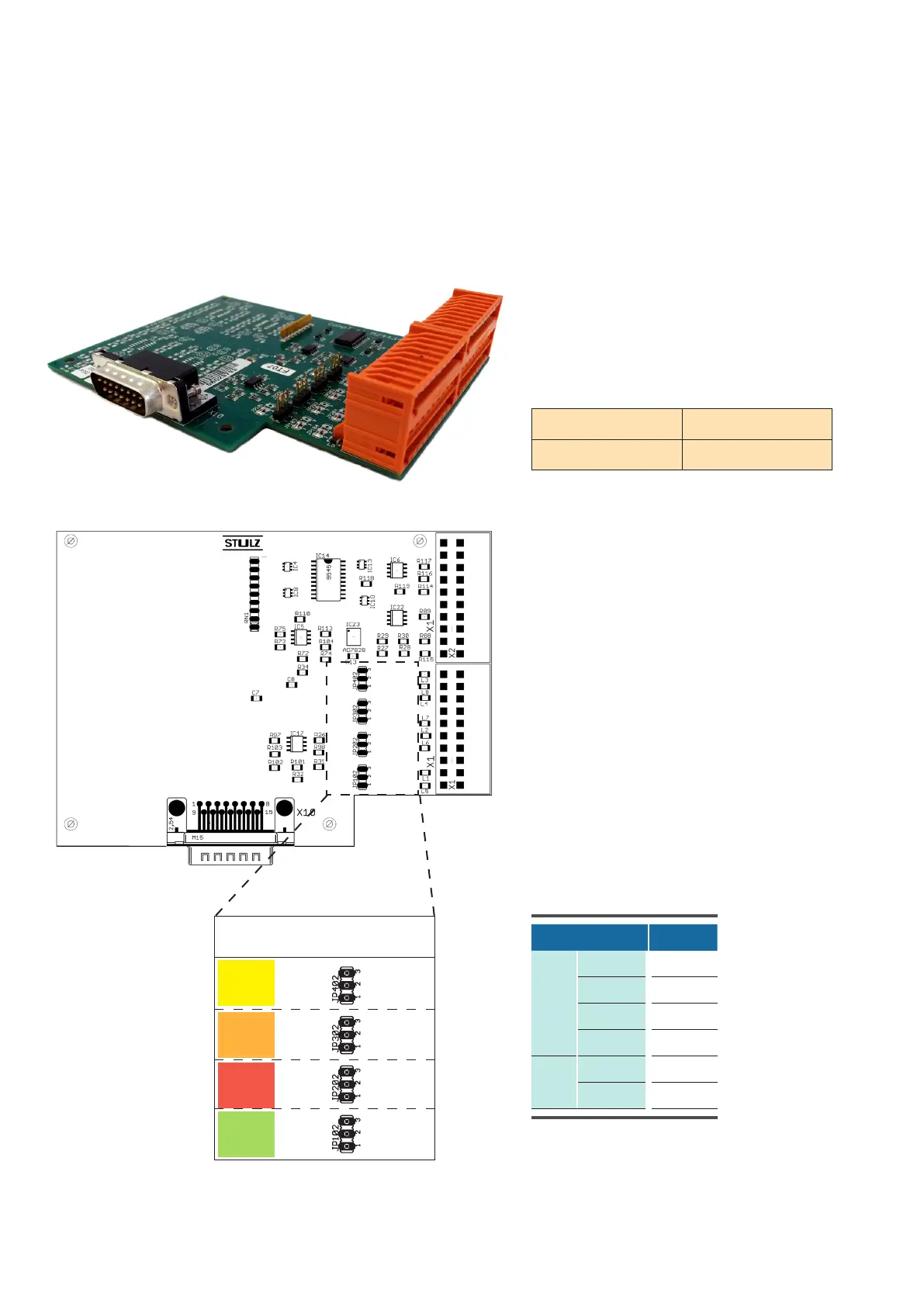

10.3 EAIO - extension board for analog in- and outputs
corresp. Jumper 102402
input (enlarged section)
How to use the Jumper setting table:
- choose the analog input at which you have connected a
sensor.
- in the same line you can see the jumper which relates to
this input.
- in the lower part of the table you can read in each column
the setting depending on the sensor type you connected.
Example:
You have connected a 010V sensor at AIN 8. The cor-
responding jumper is 302. Jumper 302 must be set on
position 23.
Pin position of X1
Technical Data:
Power consumption: 10,1 VA
Operating temperature: 5°C...40°C
Storage temperature: -30°C...60°C
not assigned
The EAIO is an extension board for analog inputs and outputs. It can be plugged on the I/O controller board at
each of the 4 sockets and will be recognized by the C7000IOC due to a self test.
There are several jumpers on board - one for each input - which serve to adapt the board to different sensor
types.
Jumper setting
Jumper
Analog
input
AIN 6 102
AIN 7 202
AIN 8 302
AIN 9 402
Sensor
type
010V 23
420mA 12
