Stulz C7000 - Page 175

175
Pin Bezeichnung
1 +Ub/Ib
2 Ain 6
3 GND
4 GND
5 +Ub/Ib
6 Ain 7
7 GND
8 GND
9 +Ub/Ib
10 Ain 8
11 GND
12 GND
13 +Ub/Ib
14 Ain 9
15 GND
16 GND
17 Aout 5
18 GND
19 Aout 6
20 GND
21 Aout 7
22 GND
23 Aout 8
24 GND
X10 SUBD 15
© STULZ GmbH – all rights reserved EN/06.2019/G57
C7000 INSTRUCTIONS fOR a/C UNITS
Assignment - EAIO
The assignment depends on the unit type.
Pins 25 to 40 are not assigned.
Note:

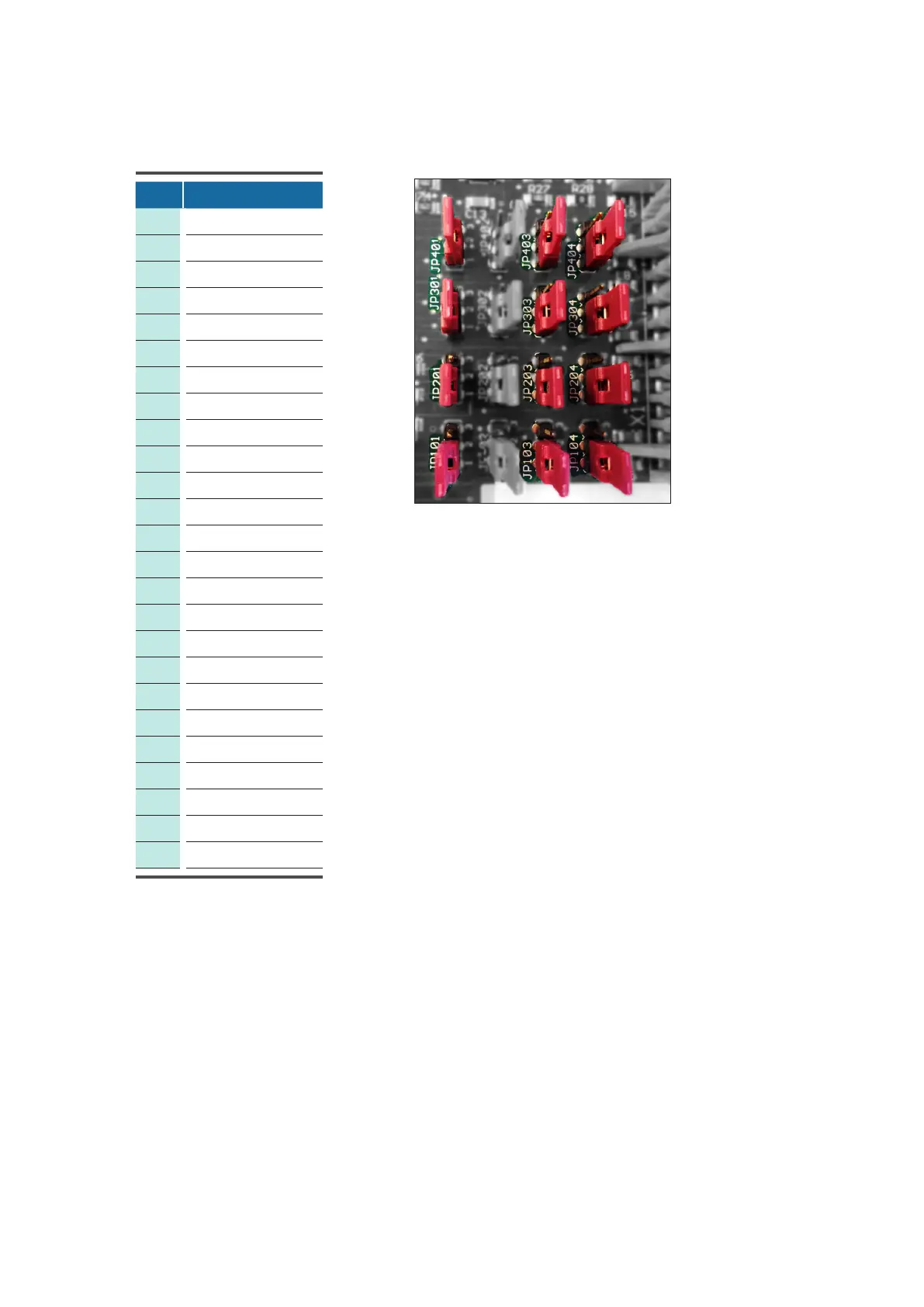

So that an old EAIO board (M24434) behaves exactly like a new
EAIO board (1107475), the jumpers 101, 201, 301, 401, 103,
203, 303, 403, 104, 204, 304 and 404 must be set on position
12 additionally (see picture).
The jumpers 102, 202, 302 and 402 must be set as described on
the precedent page.
Pin Designation
