C7000 INSTRUCTIONS fOR A/C UNITS

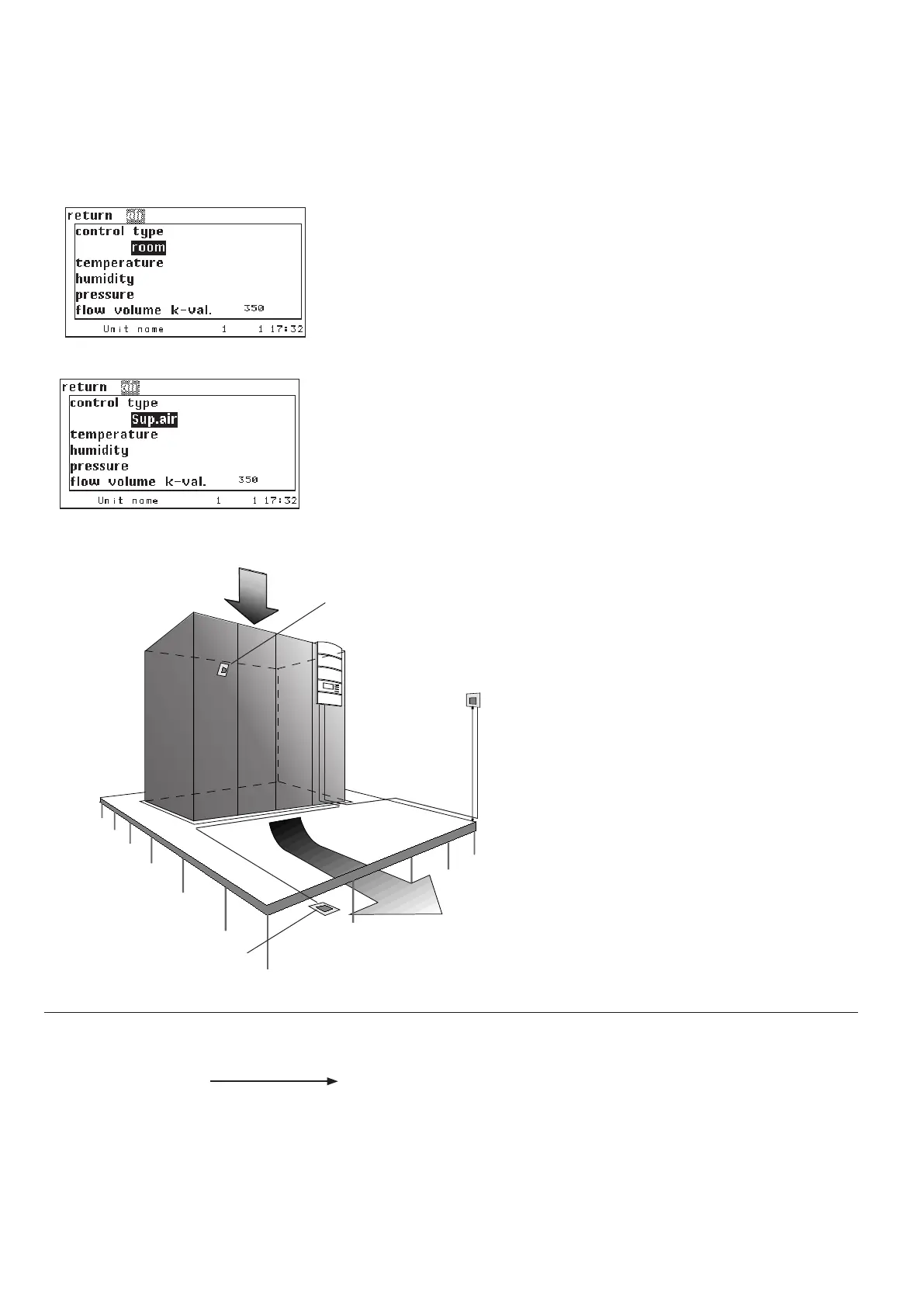

The corresponding commands:
T/H sensor for
return air
Return air
Supply air
T/H sensor for supply air
T/H sensor for
room air
Height > 1.5 m
Values
Air / Control type (Part 1)
Here you can choose the control type. The display of the actual values changes
corresponding to the above adjusted type of control (Room / Sup.Air).
➊
The room air control is the standard control. The temperature/humidity sen-
sor is placed in the return air intake or in the room and the C7000 controls in
accordance with the setpoints set in the menu Config/values/air/tempera-
ture or humidity.
An external T/H sensor is required for supply air control. The control takes pla-
ce for the room air control in accordance with the adjusted setpoints.
The sensor should be positioned depen-
ding on the space available, thermal load
distribution and selected type of control.
The maximum distance to the C7000
IOC is 20 m.
Four different control types can be
chosen by entering the corresponding
number:
1: room air
2: supply air
3: room air with supply air limitation
4: supply air with room air limitation
The surrounded numbers refer to the cor-
responding passages in the descriptive
text.
See next page for explanation of the com-
mands
➋ - ➎.
control 2
lim temp 16.3
lim temp2 15.3
grad temp 0.6
lim humi 75.0
grad humi 0.6
