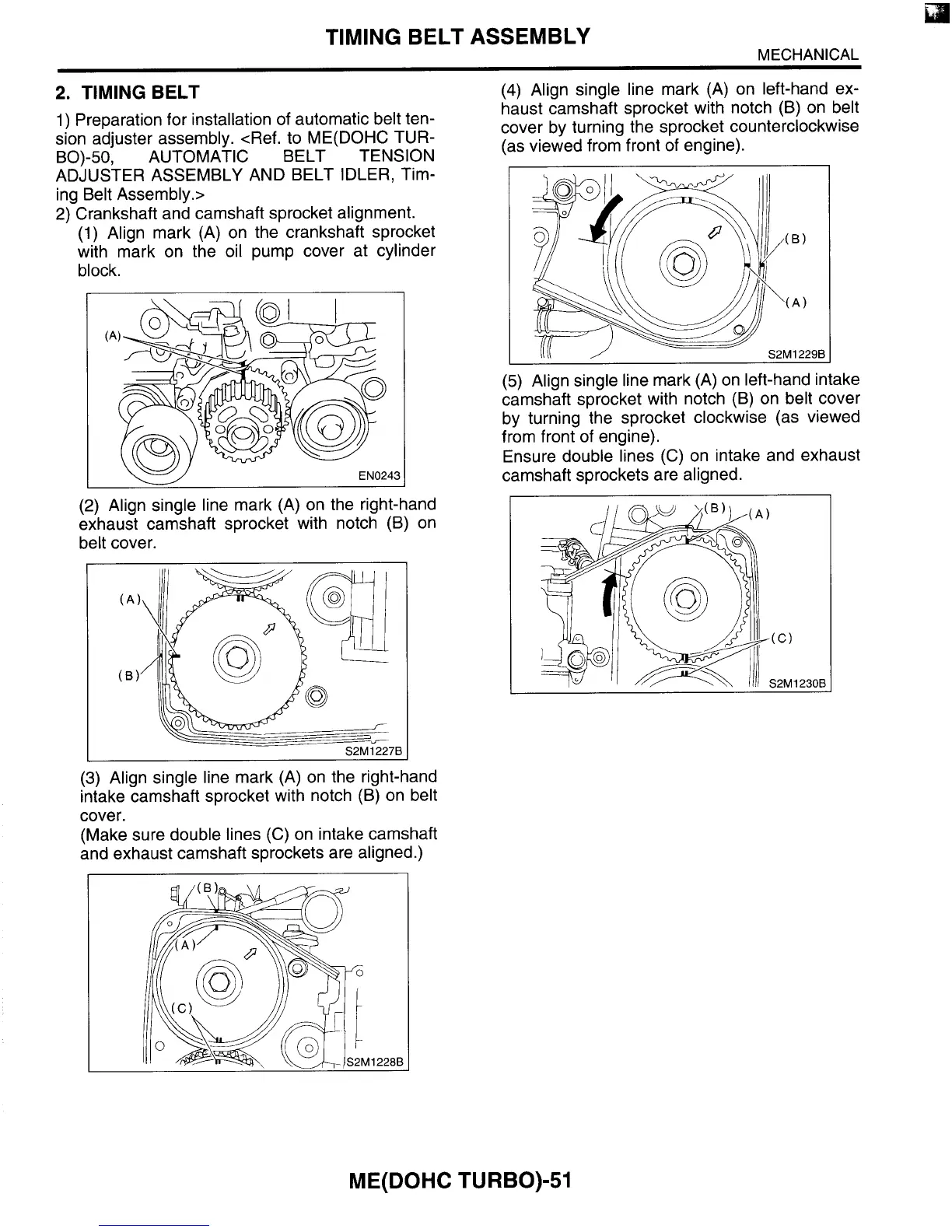

MECHANICAL
TIMING BELT ASSEMBLY
2.
TIMING
BELT
1)
Preparation for installation of automatic belt ten-
sion adjuster assembly. <Ref. to ME(D0HC TUR-
ADJUSTER ASSEMBLY AND BELT IDLER, Tim-
ing Belt Assembly.>
2)
Crankshaft and camshaft sprocket alignment.
BO)-50, AUTOMATIC BELT TENSION
(1)
Align mark (A) on the crankshaft sprocket
with mark on the oil pump cover at cylinder
block.
(2)
Align single line mark (A) on the right-hand
exhaust camshaft sprocket with notch (B) on
be It cover.
(3)
Align single line mark (A) on the right-hand
intake camshaft sprocket with notch (B) on belt
cover.
(Make sure double lines (C) on intake camshaft
and exhaust camshaft sprockets are aligned.)
(4) Align single line mark (A) on left-hand ex-
haust camshaft sprocket with notch (B) on belt
cover by turning the sprocket counterclockwise
s
viewed from front of engine).
(5)
Align single line mark (A) on left-hand intake
camshaft sprocket with notch (B) on belt cover
by turning the sprocket clockwise (as viewed
from front of engine).
Ensure double lines
(C) on intake and exhaust
camshaft sprockets are aligned.
ME(D0HC TURBO)-51
