1. Inspection upon Delivery
Common
(2) For reducer
■
Nameplate type 1
[1] Reducer nomenclature
(See P5)
[2] Reduction ratio
- Input capacity, speed
- Allowable output torque
[3] Serial number
- Service factor
MODEL
SF
JAPAN
OUTPUT RATING
RATIO
RATIO
INPUT kW
r/min
J A P A N
SERIAL NO.
OUTPUT TORQUE
SERVICE FACTOR
MODEL
VOLTS
kW
P
φ
TYPE
FRAME
TIME RATING
M/B INS.CLASS
JISC4004
B.TORQUE
N
•
m
N
•
m
N
•
m
Hz
M.AMP
r/min
B.AMP
SERIAL NO.
INPUT
kW
N
•
m
SERIAL NO.
SF
r/min
OUTPUT RATING
MODEL
RATIO
R
R
JAPAN
R

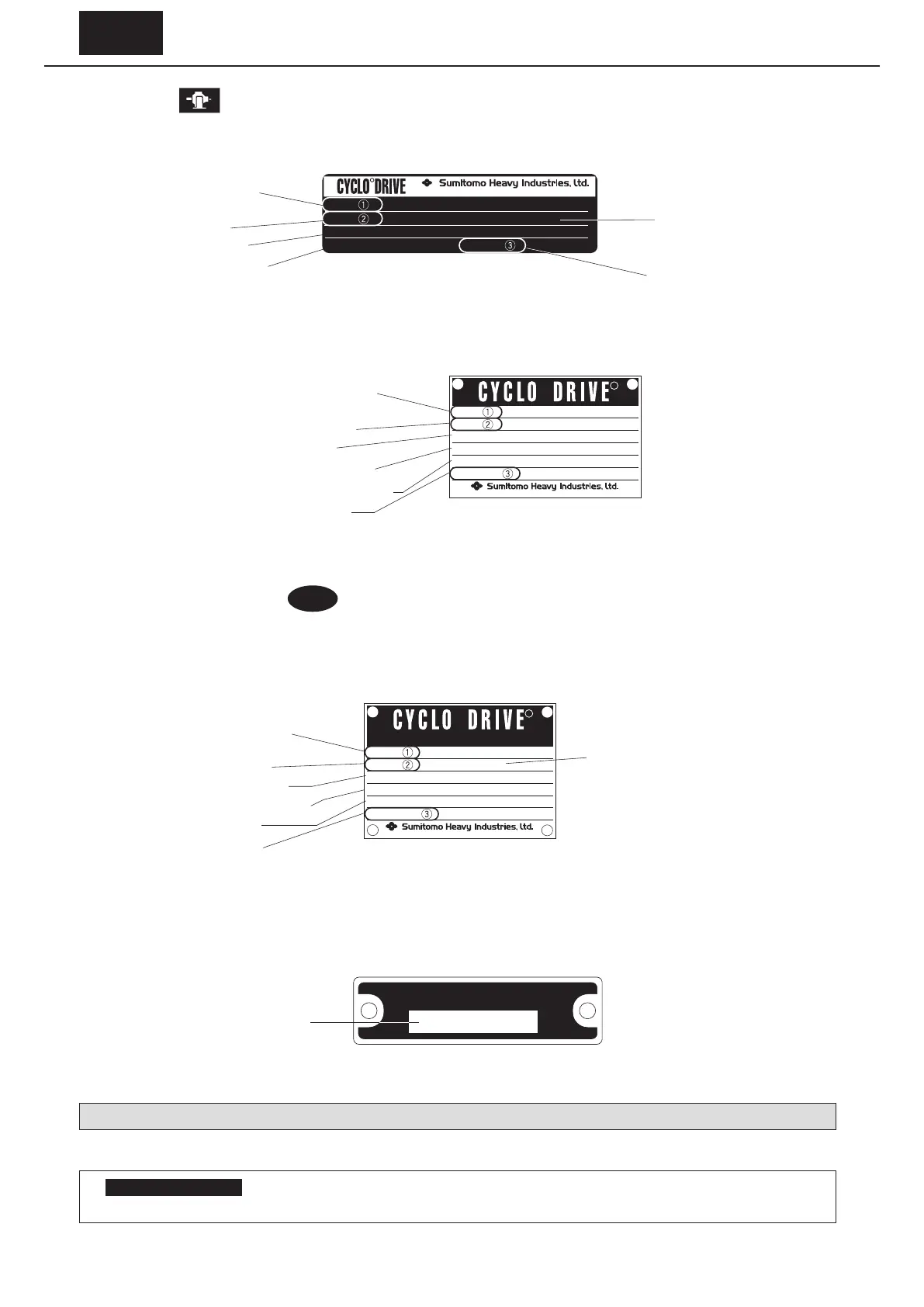

Figure 1-3 Reducer nameplate (type 1)
■
Nameplate type 2
[1] Reducer nomenclature
(See P5)
[2] Reduction ratio
- Service factor
- Input capacity, speed
- Allowable output torque
[3] Serial number
MODEL
SF
JAPAN
OUTPUT RATING
RATIO
RATIO
INPUT kW
r/min
J A P A N
SERIAL NO.
OUTPUT TORQUE
SERVICE FACTOR
MODEL
VOLTS
kW
P
φ
TYPE
FRAME
TIME RATING
M/B INS.CLASS
JISC4004
B.TORQUE
N
•
m
N
•
m
N
•
m
Hz
M.AMP
r/min
B.AMP
SERIAL NO.
INPUT
kW
N
•
m
SERIAL NO.
SF
r/min
OUTPUT RATING
MODEL
RATIO
R
R
JAPAN
R
Figure 1-4 Reducer nameplate (type 2)
(3) For torque limiter equipped
Application
Product
(motor unit nameplate is the same as in gure 1-2.)
■
Gear unit nameplate
Conrm that the preset torque value marked in the gear unit nameplate and the preset torque value marked on the adjustment
indicator plate (see P84) are the same as the required specication.
[1] Gearmotor nomenclature
(See P5)
[2] Reduction ratio
- Input capacity, speed
- Allowable output torque
- Torque setpoint
[3] Serial number
- Service factor
Figure 1-5 Torque limiter nameplate (gear unit nameplate)
（
RATIO ）
INPUT kW N
•
m
r/min
（
SERIAL NO. ）
OUTPUT TORQUE
SERVICE FACTOR
（
MODEL ）
N
•
m
PRE-SET TORQUE N
•
m
R
JAPAN
with TORQUE LIMITER
■
Alarm torque nameplate
With 2-point signal conguration (double safety specication), an alarm torque nameplate is attached near the nameplate in gure 1-5.
Alarm torque
Figure 1-6 Torque Limiter Nameplate (Alarm torque nameplate)
ALARM TORQUE
N
•
m
1-2 Checking Lubrication Method
Refer to “8-2 Conrmation of Lubrication Method” (P37) to conrm the lubrication method.
Oil lubricated machines are shipped with oil removed. Before operating, make certain to oil with the recommended lubricating oil.
(See P38–40)
