8. Daily Inspection and Maintenance
(4) Procedures for Filling and Discharging Grease for Open Bearings
See construction diagram 8-7.
[1] Remove the discharge port plug, and discharge the old grease. While the machine is running replenish with new grease through
the grease tting.
(Grease change will be incomplete if replenishing is done while the machine is stopped.)
[2] Run the machine for approximately 10 minutes after the grease is inserted. Then fasten the discharge port plug.
- Overlling could cause the bearing to overheat, grease to leak and other problems. Be careful.
- Do not think that it is allowable to replenish with a large quantity to extend the replenishment interval.
- Please maintain the machine properly. Neglecting replenishment when resuming operation, or periodic replenishment when the
machine is operating could lead to abnormal wear, bearing noise, bearing burnout, and other problems.
Load side cover
Motor shaft
Bearing
Bearing cover
Discharge port
Grease tting
Motor shaft
Bearing
Bearing cover
Motor ange bracket
Slinger collar
Discharge port
Gear side
Grease tting
Gear Side Bearing Construction

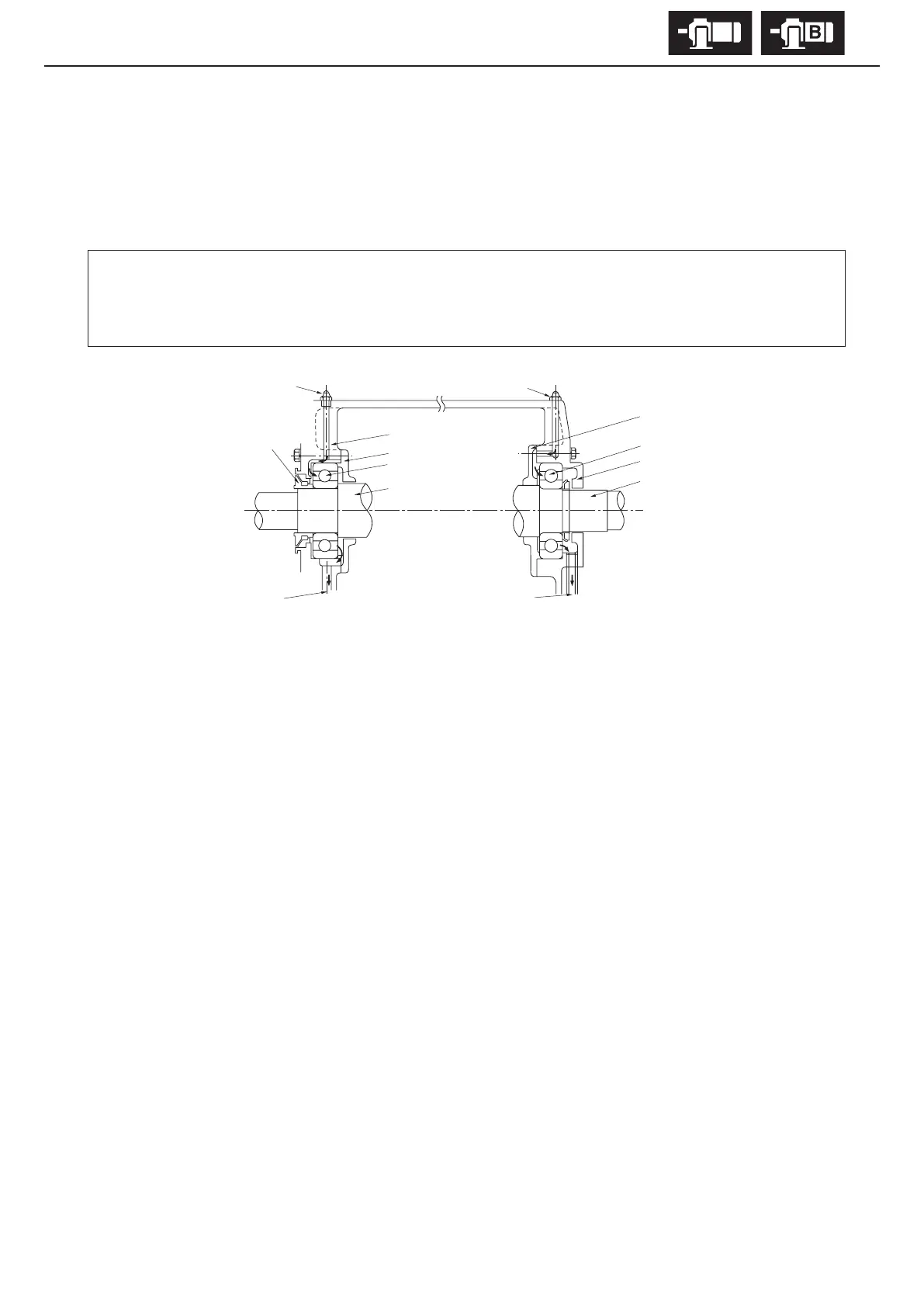

Figure 8-7 Open Bearing Unit Construction
Anti-Load Side Bearing Unit Construction
