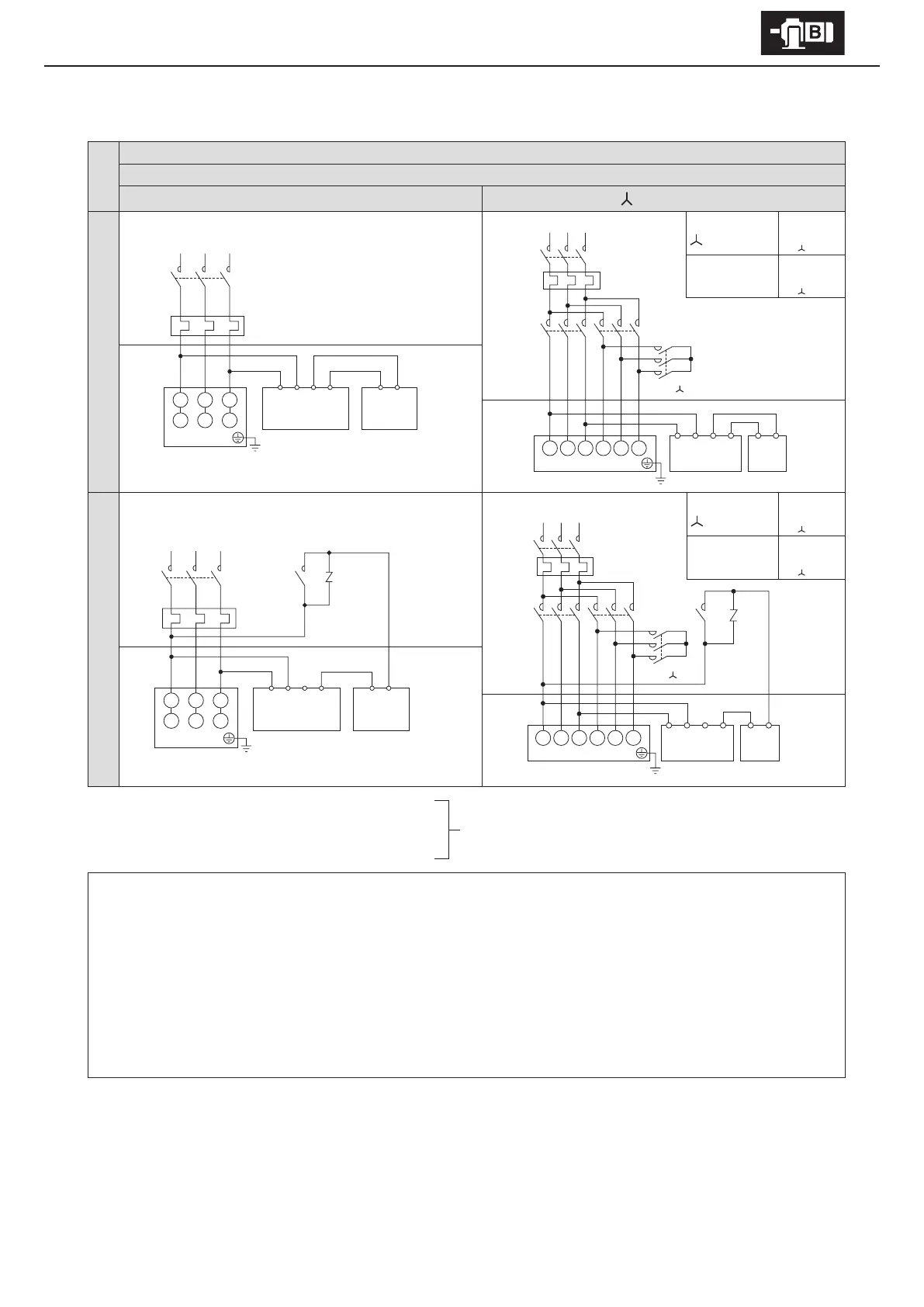

6. Wiring
■
With brake. 3-phase power source. Operates rotating in one direction.
Premium-eciency, 3-phase motor
FB-8E – FB-15E
8 lead wires
Direct on-line starting
starting
Normal braking circuit
At start
Wiring
MC
M
ON
MC
OFF
MC
ON
When acceleration
is completed
wiring
MC
M
ON
MC
ON
MC
OFF
Control Panel Motor
Quick braking circuit
At start
Wiring
MC
M
ON
MC
OFF
MC
ON
When acceleration
is completed
wiring
MC
M
ON
MC
ON
MC
OFF
Control Panel Motor
MC: Electromagnetic contactor
OLR: Overload protection device or electronic thermal relay
VR: Varistor (for protecting contact points, rectier, etc.)
Customer to prepare.
- This diagram shows cases for motors with standard Japanese domestic specications. Please consult with us for motors with
overseas specications.
- For brake types, see Table 1-6 on P7.
- Brake action delay time is dierent for normal and quick braking circuits.
Table 7-2 on P35 shows action delay time. Choose the circuit that matches work requirements.
- Use a quick braking circuit to improve hoisting equipment and stopping precision.
- Use a quick braking circuit when a phase-advancing capacitor is mounted.
- For information on electromagnetic contactors and varistors for quick braking circuits, see Table 6-4 on P32.
- For quick braking circuits, gang the brake circuit’s electromagnetic contactor to the motor’s electromagnetic contactor.
