Sumitomo CYCLO Service Manual

32
1. Inspection upon Delivery
Common
2
Introduction: How to Refer to the Maintenance Manual, Table of Contents
CAUTION
- Unpack the unit after verifying that it is positioned right side up; otherwise, injury may result.
- Verify that the unit received is in fact the one you ordered. Installing the wrong unit may result in personal injury or
equipment damage.
- Do not remove the nameplate.
Verify the items listed below upon receiving the product. If a nonconformity or problem is found, contact our nearest agent,
distributor, or sales oce.
[1] Does the information on the nameplate conform to what you ordered?
[2] Was any part broken during transport?
[3] Are all bolts and nuts tightened rmly?

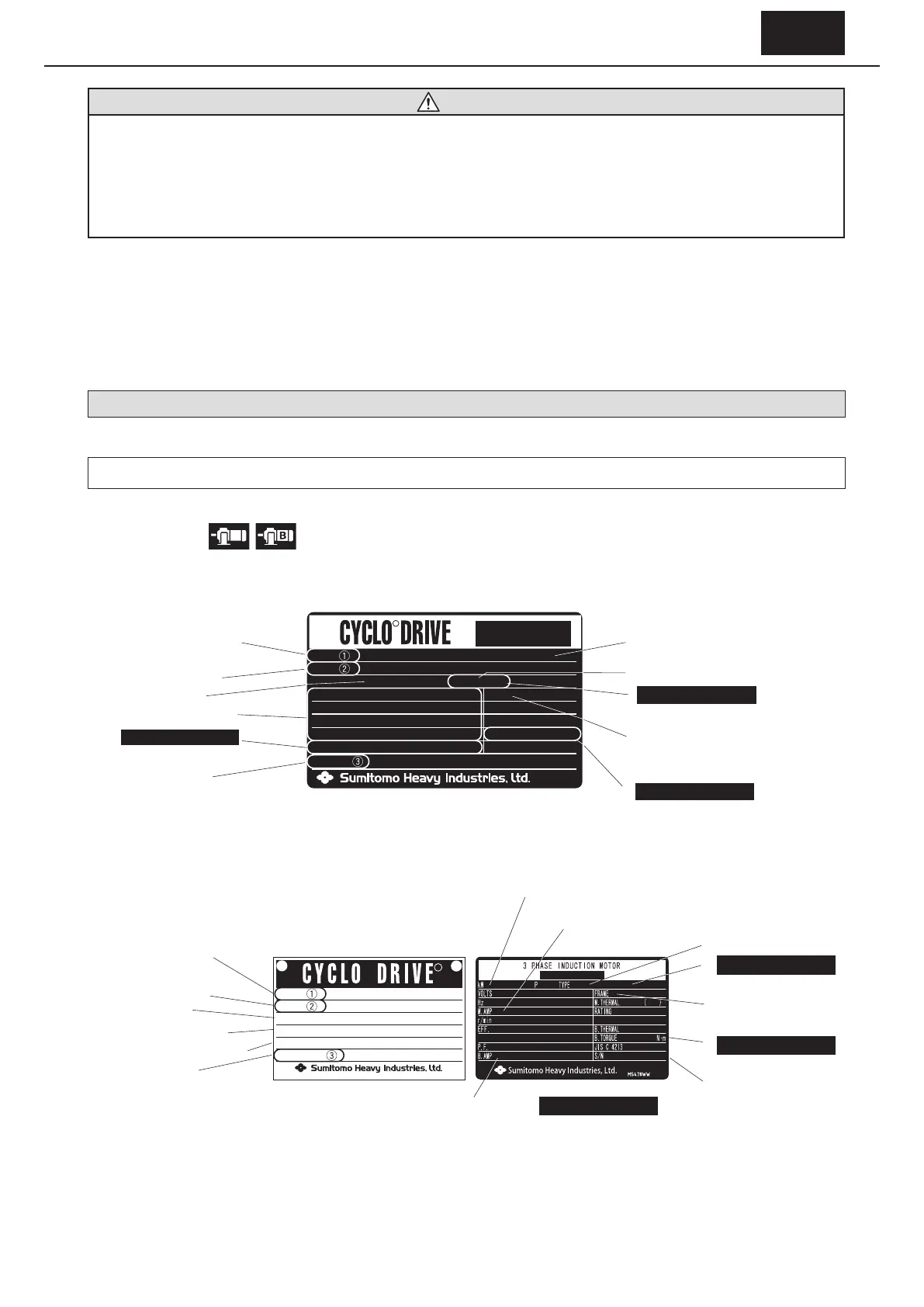

1-1 Reading the Nameplates
There are two main types of nameplates: type 1 and type 2. Representative examples are shown below. Please observe them by type.
When contacting the company, please provide [1]. Gearmotor or reducer nomenclature, [2]. Reduction ratio, and [3]. Serial number.
(1) For gearmotor
■
Nameplate type 1: Gear unit and motor unit are combined.
MODEL
SF
JAPAN
OUTPUT RATING
RATIO
RATIO
INPUT kW
r/min
J A P A N
SERIAL NO.
OUTPUT TORQUE
SERVICE FACTOR
MODEL
VOLTS
kW
P
φ
TYPE
FRAME
TIME RATING
M/B INS.CLASS
JISC4004
B.TORQUE
N
•
m
N
•
m
N
•
m
Hz
M.AMP
r/min
B.AMP
SERIAL NO.
INPUT
kW
N
•
m
SERIAL NO.
SF
r/min
OUTPUT RATING
MODEL
RATIO
R
R
JAPAN
R
[1] Gearmotor nomenclature
(See P5)
[2] Reduction ratio
- Motor capacity
- Motor characteristics
-
For motor with brake
Brake current value
[3] Serial number
- Motor nomenclature (see P7)
-
For motor with brake
Brake type (see P7)
- Motor frame size
Figure 1-1 Gearmotor nameplate (type 1)
-
For motor with brake
Brake torque
- Service factor
■
Nameplate type 2: Separate nameplates for gear unit and motor unit.
[1] Gearmotor nomenclature
(See P5)
[2] Reduction ratio
- Service factor
- Input capacity, speed
- Allowable output torque
[3] Serial number
- Motor nomenclature (see P7)
-
For motor with brake
Brake type (See P7)
- Motor frame size
-
For motor with brake
Brake torque
[3] Serial number
MODEL
SF
JAPAN
OUTPUT RATING
RATIO
RATIO
INPUT kW
r/min
J A P A N
SERIAL NO.
OUTPUT TORQUE
SERVICE FACTOR
MODEL
VOLTS
kW
P
φ
TYPE
FRAME
TIME RATING
M/B INS.CLASS
JISC4004
B.TORQUE
N
•
m
N
•
m
N
•
m
Hz
M.AMP
r/min
B.AMP
SERIAL NO.
INPUT
kW
N
•
m
SERIAL NO.
SF
r/min
OUTPUT RATING
MODEL
RATIO
R
R
JAPAN
R
- Brake current value
For motor with brake
- Motor capacity
- Motor characteristics
Figure 1-2 Gearmotor nameplate (type 2)
(Gear unit nameplate) (Motor unit nameplate)

Sumitomo CYCLO Specifications

General

Control Method	PWM (Pulse Width Modulation)
Cooling Method	Forced air cooling
Protection Features	Overcurrent Protection, Overvoltage Protection, Overtemperature Protection, Short Circuit Protection
Operating Temperature	0°C to 40°C
Humidity	20% to 90% (non-condensing)
Dimensions	Varies by model
Weight	Varies depending on model (Consult specific datasheet)
Storage Temperature	-20°C to +60°C
