5. Coupling with Other Machines
Common
5-2 Mounting Connected Equipment
- When mounting connected equipment, do not apply impact or excessive axial load to the shaft. The bearing could be damaged, or
the collar could come o.
- Shrinkage t is recommend.
(1) When using a coupling

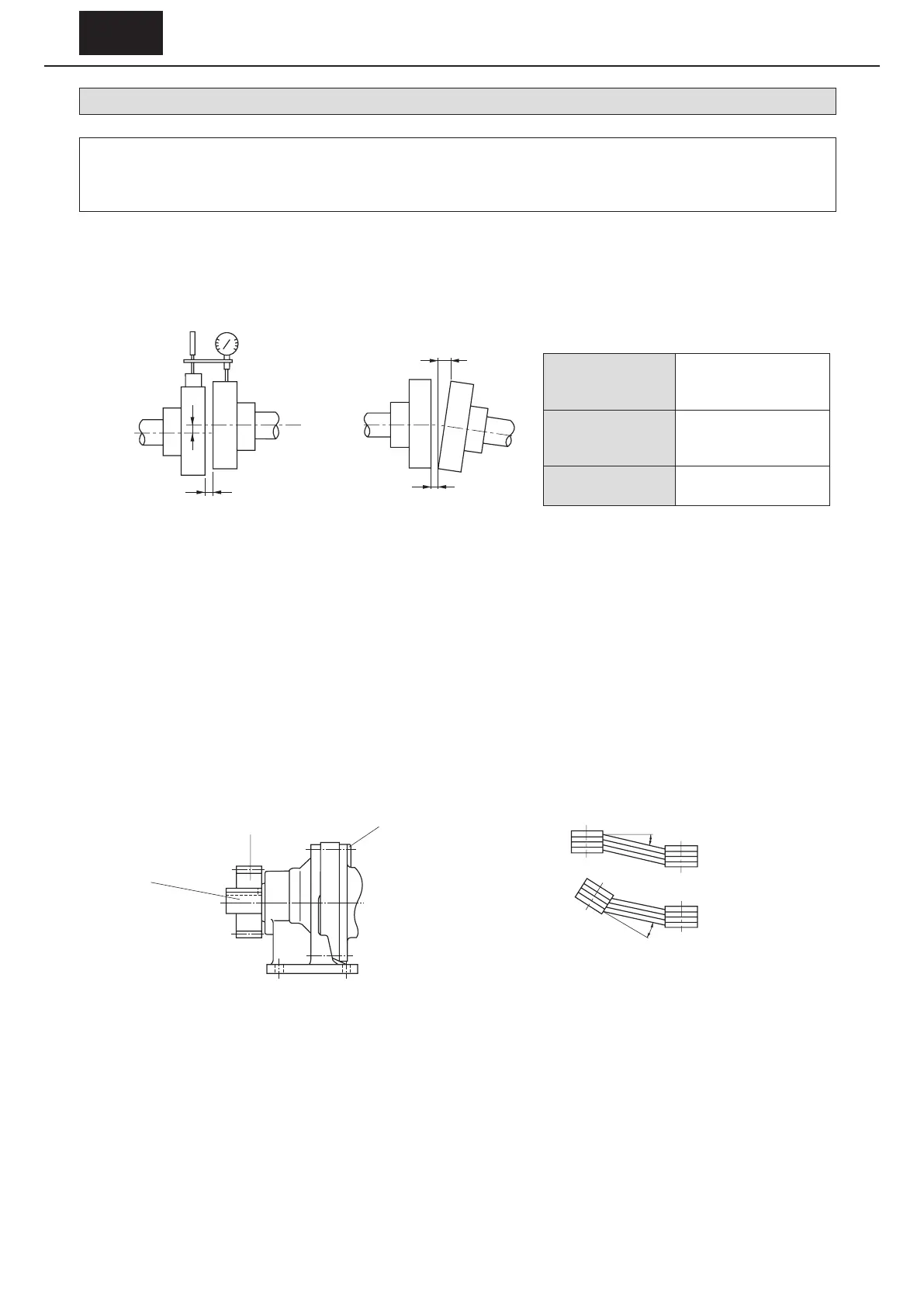

The alignment accuracy (A, B, X) in gure 5-1 should be no greater than that shown in Table 5-3.
(2) When using chains, sprockets, or gears
- When using a chain, attach so that the chain tension angle is perpendicular to the shaft.
- Refer to the chain catalog or other reference for chain tension.
- The pitch circle of the sprocket and gear shall be more than three times of the shaft diameter.
- The working load point of the sprocket or gear should go from the center of the shaft to this product. (See gure 5-2)
(3) When using a V belt
- Over-tightening the V belt will damage the shaft and bearing. Refer to the V belt catalog or other reference for V belt tension.
- The parallelism, eccentricity β of the two pulleys should be within 20´. (See gure 5-3)
- When using multiple V belts, use a matched set having the same circumferential length.
Table 5-3 Alignment Precision for Flexible Coupling
Allowable tolerance A
0.1 mm or
manufacturer-specied
value
Allowable tolerance B
0.1 mm or
manufacturer-specied
value
X
manufacturer-specied
value
A
X
B
Figure 5-1
Figure 5-2 Figure 5-3
ConnectorProduct
t
β
β
