Sumitomo CYCLO - Plugging Operation

24
6. Wiring
■

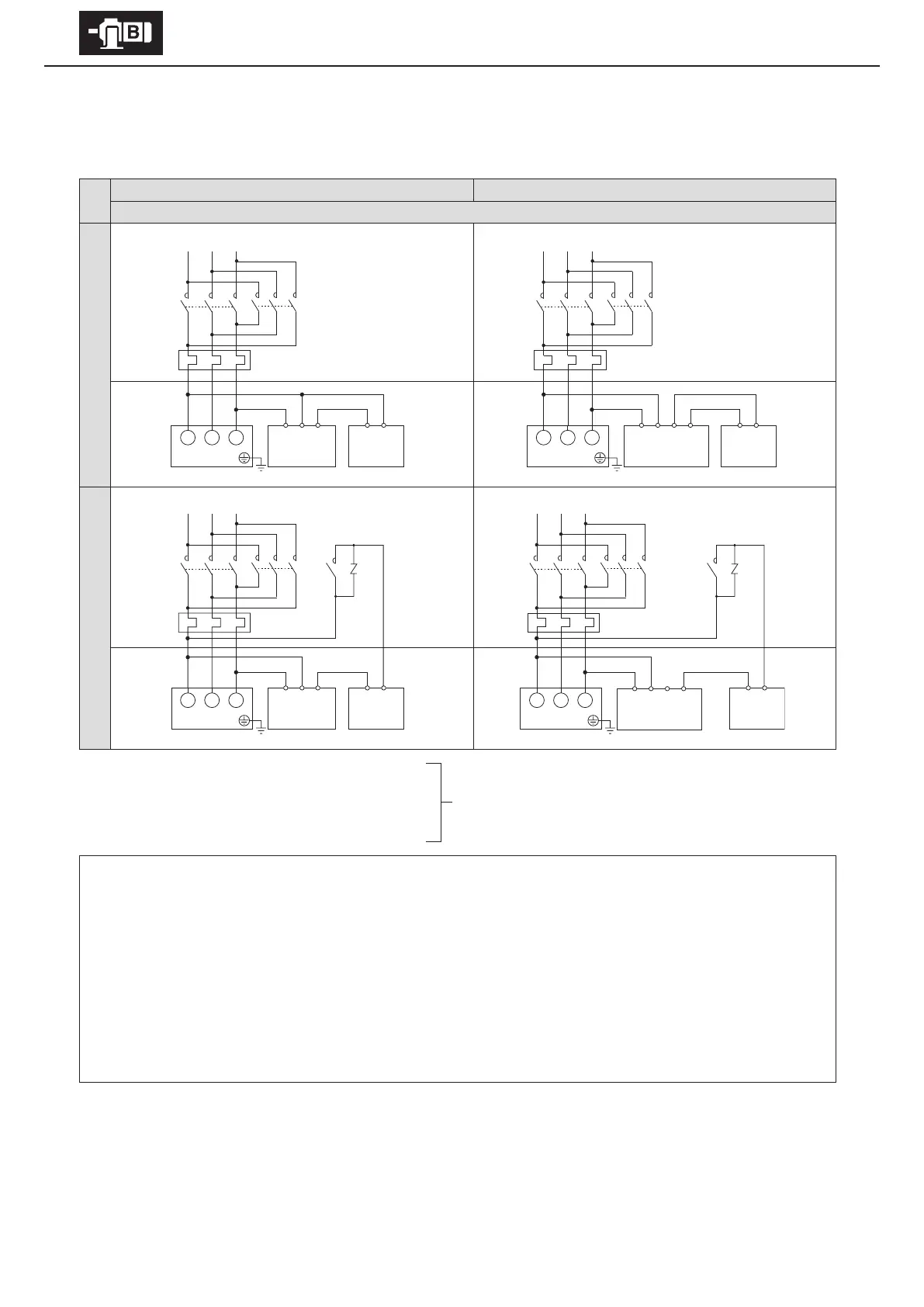

With Brake. 3-phase motor. Plugging operation
3-phase motor
Premium-eciency, 3-phase motor
High-eciency, 3-phase motor
FB-01A1 – FB-05A1 FB-1D, FB-1E – FB-5E
5 lead wires
Normal braking circuit
Control Panel Control Panel
Motor Motor
Quick braking circuit
Control Panel Control Panel
Motor Motor
Electromagnetic contactor for normal and reverse rotation
MC: Electromagnetic contactor
OLR: Overload protection device or electronic thermal relay
VR: Varistor (for protecting contact points, rectier, etc.)
Customer to prepare.
- This diagram shows cases for motors with standard Japanese domestic specications. Please consult with us for motors with
overseas specications.
- For brake types, see Table 1-6 on P7.
- Brake action delay time is dierent for normal and quick braking circuits.
Table 7-2 on P35 shows action delay time. Choose the circuit that matches work requirements.
- Use a quick braking circuit to improve hoisting equipment and stopping precision.
- Use a quick braking circuit when a phase-advancing capacitor is mounted.
- For information on electromagnetic contactors and varistors for quick braking circuits, see Table 6-4 on P32.
- For plugging operations using a quick- braking circuit, gang the brake circuit’s electromagnetic contactors to the motor’s normal
and reverse rotation electromagnetic contactors.
U V W
124MN
Rectifier Brake
U V W
124MN
Rectifier Brake
U V W
MN
Brake
U V W
123
4M
N
Rectifier Brake
Motor
VR
Motor
MC
MC
1234
Rectifier
RS
T
OLR
RS
T
OLR
Motor
RS
T
OLR
VR
Motor
RS
T
OLR
Normal rotation
Normal rotation
Reverse rotation Reverse rotation
Normal rotation
Normal rotation
Reverse rotation Reverse rotation
