Sumitomo CYCLO Service Manual

7574

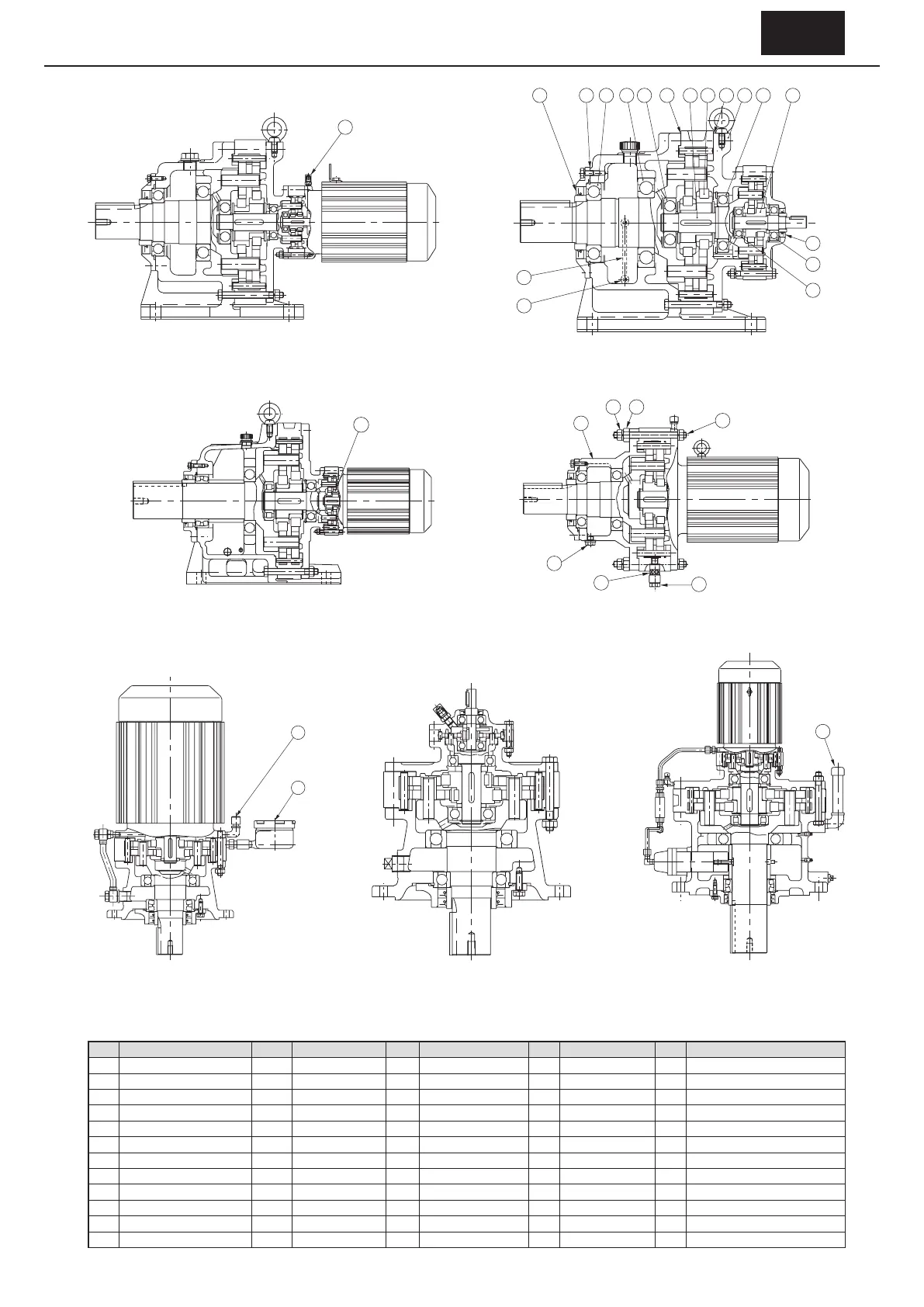

10. Construction Drawings
Common
Table10-1 Gear Unit, Principal Parts Single Reduction, Double Reduction
Code Part Name Code Part Name Code Part Name Code Part Name Code Part Name
1 Slow speed shaft (Output shaft) 13 Spacer ring 25 Oil seal 37 Parallel key 49 Spacer ring
2 Collar 14 Gasket B 26 High speed shaft 38 Gland 50 Eye-bolt
3 Oil seal 15 End plate 27 Collar 39 Flanged casing 51 Oil ll cup
4 Slow speed end cap 16 Spacer ring 28 Spacer ring 40 Plunger pump 52 Intermediate shaft bearing A
5 Retaining ring 17 Gasket C 29 High speed shaft bearing B 41 Air vent plug 53 Intermediate shaft
6 Gasket A 18 Air vent plug 30 Retaining ring for opening 42 Oil signal 54 Intermediate cover
7 Slow speed shaft bearing A 19 Bearing for eccentric 31 Upper bolt 43 Oil slinger 55 Intermediate shaft bearing B
8 Horizontal casing 20 Internal cover 32 Ring gear housing 44 Oil gauge 56 Eccentric cam (double)
9 Oil lter plug 21 Slow speed shaft roller 33 Cycloid disc 45 Plug (Oil drain port) 57 Grease tting (with cap)
10 Slow speed shaft bearing B 22 Slow speed shaft pin 34 Eccentric 46 Spacer ring 58 Bolts for ring gear housing (Flange type)
11 Retaining ring for shaft 23 Cooling fan 35 Ring gear roller 47 Cam 59 Disassembly prevention nut (Flange type)
12 High speed shaft bearing A 24 Fan cover 36 Ring gear pin 48 Plug (Oil drain port) 60 Spacer replacement nut (Flange type)
Figure 10-7 Type CHH (Horizontal, Reducer), Double Reduction
(Example: Frame size 6185DB)
3 6 7 10 52 14 53 19 17 54 55 56
25
29
12
44
48
Figure 10-9 Type CHFM (Horizontal, Gearmotor), Single Reduction
(Example: Frame size 6165)
39
59 60
58
48
44
48
Figure 10-6 Type CHHM (Horizontal, Gearmotor), Double Reduction
(Example: Frame size 6185DA)
57
Figure 10-8 Type CHHM (Horizontal, Gearmotor), Double Reduction
(Example: Frame size 6225DB)
19
Figure 10-10 Type CVVM (Vertical, Gearmotor),
Single Reduction (Example: Frame size 6145)
18
51
Figure 10-11 Type CVV (Vertical, Reducer),
Double Reduction
(Example: Frame size 6135DA)
Figure 10-12 Type CVVM (Vertical, Gearmotor),
Double Reduction
(Example: Frame size 6225DA)
9
