10. Construction Drawings
78

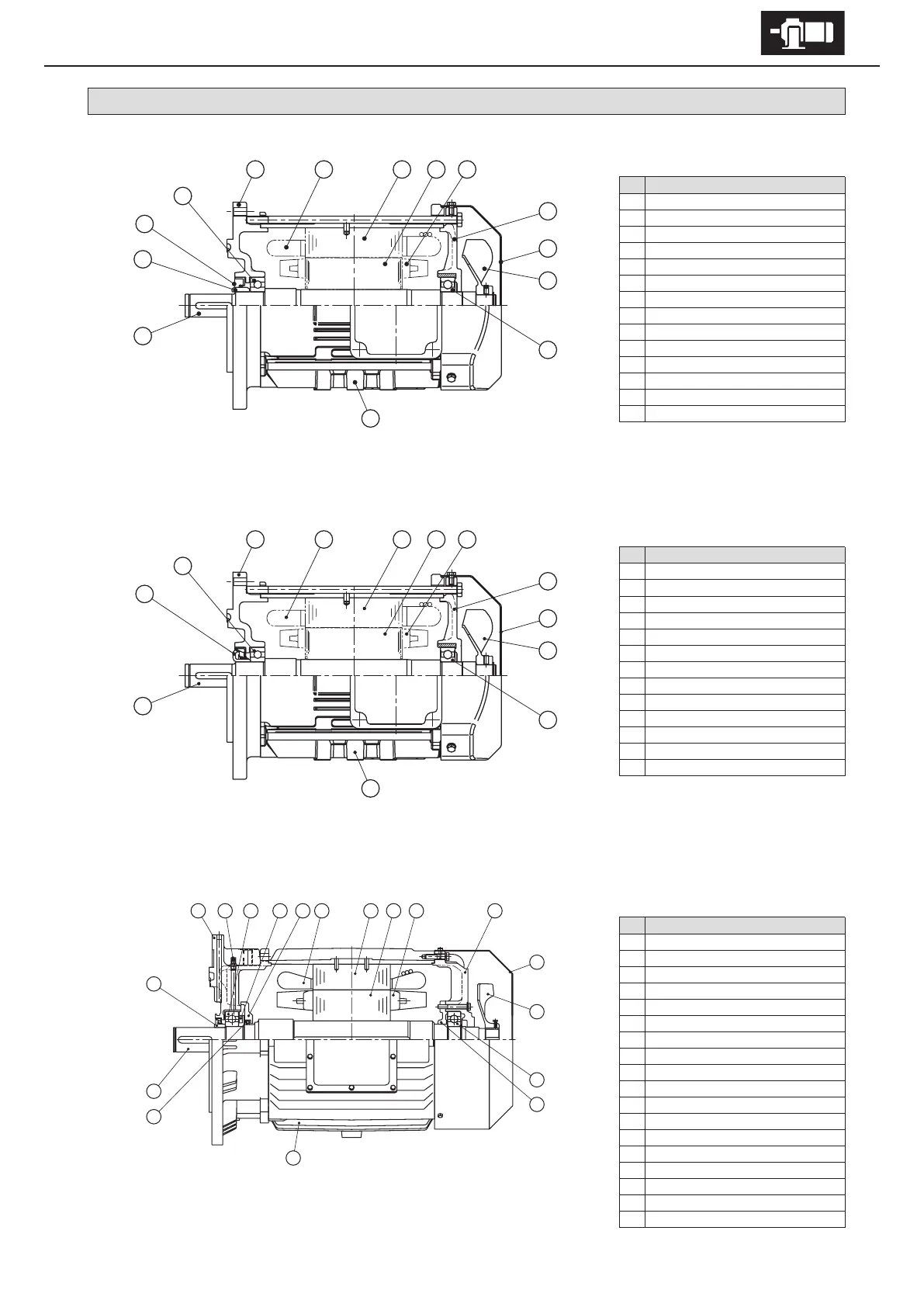

10-5 Motor Unit Construction Drawing
Figure 10-19 Direct-coupled motor for CYCLO Drive (Sealed bearing, oil seal structure)
(Example: N-100L 2.2kW 4P)
Figure 10-20 Direct-coupled motor for CYCLO Drive (Sealed bearing, Slinger collar structure)
(Example: N-100L 2.2kW 4P)
Figure 10-21 Direct-coupled motor for CYCLO Drive (Open bearing structure)
(Example: N-200LS 30kW 6P)
Table10-6 Principal Parts of Motor
Code Parts Name
1 Anti-load side motor shaft bearing
2 Fan
3 Fan cover
4 Anti-load side cover
5 Rotor conductor
6 Rotor core
7 Stator core
8 Stator windings
9 Motor ange bracket
10 Load side motor shaft bearing
11 Oil seal
12 Oil seal collar
13 Motor shaft
14 Frame
Table10-7 Principal Parts of Motor
Code Parts Name
1 Anti-load side motor shaft bearing
2 Fan
3 Fan cover
4 Anti-load side cover
5 Rotor conductor
6 Rotor core
7 Stator core
8 Stator windings
9 Motor ange bracket
10 Load side motor shaft bearing
11 Slinger collar
12 Motor shaft
13 Frame
Table10-8 Principal Parts of Motor
Code Parts Name
1 Bearing cover
2 Anti-load side motor shaft bearing
3 Fan
4 Fan cover
5 Anti-load side cover
6 Rotor conductor
7 Rotor core
8 Stator core
9 Stator windings
10 Bearing cover
11 Oil drain collar
12 Load side motor shaft bearing
13 Grease tting
14 Motor ange bracket
15 Slinger collar
16 Motor shaft
17 Oil seal
18 Frame
12
10
11
1
2
3
4
56789
13
14
10
11
1
2
3
4
56789
12
13
1
2
3
4
5678910111214
15
16
17
18
13
