8. Daily Inspection and Maintenance
Common
(3) Oil Fill Quantity
Table 8-7, 8-8 provides approximate oil ll quantities. There are individual dierences in actual quantities due to dierence in each
structure. Make sure to check that the oil level reaches the top red line on the oil gauge, because the oil quantity may be more or less
than requirement even if the oil is lled according to Table 8-7, 8-8.
Table 8-7 Approximate Oil Fill Quantity (L)
Low reduction ratio
series
Frame
size
613
□
614
□
616
□
617
□
Single Reduction
Frame size 613
□
614
□
616
□
617
□
618
□
619
□
6205 6215 6225 6235 6245 6255 6265 6275
Horizontal 0.7 0.7 1.4 1.9 Horizontal 0.7 0.7 1.4 1.9 2.5 4.0 5.5 8.5 10 15 16 21 29 56
Vertical 1.0 1.0 2.3 4.3 Vertical 1.1 1.1 1.0 1.9 2.0 2.7 5.7 7.5 10 12 15 35 43 (60)
Double Reduction
Frame size 616
□
DC 617
□
DC 618
□
DB 619
□
DA 619
□
DB
6205DA
6205DB
6215DA
6215DB
6225DA
6225DB
6235DA
6235DB
6245DA
6245DB
6255DA
6255DB
6265DA 6275DA
Horizontal 1.5 2.4 3.5 5.8 6.0 6.0 10 11 17 18 23 32 60
Vertical 1.0 1.9 2.0 2.7 2.7 11 14 18 23 29 42 51 (60)
Table 8-8 Oil Fill Quantity (L) for Horizontal Chain Flight Sludge Collector Specication
Double
Reduction
Frame size 613
□
DB 613
□
DC 614
□
DB 614
□
DC 616
□
DA 616
□
DB 617
□
DA 617
□
DB 618
□
DA
Horizontal 0.8 0.8 0.8 0.8 1.5 1.5 2.4 2.4 3.0
Note : 1. The symbol
□
in frame size can be "0", "5” or "H".
2. Depending on the reduction ratio, 2-stage, vertical type will require grease.
3. Parentheses indicate use of a motorized trochoid pump
4. Horizontal type indicates the following nomenclature: PHHM, CHH, CHHM, CHHX, CHHXM, CHHJ, CHHJM. Vertical type
indicates the following nomenclature: PVVM, CVV, CVVM, CVVX, CVVXM, CVVJ, CVVJM.
For other nomenclature and mounting directions that are outside standard specication, see the delivery specications.
(4) Oil Fill Procedure
■
Oil Fill Procedure for Horizontal Type
[1] Remove the ller plug.
[2] Pour oil into the oil ller port, keeping an eye on the oil gauge to check the oil level.
[3] Conrm that the oil level is up to the top red line on the oil gauge.
[4] Replace the ller plug.

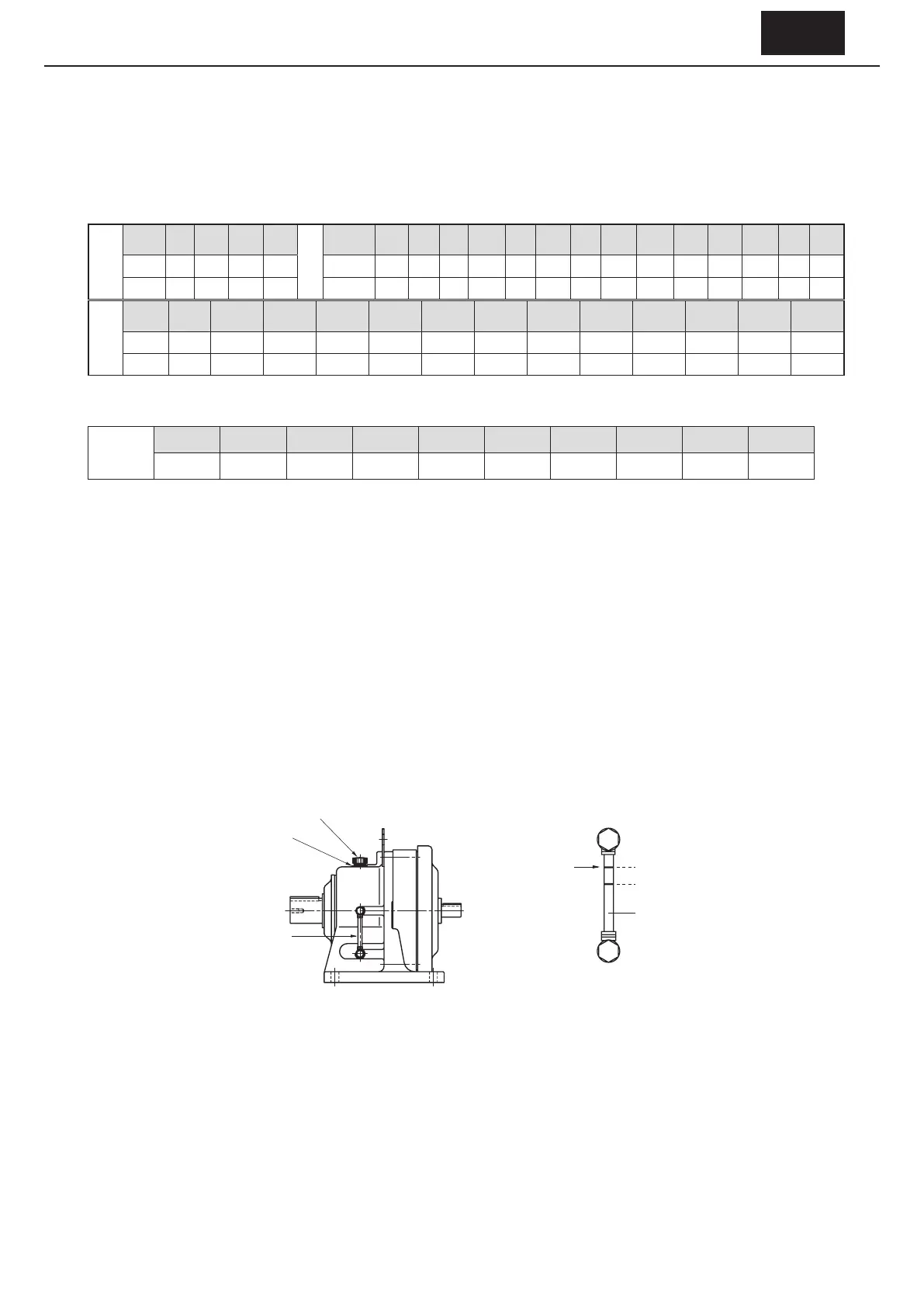

Figure 8-1 Horizontal Types
Oil level
(At rest)
Top red line
Bottom red line
Oil gauge
Oil gauge
Oil filler port
Oil filler plug
