Sumitomo CYCLO Service Manual

95
Application
Product
18. Construction Drawings
①
①
⑦
②
③
⑥
④
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
⑯
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑤
Table18-1 Gear Unit, Principal Parts (Models C14 – 28VM)
No. Parts Name No. Parts Name
1 CYCLO Drive 9 Oil seal
2 A-type grease tting 10 Collar
3 Bearing B *11 End plate
4 Base (1) *12 Rigid anged shaft coupling
5 Shaft 13 Base (2)
6 Snap ring for opening 14 Fitting up bolt
7 Plug 15 Bearing A
8 B-type grease tting 16 Hexagon head bolt, nut
Note : Parts indicated by * are only for C14VM, C24VM, C17VM and
C27VM.
Table18-2 Gear Unit, Principal Parts (C3VM)
No. Parts Name No. Parts Name
1 CYCLO Drive 8 3V Coupling (2)
2 Hexagon head bolt 9 3V shaft
3 3V base 10 Dust-tight cover
4 Cover 11 Oil seal
5 Gasket 12 Bearing
6 Grease tting 13 Drain plug
7 3V Coupling (1) 14 Oil seal
C14VM, C17VM
C24VM, C27VM
C15VM, C18VM
C25VM, C28VM

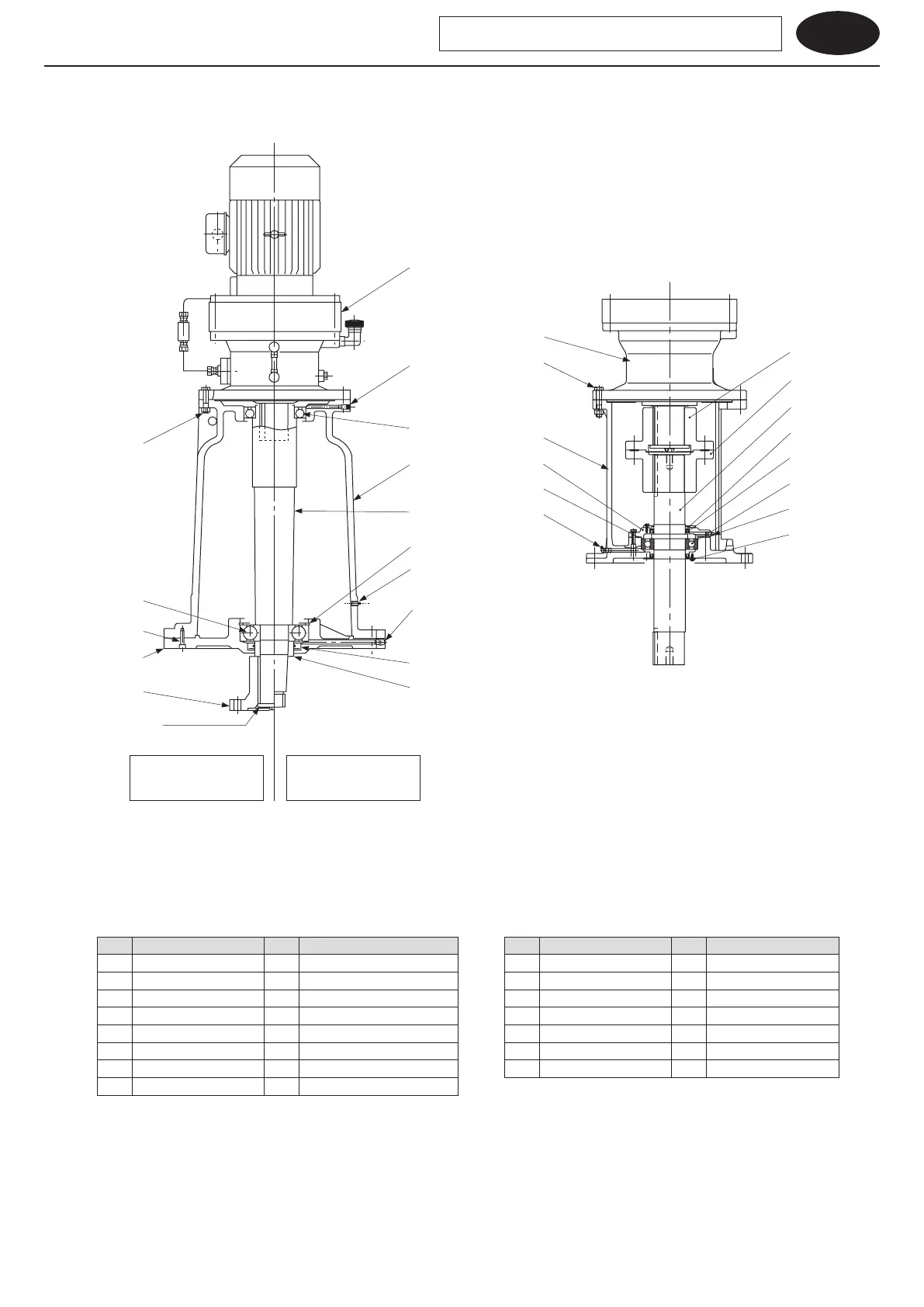

Figure 18-1 Models C14 – 28VM
Figure 18-2 C3VM
CYCLO Drive with Vertical Special Base Mount
