Sumitomo CYCLO - 16. Coupling with Other Machines CYCLO Drive with Special Vertical Base Mount

92
Application
Product
CAUTION
- When coupling the gearmotor or reducer with a load, check that centering is within the specied limits. Correctly tighten
bolts on the coupling before operation; otherwise, injury may result because of misalignment.
- Conrm the rotation direction before coupling the unit with the driven machine. For C15VM, C18VM, C25VM and C28VM,
check the direction of the shaft end screw. (Standard specication is left-handed screw.) Incorrect rotation direction may
cause personal injury or damage the equipment.

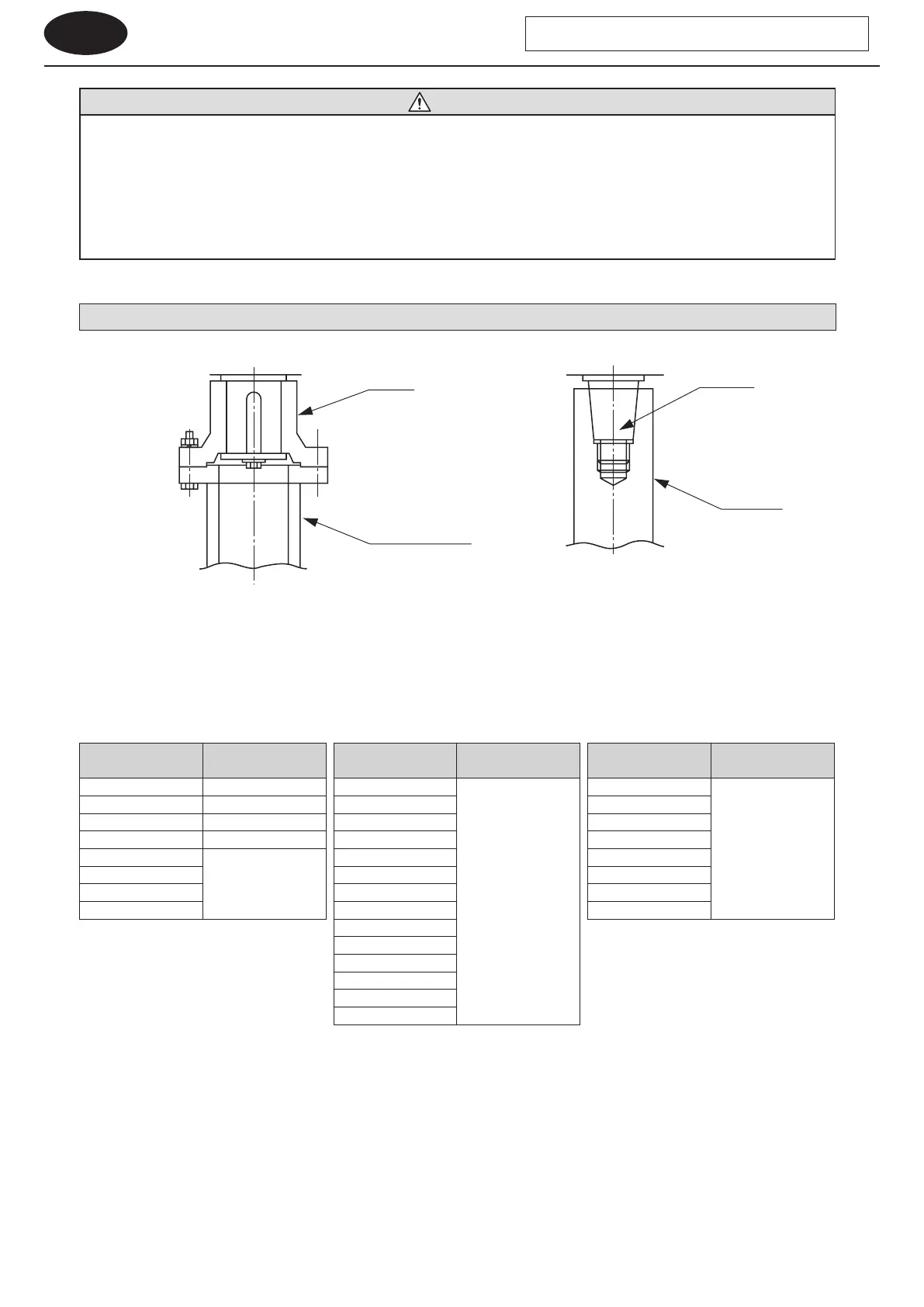

16-1 Agitator Shaft Assembly
The connected agitator’s shaft end shape will dier based on product model. Connect in accordance with the product’s coupling shape.
Coupling
Agitator shaft
(When pipe shaft)
Agitator shaft
Taper shaft
Figure 16-1 Example of Agitator Shaft Assembly
(C14VM, C17VM, C24VM, C27VM)
Figure 16-2 Example of Agitator Shaft Assembly
(C15VM, C18VM, C25VM, C28VM)
Note : For C14VM, C24VM, C17VM, C27VM, use coupling bolts with the strength class shown in Table16-1.
Table 16-1 Coupling Bolts
C14VM C17VM C24VM, C27VM
Frame Size JIS Strength Class Frame Size JIS Strength Class Frame Size JIS Strength Class
609
□
, 610
□
8.8 and above 609
□
, 610
□
8.8 and above
608
□
8.8 and above
612
□
12.9 and above 612
□
609
□
, 610
□
, 611
□
613
□
10.9 and above 613
□
, 614
□
612
□
614
□
12.9 and above 616
□
613
□
616
□
10.9 and above
617
□
614
□
617
□
618
□
616
□
618
□
619
□
617
□
619
□
6205 618
□
6215
6225
6235
6245
6255
6265
Note : The symbol
□
in frame size can be “0” or “5”. For double reduction and triple reduction types, DA, TA, etc. will be appended to the
frame size.
