f. Pivot the release lever down and into the locked position at the side of the
socket.
The release lever must lock down the retainer plate as you close the lever. See
FIGURE 3-19 on page 27 for a view of how the lever locks down the edge of the
plate.
12. If re-using the existing heatsink, clean and regrease it.
Caution – New heatsinks have a layer of thermal grease applied at the factory.
Adding additional thermal grease can damage the system. Follow this step only if
you are re-using a previously installed heatsink.
a. Use an alcohol pad to clean all the old thermal grease from the component
surface. Also, clean the dust from the heatsink fins.
Caution – Ensure that the thermal grease in the syringe supplied with the CPU is
pliable and not stiff. If your syringe of grease has aged, the grease might be too stiff
b. Use one syringe of thermal grease (0.2 ml/0.5 g) to carefully apply grease to
the top of the CPU in three lines in the pattern shown in
FIGURE 3-21.

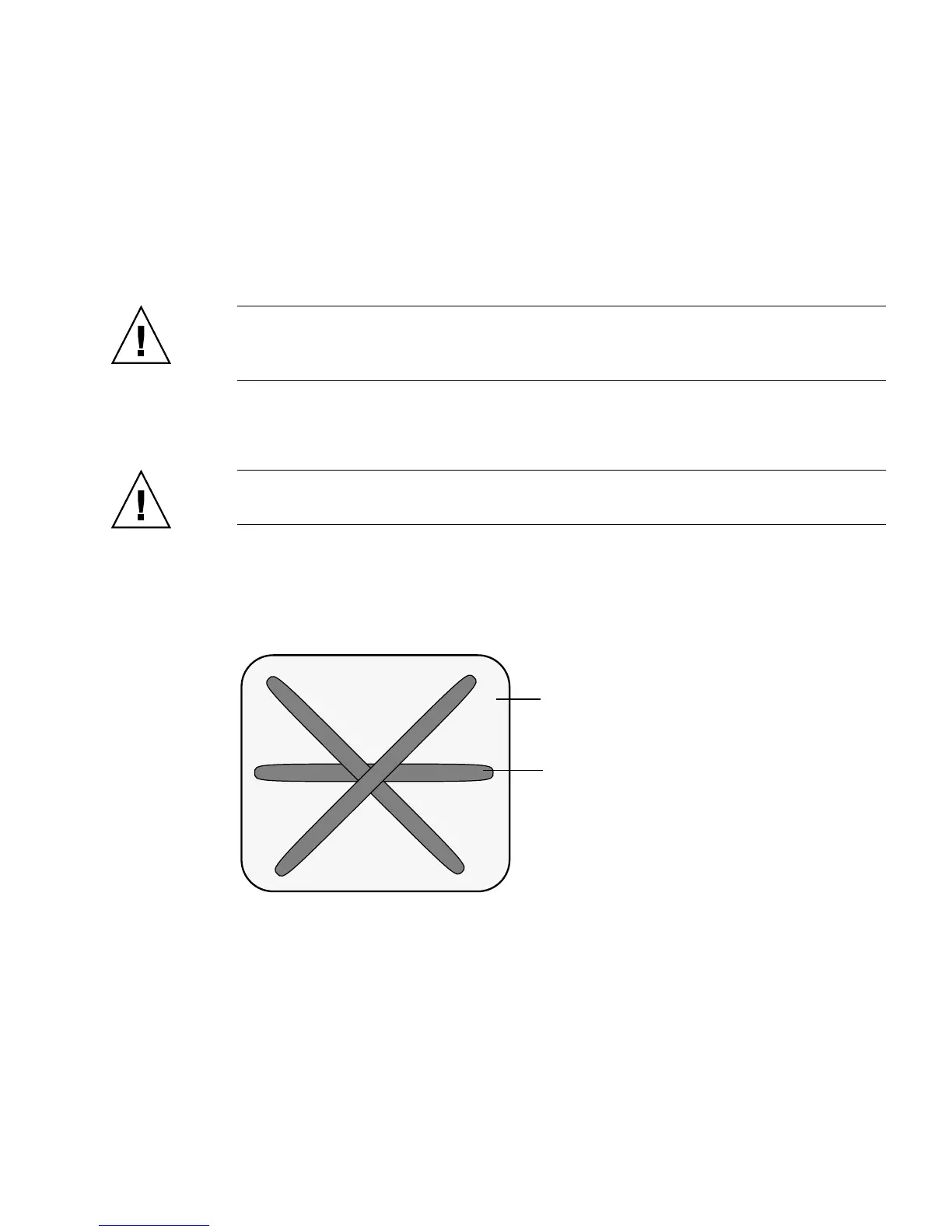

FIGURE 3-21 Required Pattern for Thermal Grease Application
CPU surface
Lines of thermal grease
