3-32 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
7. Disconnect the flex cable connector from the rear of the DVD-ROM drive. See
FIGURE 3-23 and FIGURE 3-24

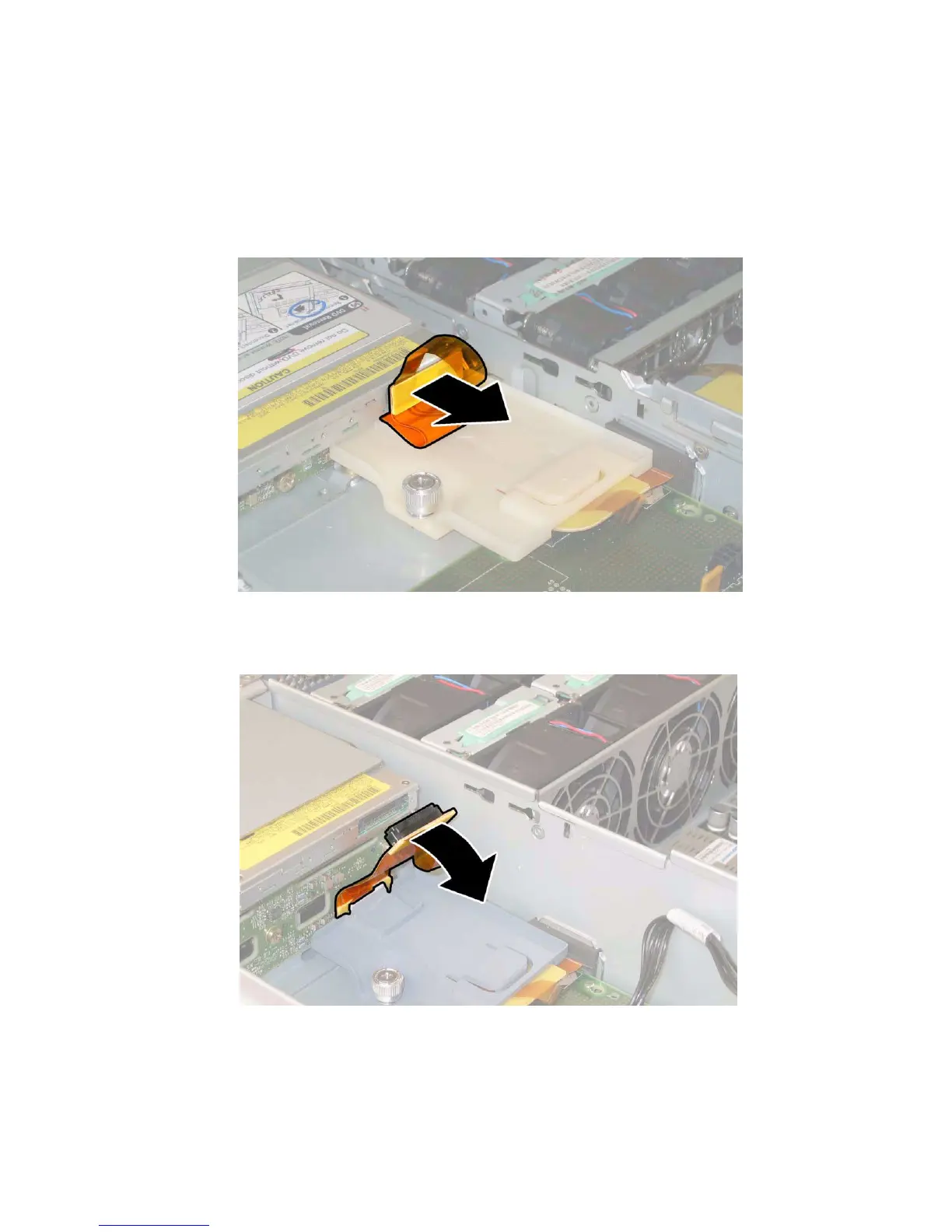

FIGURE 3-23 Disconnecting the DVD-ROM Drive Flex Cable Connector (Sun Fire X4100
Server Shown)
FIGURE 3-24 Disconnecting the DVD-ROM Drive Flex Cable Connector (Sun Fire X4200
Server Shown)
