Sun Microsystems Sun Fire X4100 - Page 133

Chapter 3 Maintaining the Sun Fire Servers 3-43
8. Lift the board straight up to remove it from the system.

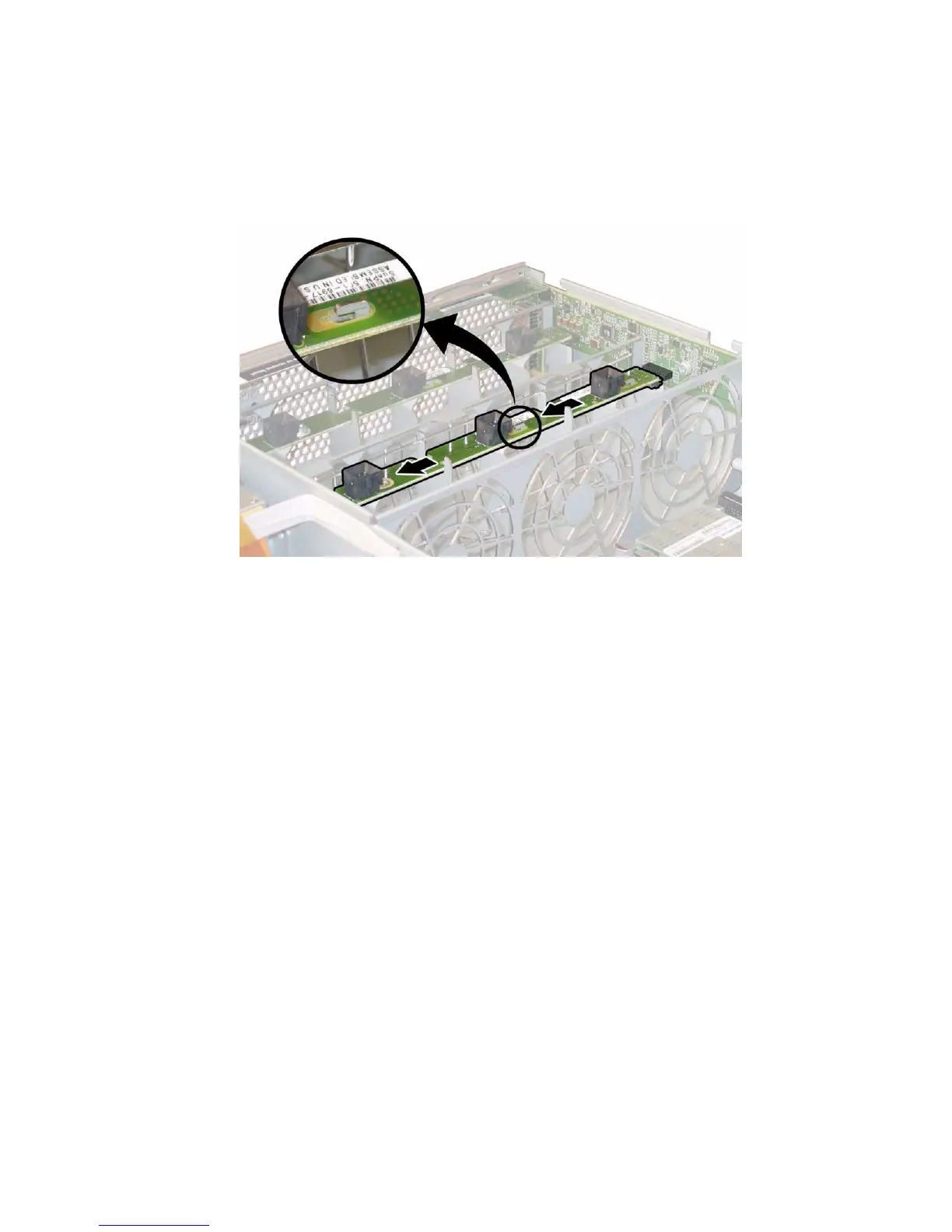

FIGURE 3-33 Releasing the Fan Connector Board
Installation is the reverse of this procedure. When reinstalling screws, tighten to
7 in-lbs (0.8 Nm) using an adjustable torque driver.
