3-68 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009

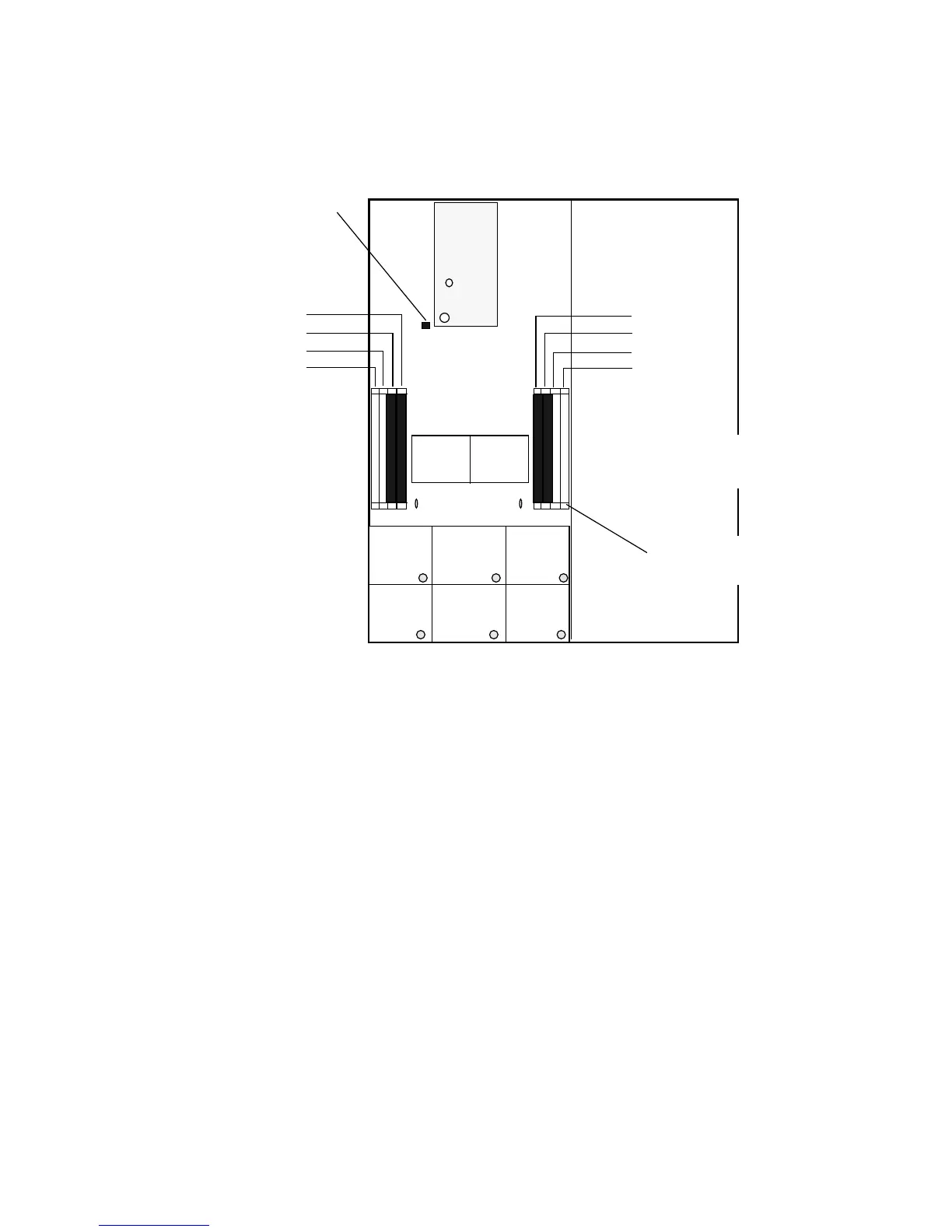

FIGURE 3-52 DIMM Slot Numbering and Pairing – Sun Fire X4100 M2/X4200 M2
5. Before continuing with the next step, review “DIMM Population Rules” on
page 3-61.
6. To remove a DIMM:
a. Rotate both DIMM slot ejectors outward as far as they will go. The DIMM is
partially ejected from the socket. See
FIGURE 3-53.
b. Carefully lift the DIMM straight up to remove it from the socket.
FT1
FM0
FT1
FM1
FT1
FM2
FT0
FM0
FT1
FM1
FT1
FM2
CPU1 CPU0
Front panel of server
Back panel of server
DIMM SW2
DIMM fault LEDs
in DIMM ejector levers
Pair 0 = DIMM 0 + DIMM 1
Pair 1 = DIMM 2 + DIMM 3
DIMM 0
DIMM 1
DIMM 2
DIMM 3
DIMM 0
DIMM 1
DIMM 2
DIMM 3
