Appendix E Connector Pinouts E-3

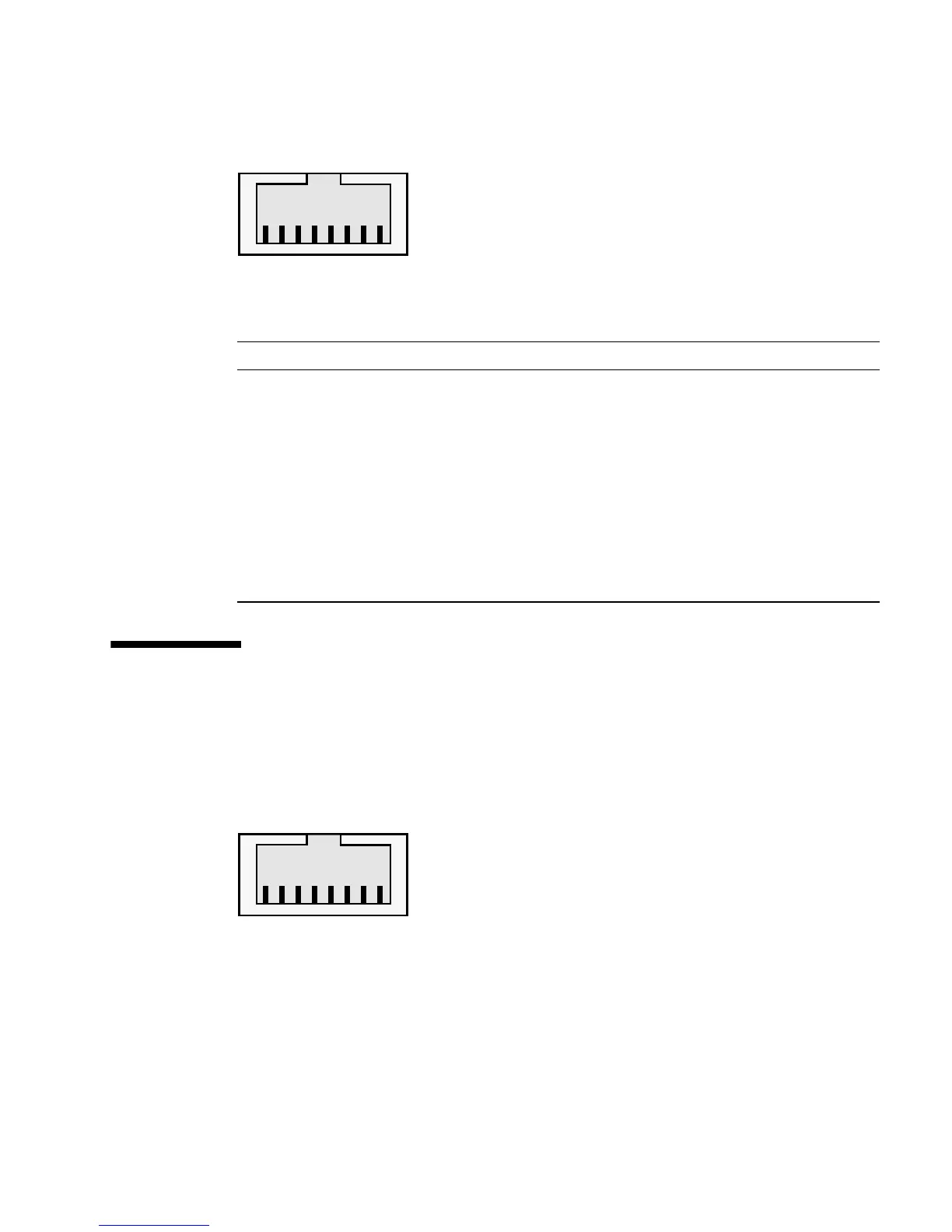

FIGURE E-3 10/100BASE-T Connector
E.4 10/100/1000BASE-T Connector
The RJ45 10/100/1000BASE-T connector pins and their corresponding descriptions
are shown in the figure and table in this section.
FIGURE E-4 10/100/1000BASE-T Connector
TABLE E-3 10/100BASE-T Connector Pinouts
Pin Number Pin Name Description
1 TX+ Positive side of transmit data
2 TX- Negative side of transmit data
3 RX+ Positive side of receive data
4 NC No connect
5 NC No connect
6 RX- Negative side of receive data
7 NC No connect
8 NC No connect
81
81
