E-4 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
E.5 VGA Video Connector
The VGA video connector pins and their corresponding descriptions are shown in
the figure and table in this section.

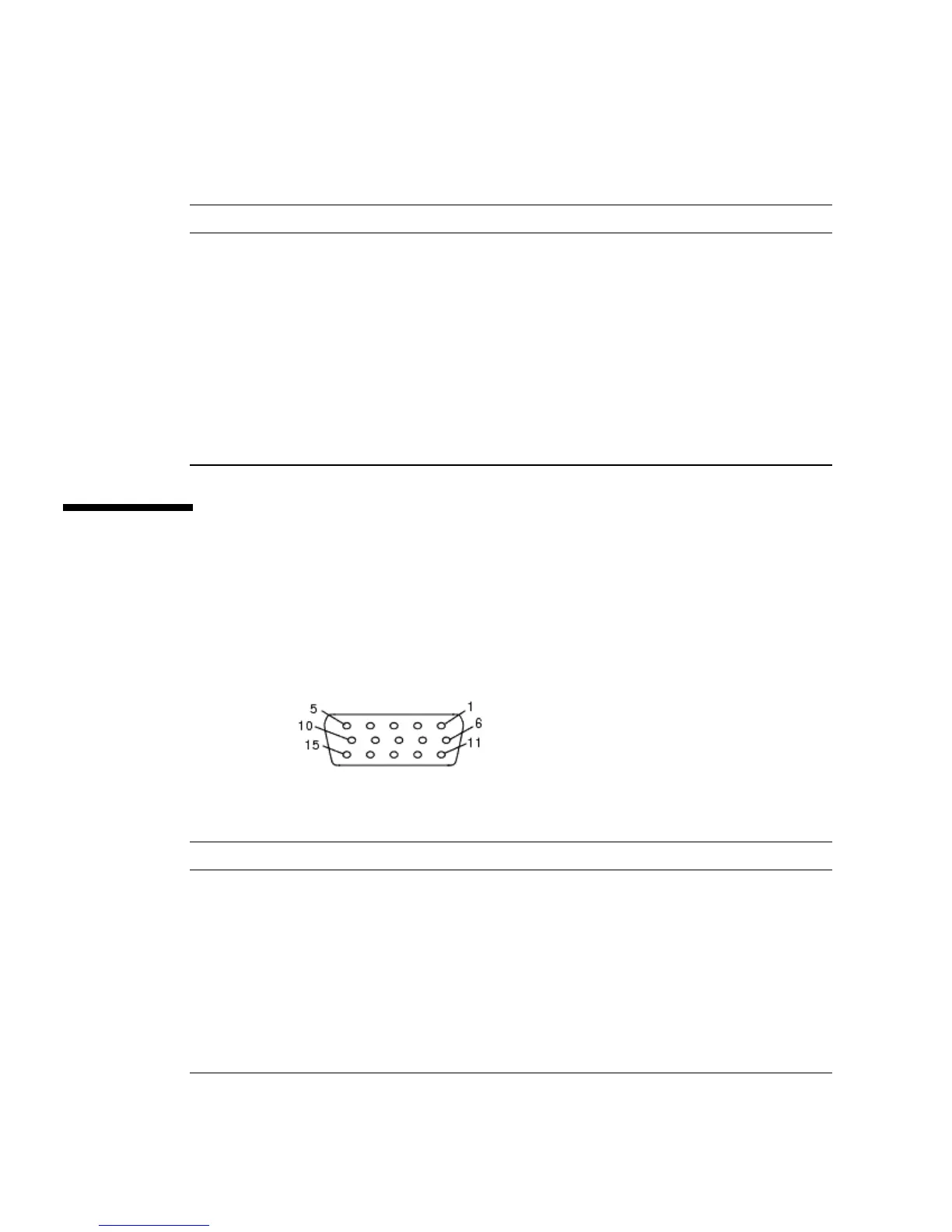

FIGURE E-5 VGA Video Connector
TABLE E-4 10/100/1000BASE-T Connector Pinouts
Pin Number Pin Name Description
1 TP0+ Positive side of data pair 0
2 TP0- Negative side of data pair 0
3 TP1+ Positive side of data pair 1
4 TP2+ Positive side of data pair 2
5 TP2- Negative side of data pair 2
6 TP1- Negative side of data pair 1
7 TP3+ Positive side of data pair 3
8 TP3- Negative side of data pair 3
TABLE E-5 VGA Video Connector Pinouts
Pin Number Pin Name Description
1 RED Red video
2 GRN Green video
3 BLU Blue video
4 ID2 ID2 (no connect)
5 GND Ground
6 R_GND Red video return (ground)
7 G_GND Green video return (ground)
