E-12 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
E.9 Flex Cable DVD-ROM Drive Connector
The flex cable DVD-ROM drive IDE connector pins and their corresponding
descriptions are shown in the figure and table in this section.

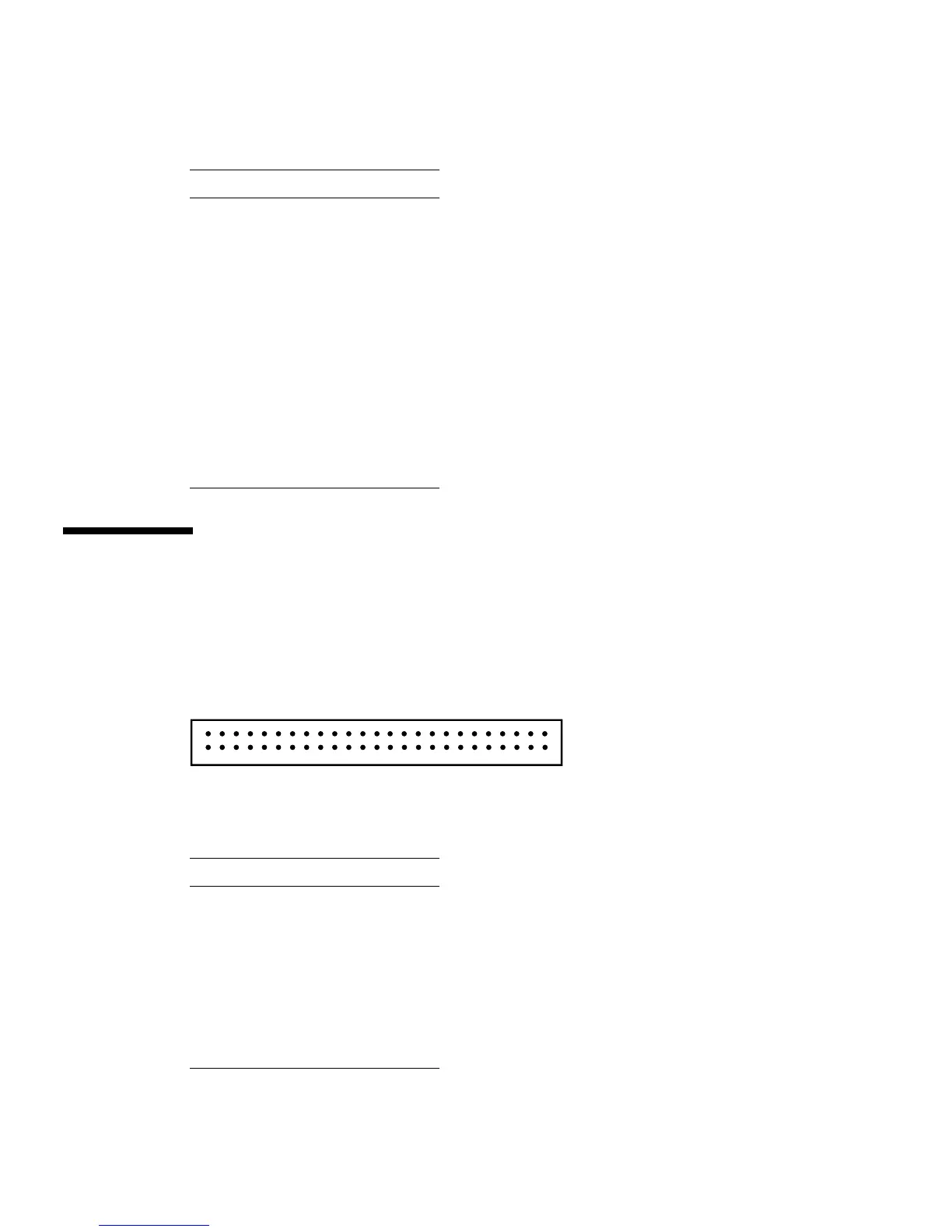

FIGURE E-9 Flex Cable DVD-ROM Drive IDE Connector
17 SAS_FAN_LED_L
18 PS0_VIN_GOOD
19 No connect
20 PS0_POWEROK
21 GND
22 FUSED_12V
23 GND
24 FUSED_12V
25 GND
26 FUSED_12V
TABLE E-9 Flex Cable DVD-ROM Drive IDE Connector Pinouts
Pin Number Signal Name
1 Audio L-CH
(not supported)
2 Audio R-CH
(not supported)
3 Audio Ground
4 Ground
5 RESET_L
TABLE E-8 Flex Cable PDB Connector Pinouts (Continued)
Pin Number Signal Name
