Appendix E Connector Pinouts E-17
E.12 Power Supply Connector
The power supply connector pins and their corresponding descriptions are shown in
the figure and table in this section.

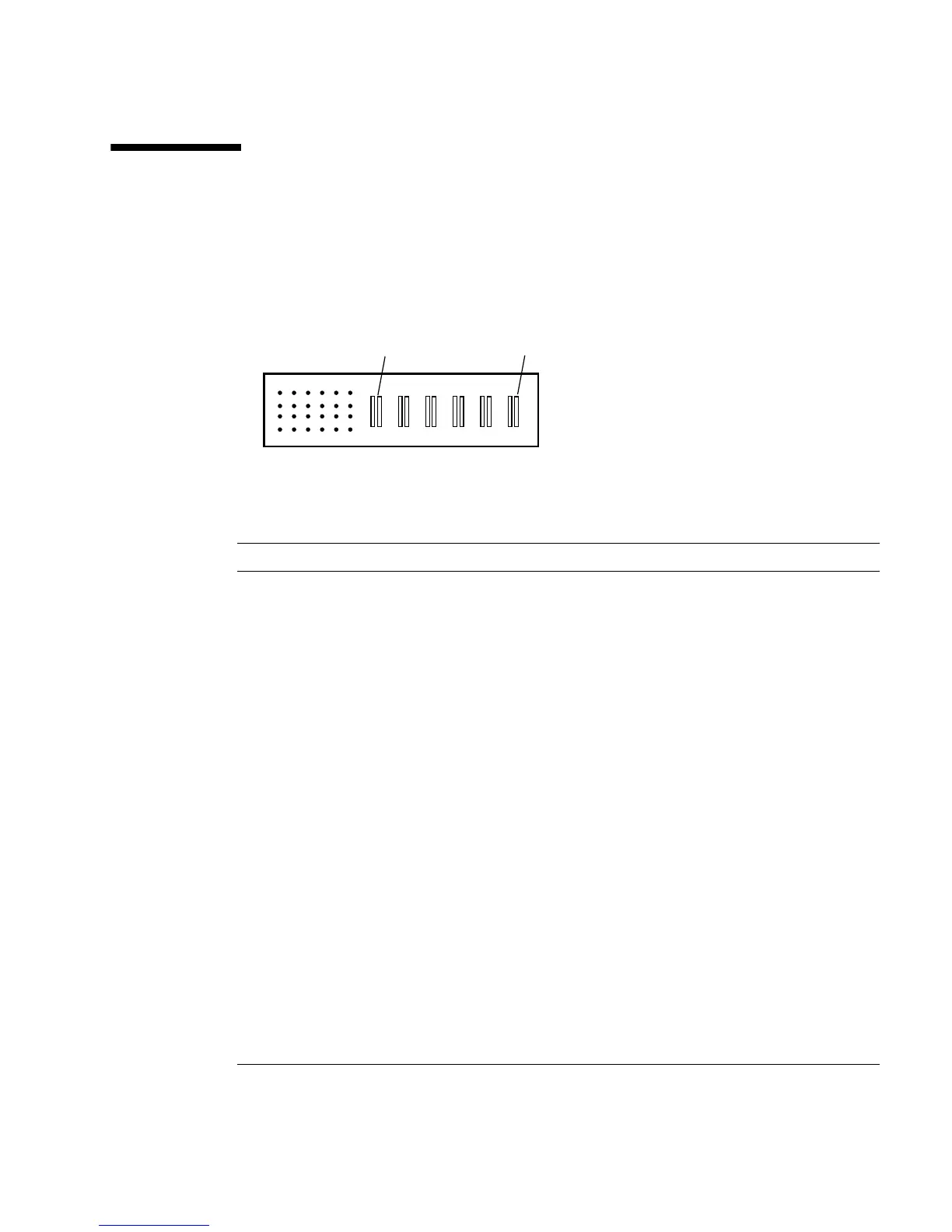

FIGURE E-12 Power Supply Connector
TABLE E-12 Power Supply Connector Pinouts
Pin Number Pin Name Description
PB RH1 +12V RET Main Power Return
PB RH2 +12V RET Main Power Return
PB RH3 +12V RET Main Power Return
PB RH4 +12V +12 V Power Output
PB RH5 +12V +12 V Power Output
PB RH6 +12V +12 V Power Output
A1 PS_KILL Turns off both main and standby outputs
A2 Current Share Current share signal
A3 Return Ground
A4 +3.3V SB +3.3 V Standby Output
A5 PS A0 EEPROM Address Bit 0 Input
A6 +3.3V SB +3.3 V Standby Output
B1 Return Ground
B2 Fan_Cntl Analog fan control voltage input
B3 Return Ground
B4 +3.3V SB +3.3 V Standby Output
B5 SDA EEPROM Serial Data I/O
PB RH1
PB RH6
A
B
C
D
1 2 3 4 5 6
