F.3 Pinouts of the PORT1, PORT2, PORT3, PORT4 and
WAN connectors

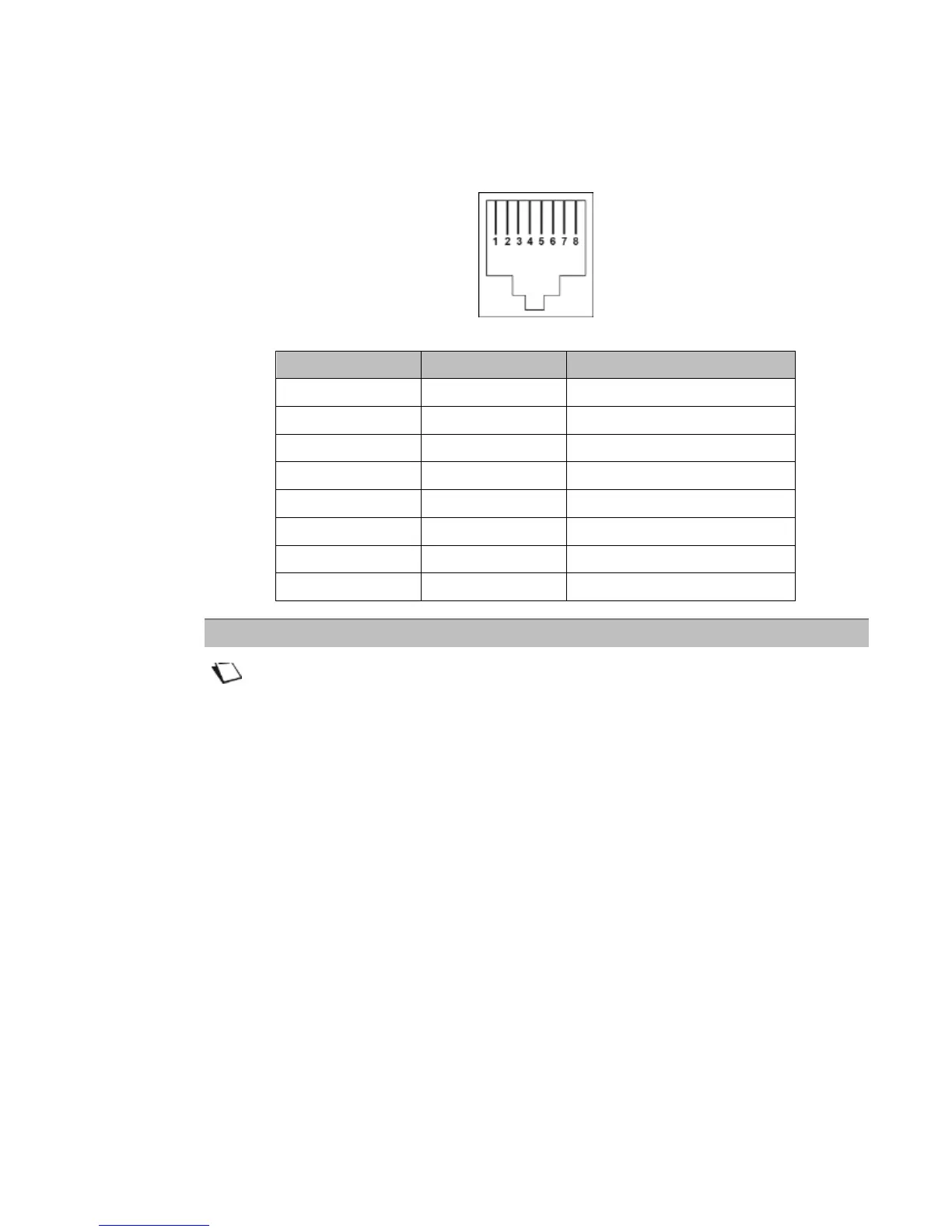

The Ethernet interface is connected to the equipment using a RJ45 fixed connector (8 pins).
Contact No
Signal
Meaning
1
TXD+
(+) Emission to terminal
2
TXD-
(-) Emission to terminal
3
RXD+
(+) Reception of terminal
4
NC
Not connected
5
NC
Not connected
6
RXD-
(-) Reception of terminal
7
NC
Not connected
8
NC
Not connected
The Ethernet port is self-detecting. You can use either straight or crossed cables.
An emission or reception signal is detected automatically.
