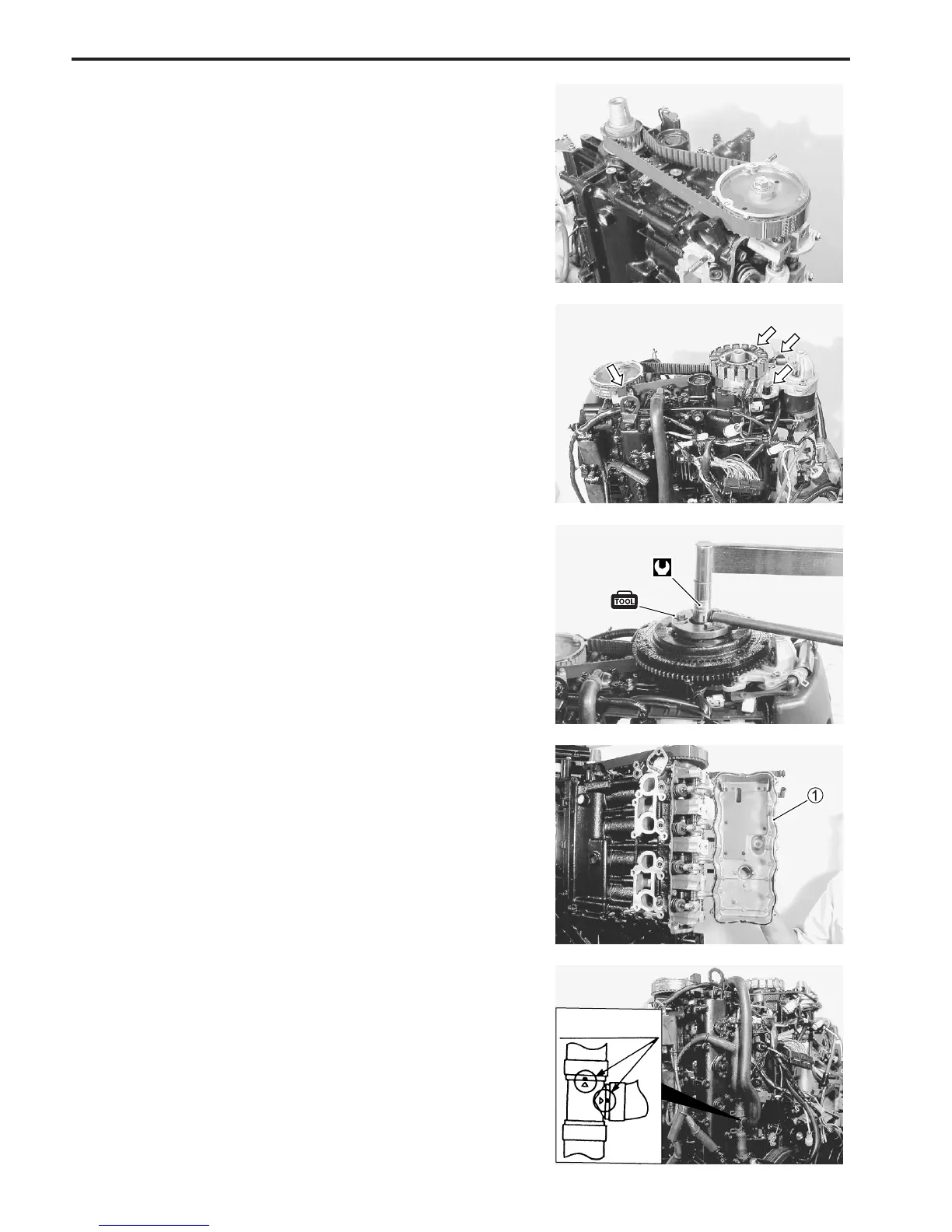

6-12 POWER UNIT
FLYWHEEL
1. Install the battery charge coil. (See the page 4-5.)
2. Install the CKP sensors and the CMP sensor. (See the page
3-52.)
3. Connect the MAP sensor wire.
TIMING BELT
Install the timing belt, the cam pulley and the belt tensioner.
(See the page 2-12.)
# Cam pulley bolt: 60 N·m (6.0 kg-m, 43.5 lb-ft)
4. Install the flywheel. (See the page 3-52.)
# Flywheel bolt: 190 N
.
m (19.0 kg-m, 137.5 lb-ft)
$ 09930-48720: Flywheel holder
CYLINDER HEAD COVER
1. Install the gasket 1 on the cylinder head cover.
2. Tighten the six bolts.
# Cylinder head cover bolt: 10 N·m (1.0 kg-m, 7.0 lb-ft)
NOTE:
Before installing the cylinder head cover, adjust the valve clear-
ance. (See the page 2-9.)
WATER HOSE
Install the water hoses.
NOTE:
Align the mark on the each hose with the marks on the 3-way
joint as shown.
Alignment marks
