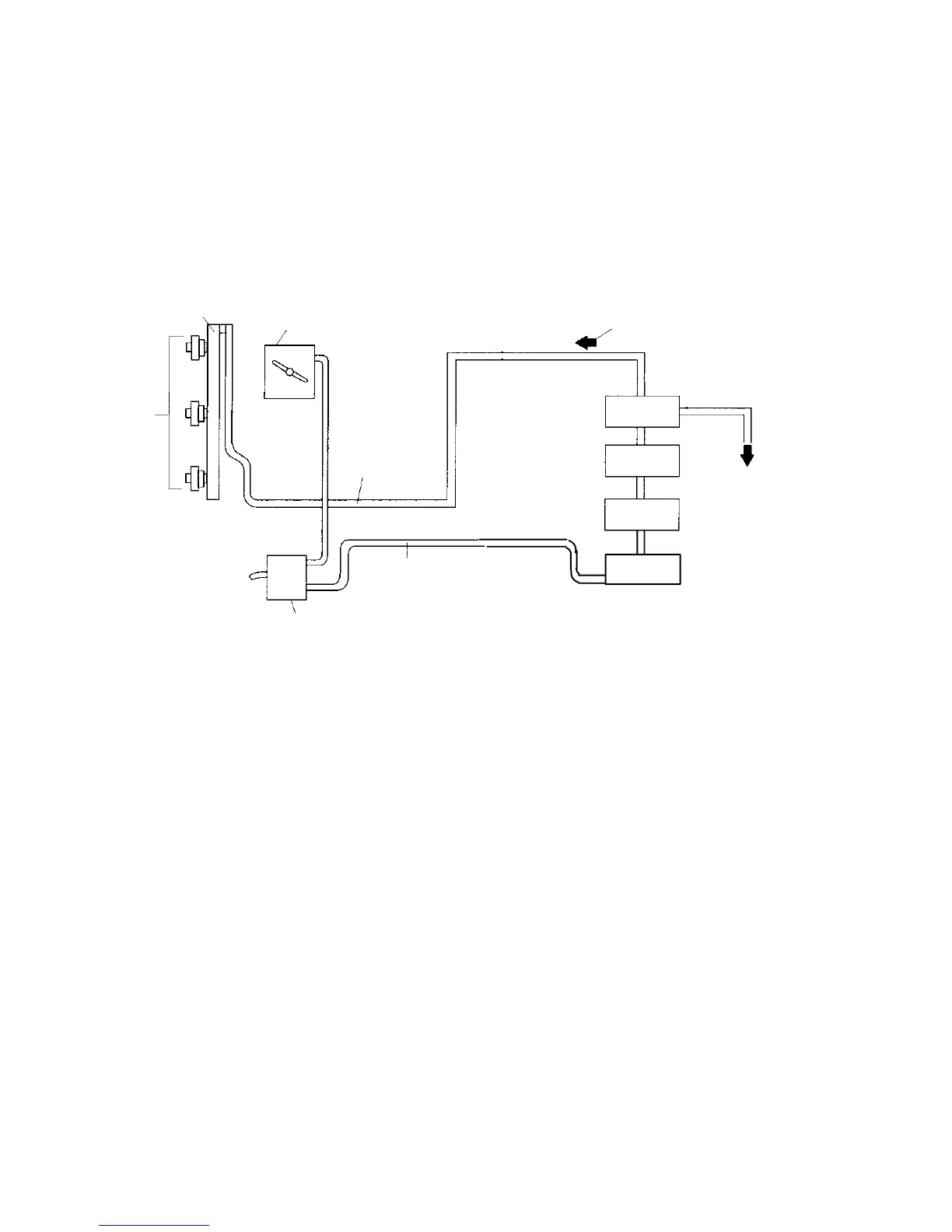

FUEL SYSTEM
The fuel system comprises of the fuel tank, fuel pump, fuel filter, fuel pressure regulator, delivery pipe, injectors and
fuel feed line.
The fuel in the fuel tank is drawn up by the fuel pump, filtered by the fuel filter, transported to the delivery pipe, and
injected by the injectors.
The fuel is filtered and subjected to pressure adjustment before being sent to the delivery pipe.
Excess fuel created by fuel pressure adjustment by the fuel pressure regulator is returned to the fuel tank.
Fuel vapor produced from the fuel tank passes through the fuel vapor line and is introduced into a charcoal canister.
DELIVERY PIPE
INJECTORS
THROTTLE BODY
FEED LINE
CANISTER
VAPOR LINE
FUEL PRESSURE STABILIZING
FUEL PUMP ASSEMBLY
FUEL
PRESSURE
REGULATOR
FUEL FILTER
FUEL PUMP
RETURN
FUEL TANK
