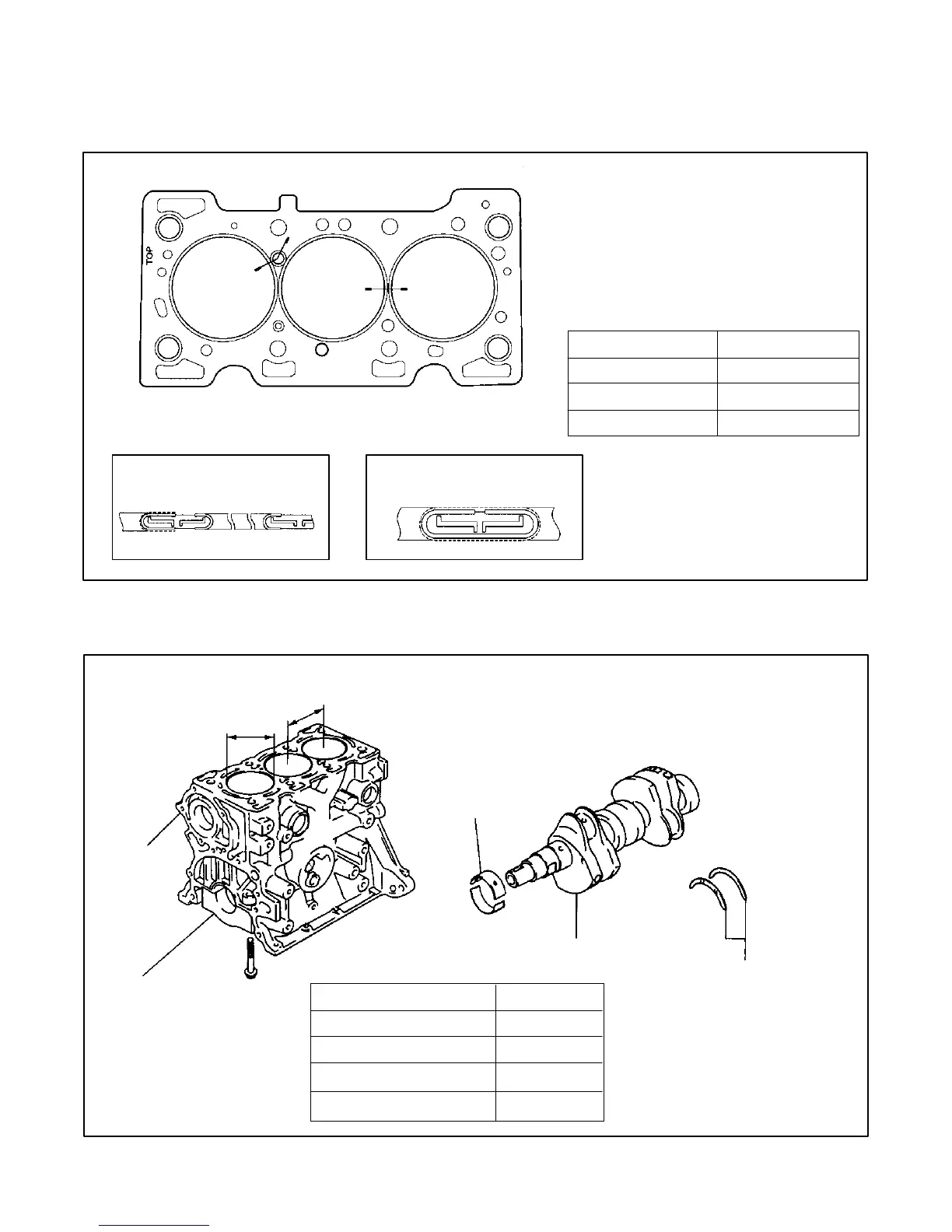

CYLINDER HEAD GASKET
The head gasket uses carbon graphite as a parent material and the bore areas are made of stainless steel and given
improved durability.
Number of cylinders
Number of bearings
copper
A–A’ section
B–B’ section
Material
Parent material
Bore sections
Oil holes
carbon graphite
stainless steel
CYLINDER BLOCK
The cylinder block is made of a special cast iron and has a compact structure with no sleeves and a bore pitch
of 72 mm.
Cylinder Block
Crankshaft Bearing Cap
Journal Bearing
Crankshaft
Thrust Bearing
Specifications
Bore diameter (mm): d
Stroke (mm)
Pitch (mm): p
65.0
66.0
72.0
3
4
AA
BB
