Suzuki F6A - Fuel Pump

133
Fuel Pump
Removal
1) Disconnect negative battery cable.
2) Remove fuel filler can to release fuel vapor pres-
sure in the fuel tank. After releasing, reinstall the
cap.
3) Disconnect fuel pump lead wires at the fuel pump.
NOTE:
There is a positive (+) and negative (–) wire,
and a (+) positive indicator on the fuel pump.
4)Disconnect fuel inlet and outlet hose from fuel
pump.
5) Remove fuel pump.

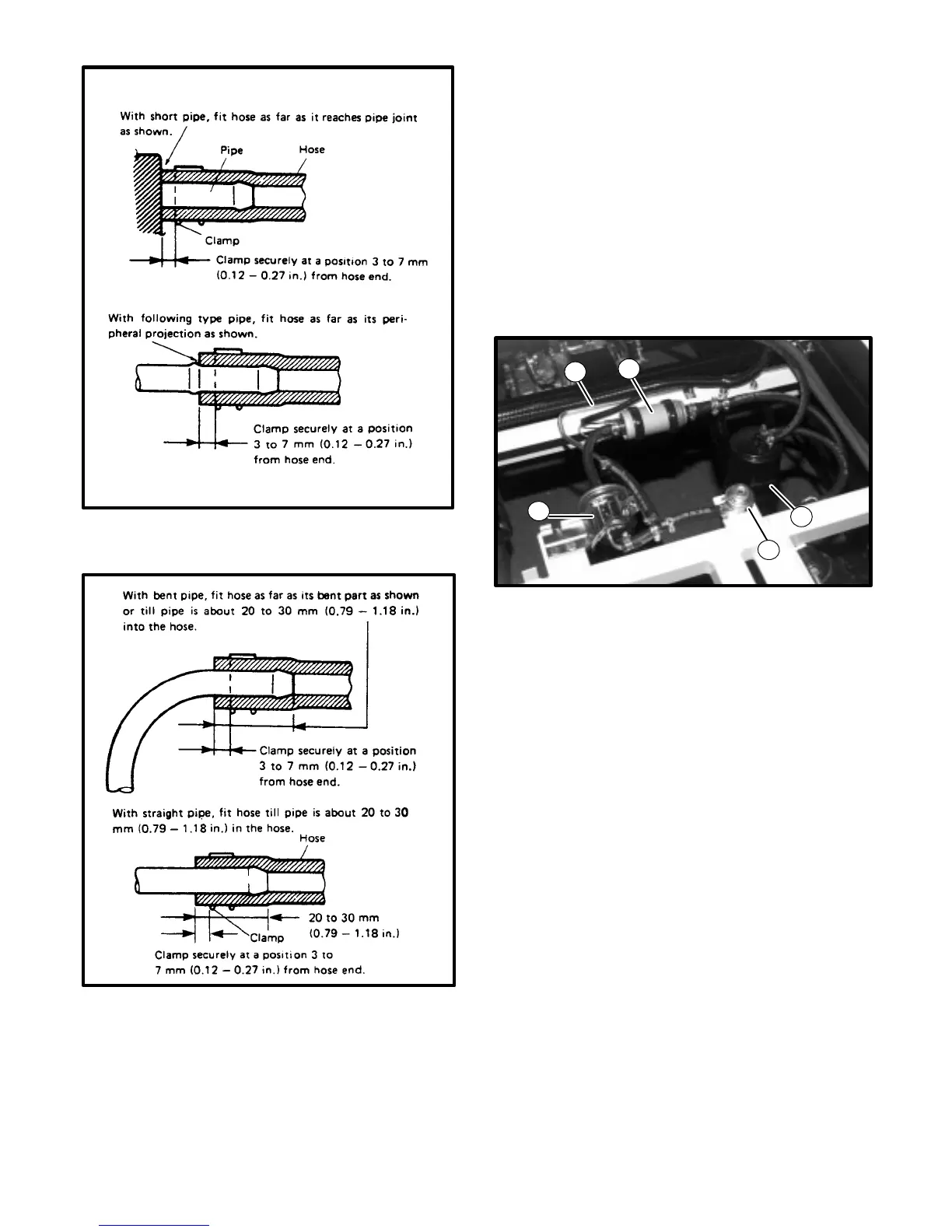

2
1
3
4
5
1. Fuel Filter
2. Fuel Line
3. Fuel Pump
4. Carbon Canister
5. Regulator
Installation
Reverse removal procedure for installation using care for
the following.
 Make sure of proper hose connection
Fuel Filter
Removal
1) Remove negative battery cable.
2) Remove fuel filler cap from fuel filler neck to release
fuel vapor pressure in fuel tank. After releasing, reinstall
cap.
3) Hoist vehicle.
4) Place fuel container under fuel filter.
5) Disconnect inlet and outlet pipes from fuel filter by
using two wrenches.
6) Remove fuel filter from body.
