84
NOTE:
Valve clearance is adjusted after all parts are
assembled. So it is not adjusted at this point. Leave
rocker arm adjusting screw as loose as possible.
Intake Manifold and Carburetor
1) Install intake manifold gasket to cylinder head. Use
new gasket.
NOTE:
Clean cylinder head mating surface with gasket
before installation.
2) Install intake manifold with carburetor to cylinder head.
3) Tighten manifold bolts and nuts to specified torque.
Tightening torque for manifold
bolts and nuts
18–28 N–m
1.8–2.8 kg–m
13.5–20.0. lb–ft

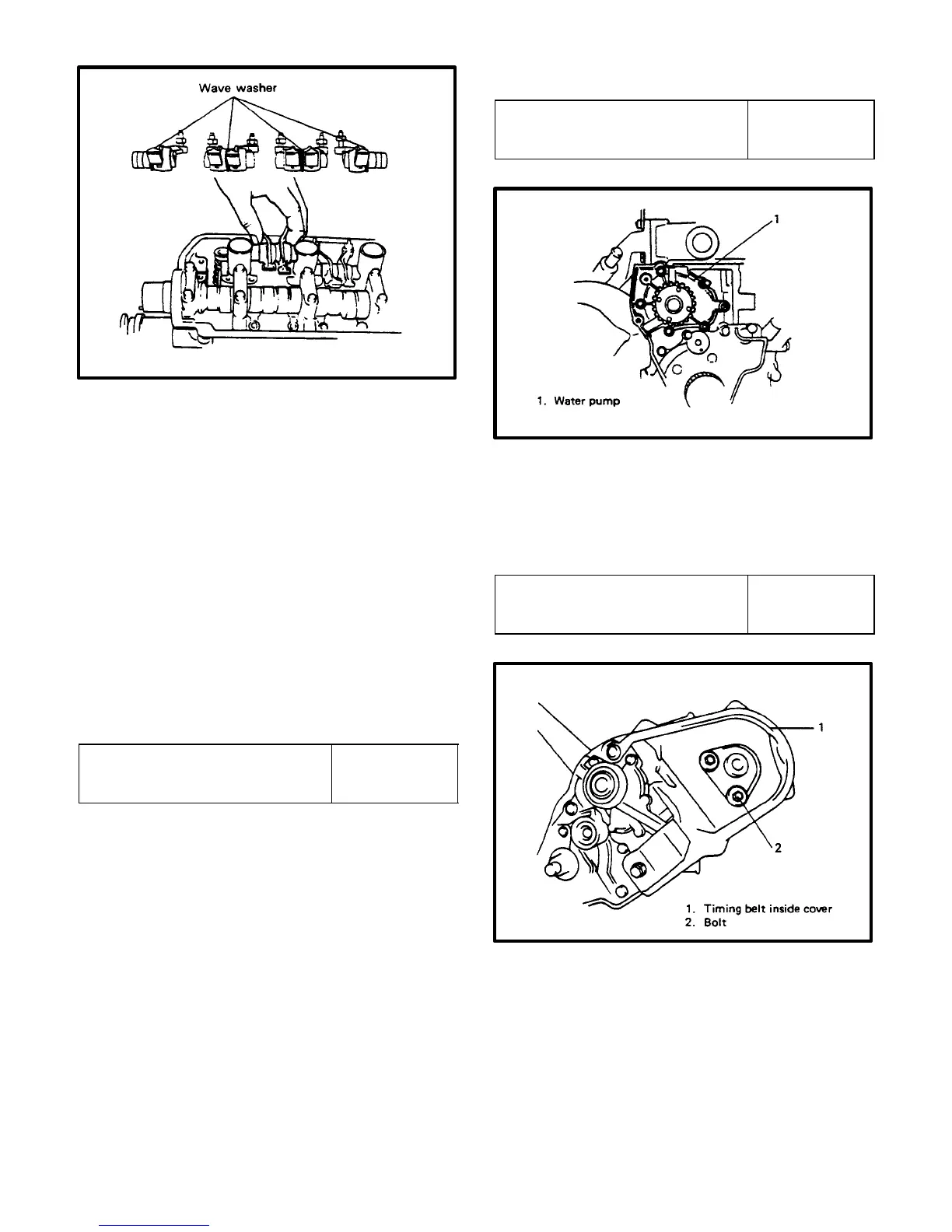

Water Pump
1) Install water pump gasket to cylinder block. Use new
gasket.
NOTE:
Clean cylinder block mating surface with gasket
before installation.
2) Install water pump to cylinder block.
3) Tighten bolts and nuts to specified torque.
Tightening torque for water
pump bolts and nuts
9–12 N–m
0.9–1.2 kg–m
7.0–8.5 lb–ft
Timing Belt Inside Cover, Belt Pulleys, Tensioner,
Timing Belt and Outside Cover
1) Install timing belt inside cover.
Tightening torque for timing
belt inside cover bolt
9–12 N–m
0.9–1.2 kg–m
7.0–8.5 lb–ft
2) Install crankshaft timing belt, key and pulley. Refer to
figure below for proper installation of timing belt pulley.
To Next Page
