OIL PUMP
The oil pump uses a trochoid system, and is driven directly by engagement with the width across the flat of the
crankshaft and the inner rotor.

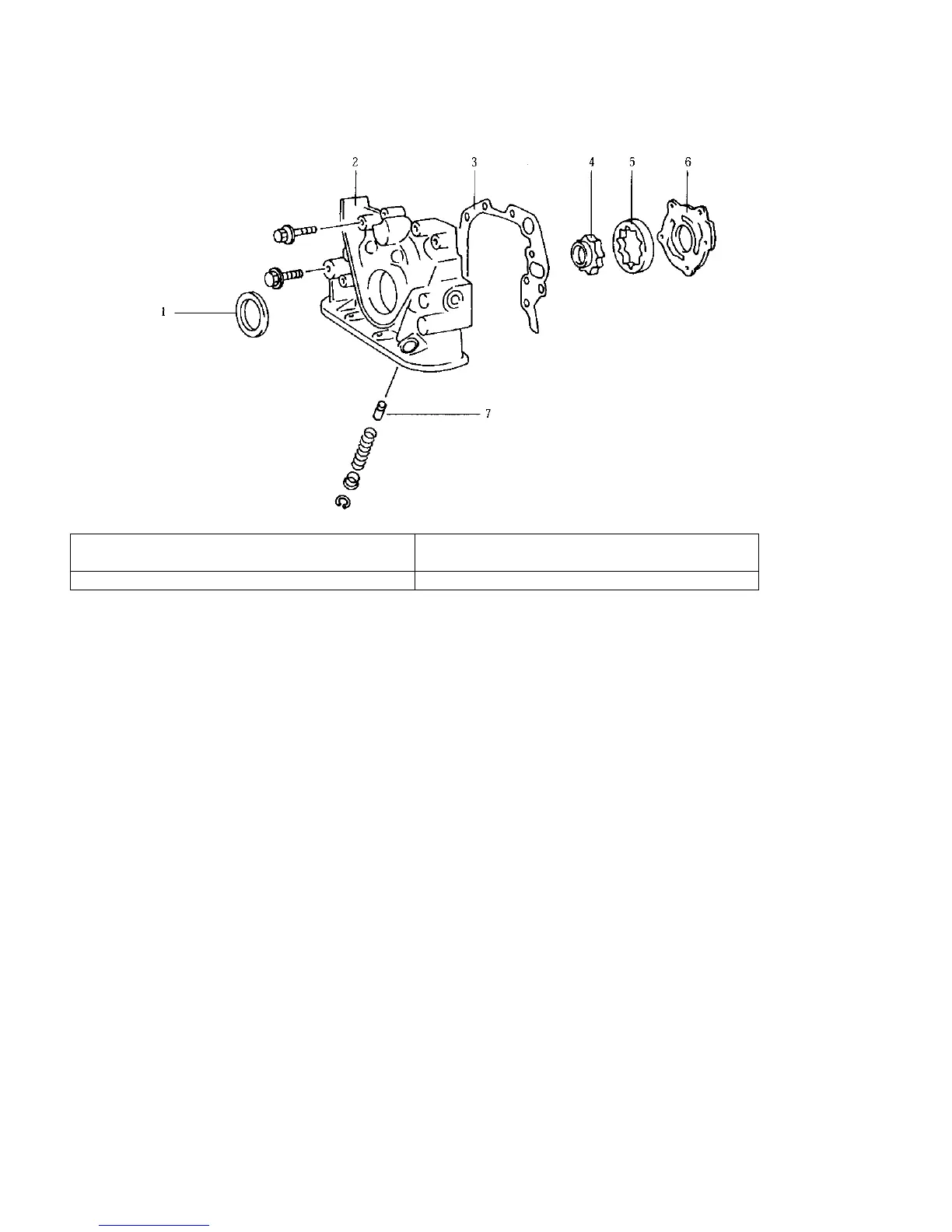

1. Oil seal
2. Oil pump case
3. Gasket
4. Inner rotor
5. Outer rotor
6. Rotor plate
7. Relief valve
SPECIFICATIONS
Discharge pressure, discharge amount
(pump rotation speed 4000 rpm)
When 270 kPa {2.8 kgf/cm
2
}
14 L/min
Relief valve open pressure 290~370 kPa {2.8~3.6 kgf/cm
2
}
