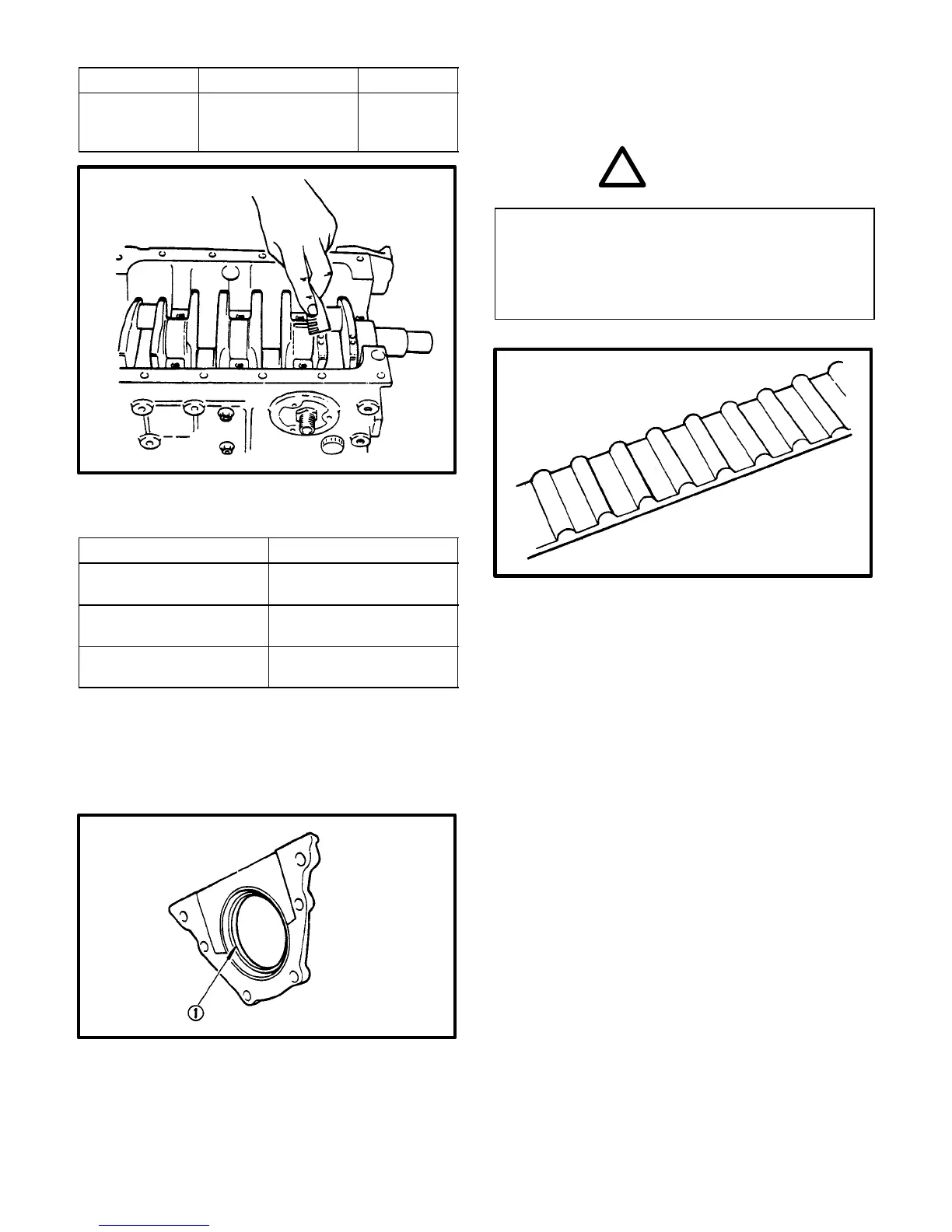

Item Standard Limit
Journal–to–
bearing clear-
ance
0.020–0.040 mm
(0.0008–0.0016 in.)
0.065 mm
(0.0026 in.)
4) If the limit is exceeded, re–grind the journals to the
undersize and use the undersize bearing.
Bearing size Journal diameter
Standard
43.982–44.00 mm
(1.7316–1.7322 in.)
0.25 mm undersize
(0.0098 in.)
43.732–43.750 mm
(1.7218–1.7224 in.)
0.50 mm undersize
(0.0196 in.)
43.482–43.500 mm
(1.7119–1.7125 in.)
Oil Seals
Carefully inspect the oil seals removed in disassembly,
examining the lip portion (1) of each oil seal for wear and
damage. Use of new oil seals in reassembly is recom-
mended.
Timing Belt and Timing Pulleys
Inspect the belt and pulleys for wear, cracks and signs of
failure. Replace them as necessary.
CAUTION
!
Do not bend the belt. Keep away oil and
water from the belt. The belt must be kept
clean.
The pulleys and belt tensioner, too, must
be kept clean and free of oil and water.
