Suzuki F6A - Starter Motor Inspection; Inspect Armature

151

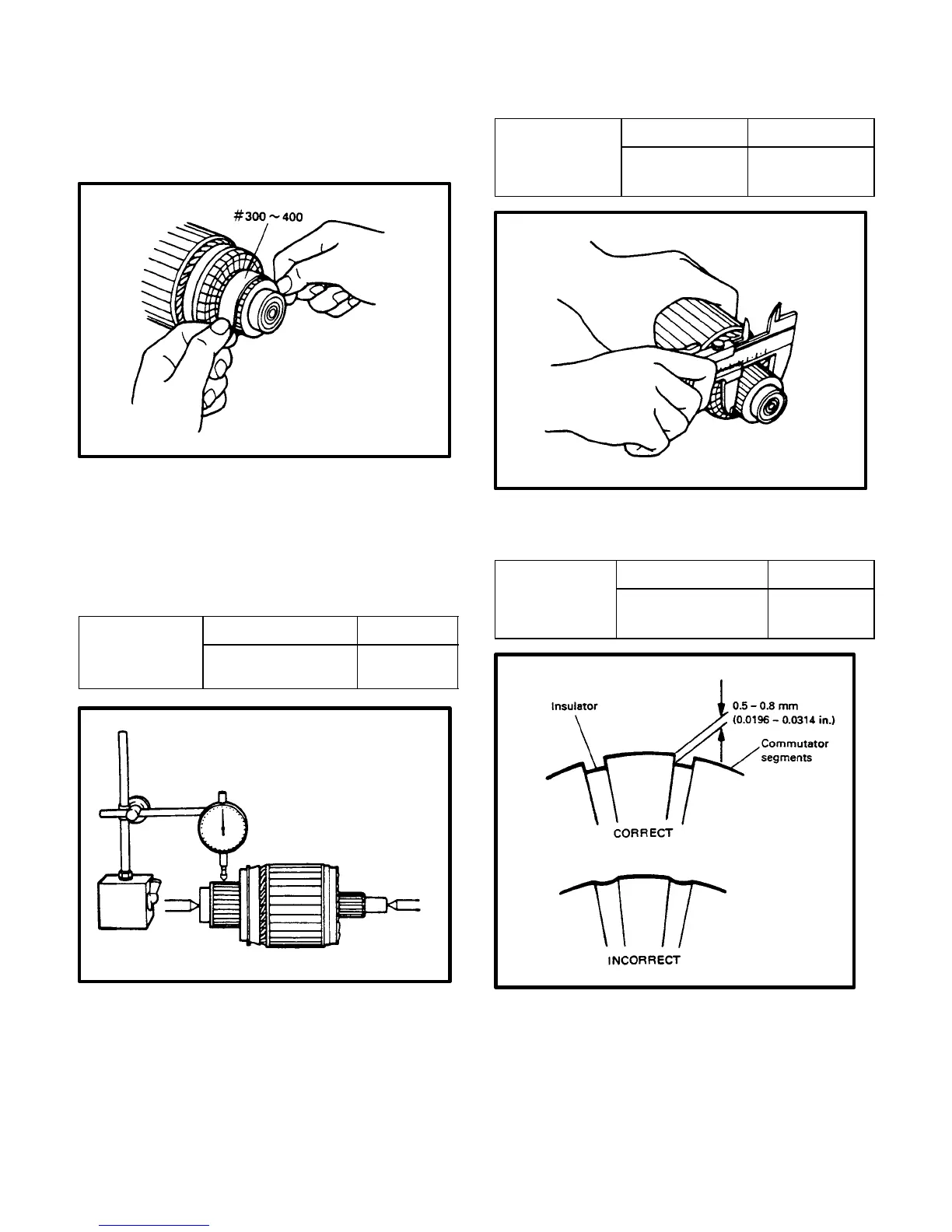

STARTER MOTOR INSPECTION
INSPECT ARMATURE
Inspect commutator for dirt or burn. Correct with emery
cloth or lathe, if necessary.
Check commutator for uneven wear. If deflection of dial
gauge pointer exceeds limit, repair or replace.
NOTE:
Below specification presupposes that armature is
free from bend. Bent shaft must be replaced.
Comm tator
Standard Limit
C
ommutator
out of round
0.05 mm (0.0019
in.) or less
0.4 mm
(0.015in.)
Inspect commutator for wear. If below the limit, replace
armature.
Commutator
Standard Limit
Commutator
outside
diameter
29.4 mm
(1.16 in.)
28.8 mm
(1.14 in.)
Inspect commutator for mica depth. correct or replace
if below the limit.
Ctt
Standard Limit
Commutator
mica depth
0.5–0.8 mm
(0.0196–0.0314 in.)
0.2 mm
(0.0078 in.)
