Tutorial

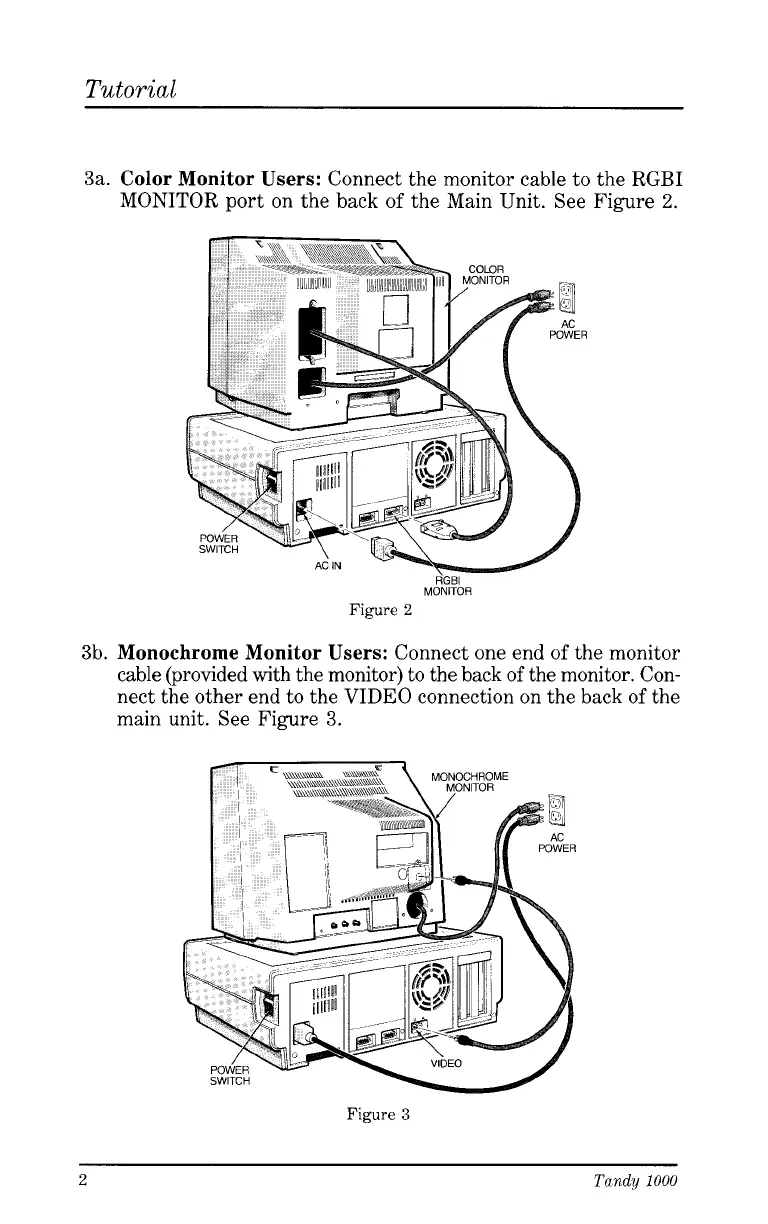

3a. Color Monitor Users: Connect the monitor cable to the RGBI
MONITOR port on the back of the Main Unit. See Figure 2.
3b.
RGBl
MONITOR
Figure 2
Monochrome Monitor Users: Connect one end of the monitor
cable (provided with the monitor) to the back
of the monitor. Con-
nect the other end to the
VIDEO connection on the back of the
main unit. See Figure
3.
Figure 3
2
Tandy 1000
