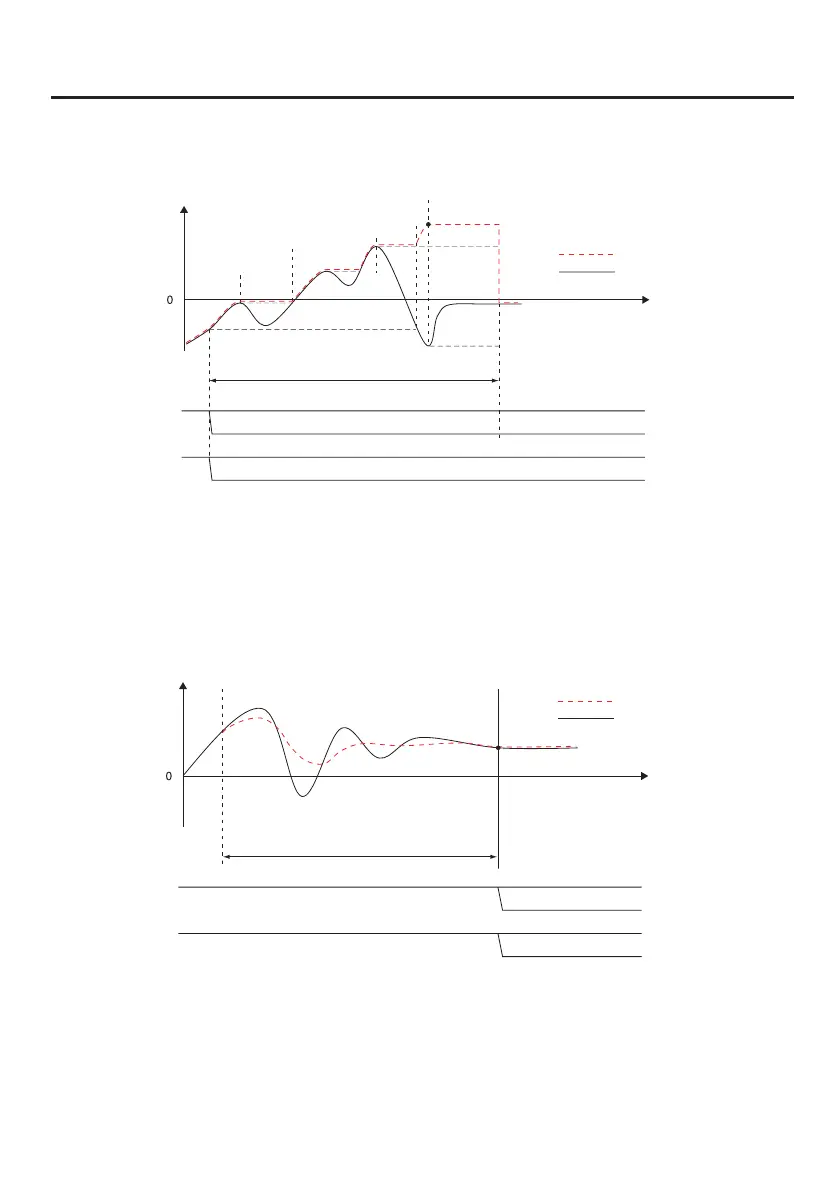

4-6-4-2-5. Peak to peak

With the point when the zone was entered as zero, the maximum difference between the maximum (peak) and maximum nega-

tive-direction (bottom) values for load becomes the hold value when measurement values are in the zone.

OFF

Load

Judgment output (load/displacement)

Zone interval

Time or displacement

Measurement value

Hold value

Hold point

P: peak value

B: bottom value

Judgment output (load/displacement)

If the hold point meets a HI or LO condition, this becomes ON.

If the hold point is within the management value range, judgment for this zone will be OK.

4-6-4-2-6. Average value

Calculation of the load average begins when measurement values enter the zone.

The average value of the final position in the zone will be held.

OFF

Load

Judgment output (load)
