CROSS PERSONAL: Service & maintenance manual - rev. 1.1
Page 6.37

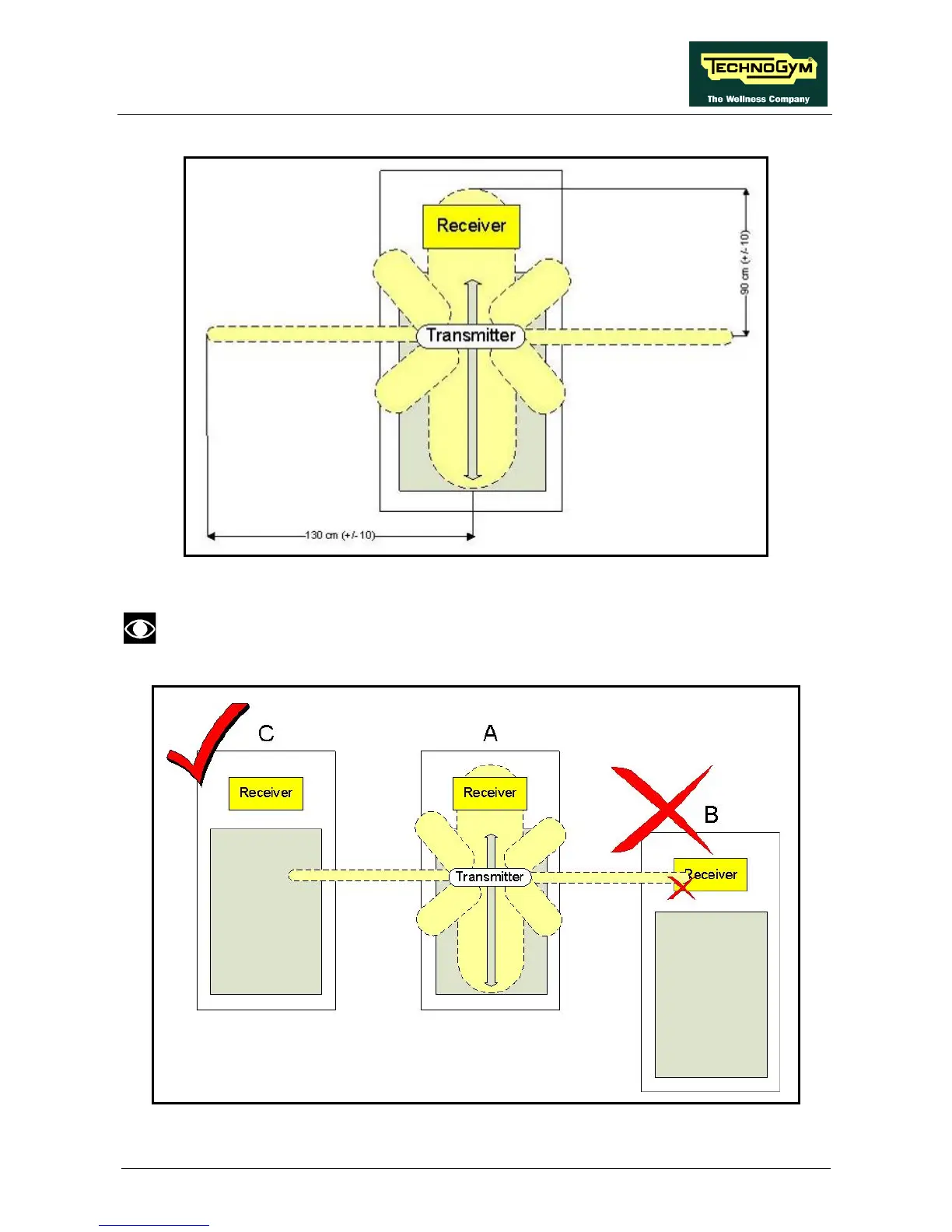

Figure 6-1
The active area of the transmitter is wider on the lateral side (130 cm) instead of the
front or the back side (90cm). Take care of the following diagram:
Figure 6-2
