SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.8

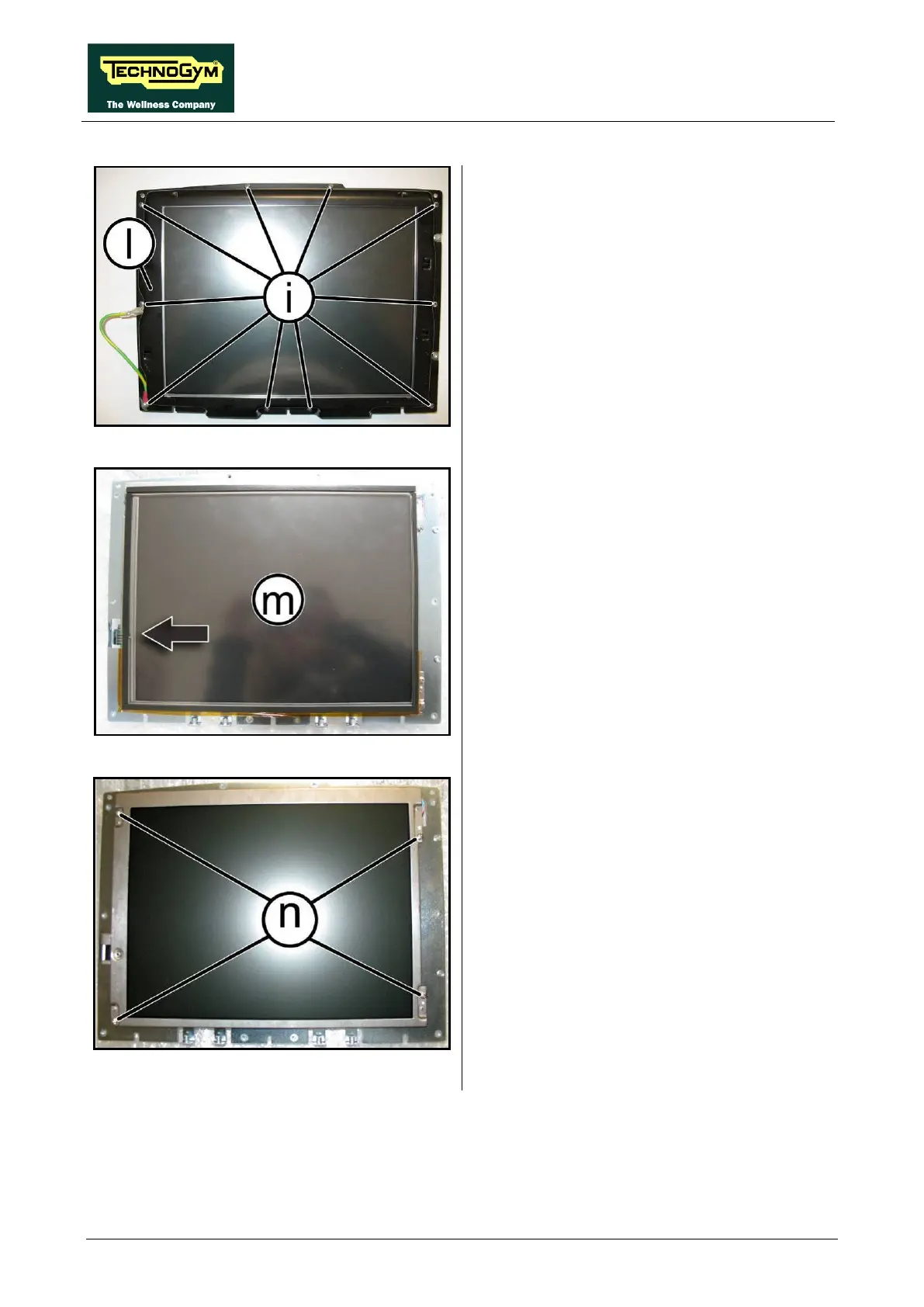

Figure 7.2-13
7. Back off the 10 screws (i)
Phillips screwdriver.
8. Remove the touch screen protection plate (l).
Figure 7.2-14
9. Shift touch screen (m)
attention to the cable which connect it to the
CPU Board.
Figure -7.2-15
10. Back off the 4 screws (n)
Phillips screwdriver.
11. Lift up and remove the LCD.
Continued in following page
→
