SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Page 8.1
8. ADJUSTMENT
8.1. BELT TENSION

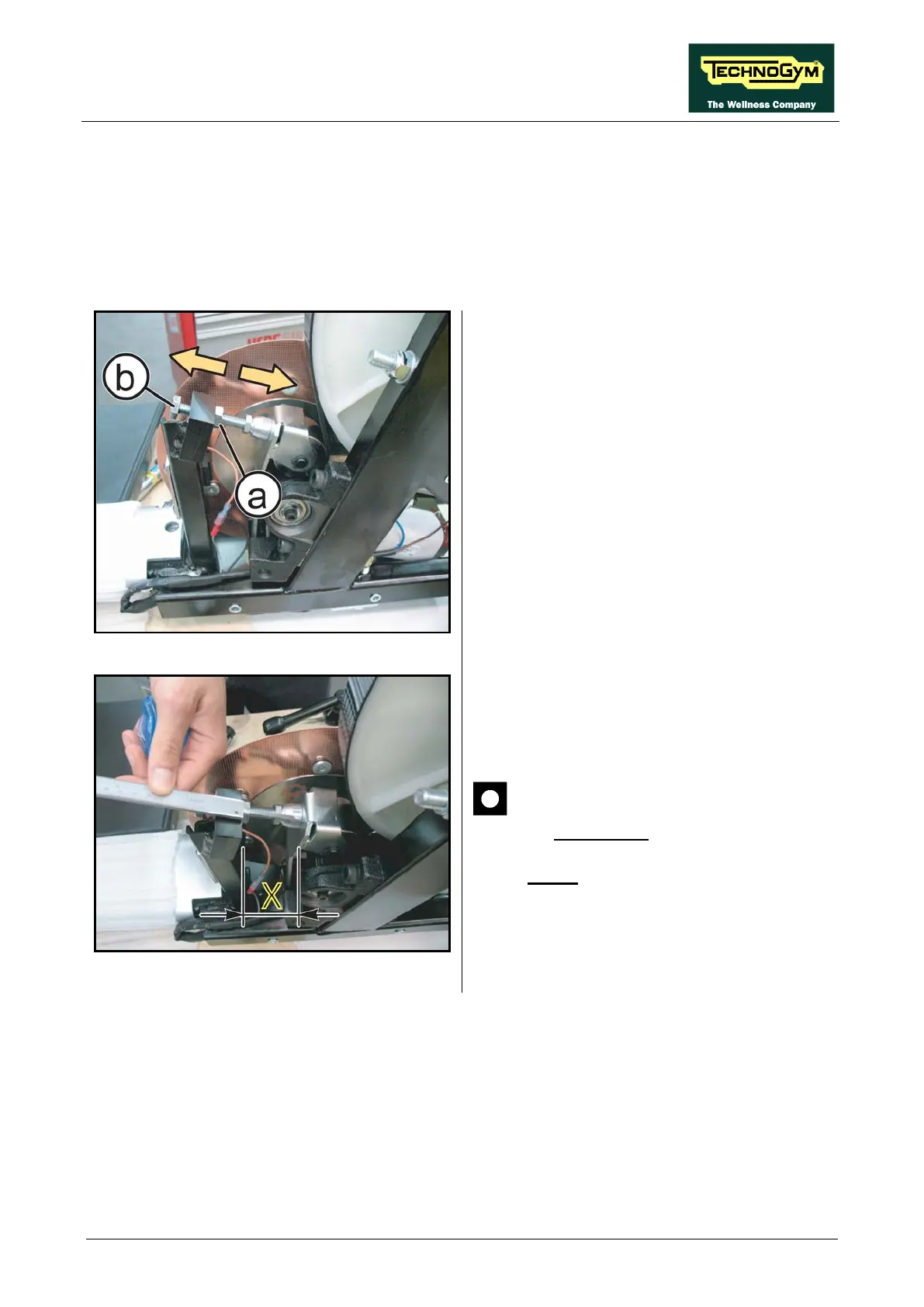

Figure 8.1-1
1. Back off the nut (a) with a 17mm wrench.
2. Adjust the tension acting on the screw (b)
with a 17mm wrench, as indicated by arrows
in figure.
3. Tighten the nut (a) again.
Figure 8.1-2
CAUTION: The right tension of belt must
be 230Hz±10Hz.
measure “X” should be approximately
51mm.
