SYNCHRO EXCITE 2009: Service & maintenance manual - rev. 5.2
Pagina 7.32

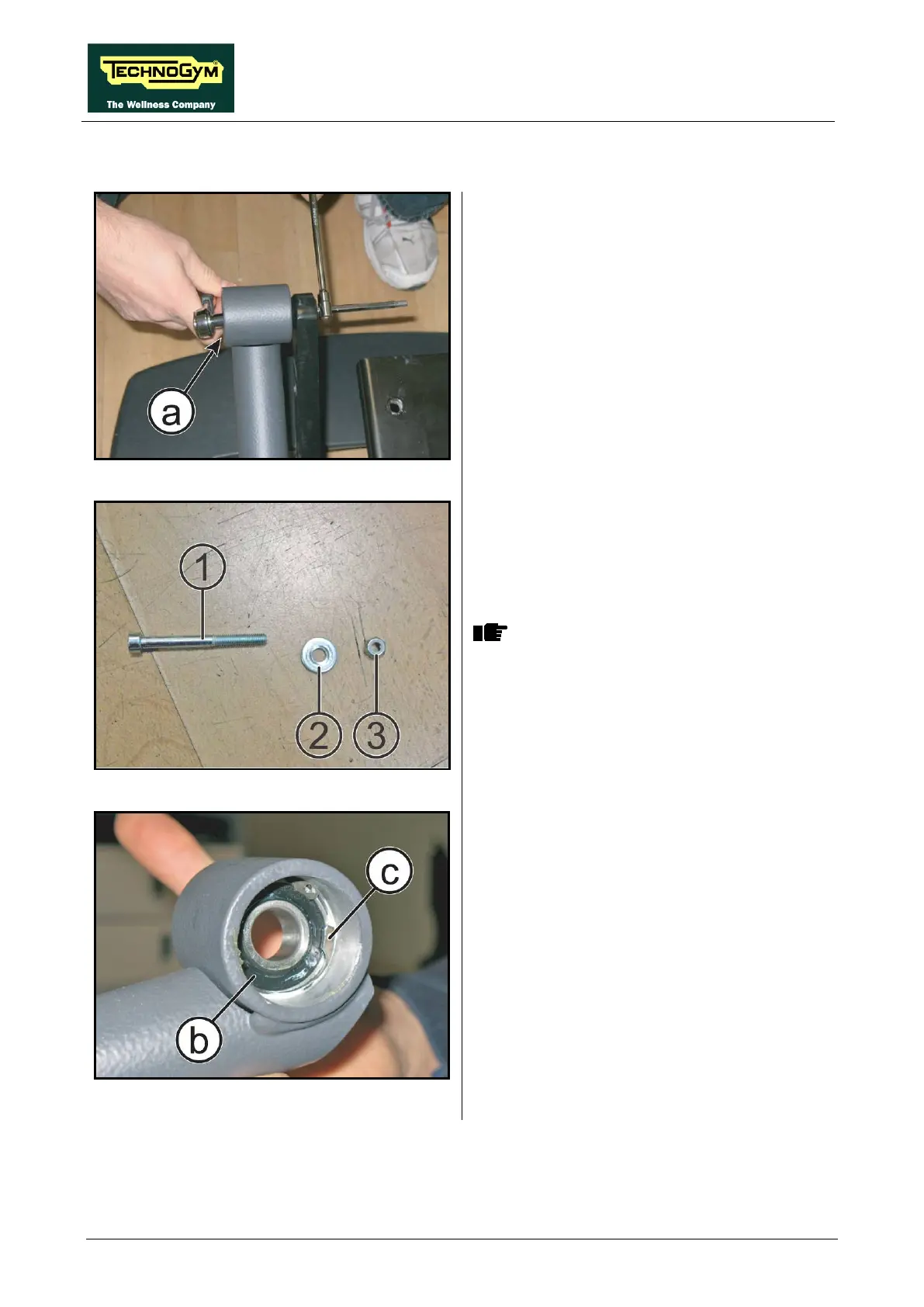

7.12. PLATFORM LEVER DISASSEMBLY
Figure 7.12-1
Carry out the operations described in
paragraph: 7.7. “Guards”.
1. Back off the screw (a), with a 10mm
hexagonal wrench, locking it on the opposite
side.
Figure 7.12-2
During the reassembly insert first the bolt
(1) and on the opposite side the washer (2)
and the nut (3).
Figure 7.12-3
2. If necessary, replace the bearing (b):
removing the internal circlip (c).
Continued in following page
→
